Abstraction for an Animation that can be applied to Views, Surfaces, or other objects. More...

#include <SAnimation.h>

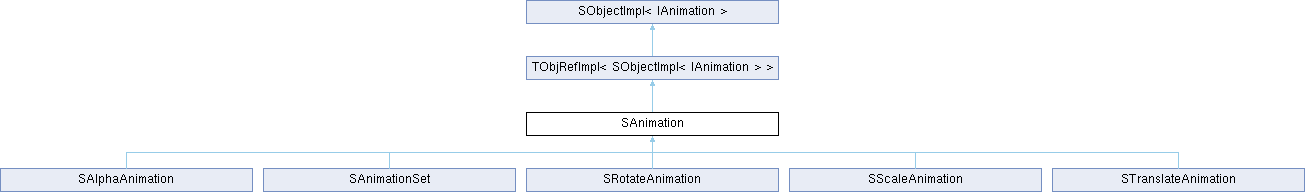

Inheritance diagram for SAnimation:

Public Member Functions
	SAnimation ()
	Default constructor for SAnimation.

	~SAnimation ()
	Destructor for SAnimation.

IAnimation *	clone () SCONST OVERRIDE
	Creates a new animation with a duration of 0ms, the default interpolator, with fillBefore set to true and fillAfter set to false.

void	copy (const IAnimation *src) OVERRIDE
	Copies the properties of another animation to this animation.

void	reset () OVERRIDE
	Resets the animation to its initial state.

void	cancel () OVERRIDE
	Cancels the animation.

void	setInterpolator (IInterpolator *i) OVERRIDE
	Sets the interpolator used by the animation to smooth the movement.

void	setDuration (long durationMillis) OVERRIDE
	Sets the duration of one animation cycle in milliseconds.

void	scaleCurrentDuration (float scale) OVERRIDE
	Scales the current duration of the animation.

void	setFillBefore (BOOL bFill) OVERRIDE
	Sets whether the animation transformation should be applied before the animation starts.

void	setFillAfter (BOOL bFill) OVERRIDE
	Sets whether the animation transformation should be applied after the animation ends.

BOOL	getFillBefore () SCONST OVERRIDE
	Gets whether the animation transformation should be applied before the animation starts.

BOOL	getFillAfter () SCONST OVERRIDE
	Gets whether the animation transformation should be applied after the animation ends.

void	setStartOffset (long offset) OVERRIDE
	Sets the delay in milliseconds after which the animation must start.

BOOL	isFillEnabled () SCONST OVERRIDE
	Checks whether fillBefore should be taken into account.

void	setFillEnabled (BOOL fillEnabled) OVERRIDE
	Sets whether fillBefore should be taken into account.

void	setStartTime (int64_t startTimeMillis) OVERRIDE
	Sets the start time of the animation.

void	start () OVERRIDE
	Starts the animation.

void	startNow () OVERRIDE
	Starts the animation immediately.

void	setRepeatMode (RepeatMode repeatMode) OVERRIDE
	Sets the repeat mode of the animation.

void	setRepeatCount (int repeatCount) OVERRIDE
	Sets the number of times the animation must repeat.

void	setZAdjustment (ZAdjustment zAdjustment) OVERRIDE
	Sets the desired Z order mode during animation.

IInterpolator *	getInterpolator () SCONST OVERRIDE
	Gets the interpolator used by the animation.

int64_t	getStartTime () SCONST OVERRIDE
	Gets the start time of the animation.

long	getDuration () SCONST OVERRIDE
	Gets the duration of one animation cycle.

long	getStartOffset () SCONST OVERRIDE
	Gets the delay in milliseconds after which the animation must start.

RepeatMode	getRepeatMode () SCONST OVERRIDE
	Gets the repeat mode of the animation.

int	getRepeatCount () SCONST OVERRIDE
	Gets the number of times the animation must repeat.

ZAdjustment	getZAdjustment () SCONST OVERRIDE
	Gets the desired Z order mode during animation.

void	setAnimationListener (IAnimationListener *listener) OVERRIDE
	Sets the animation listener to be notified when the animation starts, ends, or repeats.

long	computeDurationHint () SCONST OVERRIDE
	Computes the duration hint for the animation.

BOOL	getTransformation2 (uint64_t currentTime, ITransformation *outTransformation, float scale) OVERRIDE
	Gets the transformation at a specific time.

BOOL	getTransformation (uint64_t currentTime, ITransformation *outTransformation) OVERRIDE
	Gets the transformation at a specific time.

BOOL	hasStarted () SCONST OVERRIDE
	Checks whether the animation has started.

BOOL	hasEnded () SCONST OVERRIDE
	Checks whether the animation has ended.

void	applyTransformation (float interpolatedTime, ITransformation *t) OVERRIDE
	Applies the transformation at a specific interpolated time.

BOOL	hasAlpha () SCONST OVERRIDE
	Checks whether the animation affects the alpha property.

void	initialize (int width, int height, int parentWidth, int parentHeight, int nScale) OVERRIDE
	Initializes the animation with the dimensions of the object and its parent.

void	setUserData (ULONG_PTR data) OVERRIDE
	Sets user data associated with the animation.

ULONG_PTR	getUserData () SCONST OVERRIDE
	Gets user data associated with the animation.

void	pause () OVERRIDE
	Pauses the animation.

void	resume () OVERRIDE
	Resumes the animation.

virtual HRESULT	SetAttribute (const SNS::SStringW &amp;amp;amp;strAttribName, const SNS::SStringW &amp;amp;amp;strValue, BOOL bLoading=FALSE)
	Attributes for SAnimation.

Public Member Functions inherited from TObjRefImpl< SObjectImpl< IAnimation > >
	TObjRefImpl ()
	Constructor that initializes the reference count to 1.

virtual	~TObjRefImpl ()
	Virtual destructor.

long	AddRef () override
	Increments the reference count.

long	Release () override
	Decrements the reference count and deletes the object if the count reaches zero.

void	OnFinalRelease () override
	Deletes the object.

Public Member Functions inherited from SObjectImpl< IAnimation >
	SObjectImpl ()
	Constructor.

BOOL	InitFromXml (IXmlNode *pXmlNode) OVERRIDE
	Initializes the object from an XML node.

LPCWSTR	GetName () SCONST OVERRIDE
	Retrieves the object's name.

LPCSTR	GetNameA () SCONST OVERRIDE
	Retrieves the object's name in ANSI format.

void	SetName (LPCWSTR pszName) OVERRIDE
	Sets the object's name.

int	GetID () SCONST OVERRIDE
	Retrieves the object's ID.

void	SetID (int nID) OVERRIDE
	Sets the object's ID.

HRESULT	AfterAttribute (LPCWSTR strAttribName, LPCWSTR strValue, BOOL bLoading, HRESULT hr) OVERRIDE
	Handles attribute processing after setting an attribute.

HRESULT	SetAttributeA (LPCSTR pszAttr, LPCSTR pszValue, BOOL bLoading) OVERRIDE
	Sets an attribute using ANSI strings.

HRESULT	SetAttribute (LPCWSTR pszAttr, LPCWSTR pszValue, BOOL bLoading) OVERRIDE
	Sets an attribute using wide strings.

virtual HRESULT	SetAttribute (const SStringW &strAttr, const SStringW &strValue, BOOL bLoading)
	Sets an attribute using wide strings.

HRESULT	ISetAttribute (const IStringW strAttr, const IStringW strValue, BOOL bLoading) OVERRIDE
	Sets an attribute using IStringW objects.

LPCWSTR	GetObjectClass () SCONST OVERRIDE
	Retrieves the object's class name.

int	GetObjectType () SCONST OVERRIDE
	Retrieves the object's type.

BOOL	IsClass (LPCWSTR lpszName) SCONST OVERRIDE
	Checks if the object is of a specific class.

BOOL	GetAttribute (LPCWSTR strAttr, IStringW *pValue) SCONST OVERRIDE
	Retrieves an attribute value.

void	OnInitFinished (IXmlNode *xmlNode) OVERRIDE
	Handles initialization completion.

void	SetAttrHandler (FunAttrHandler attrHandler) OVERRIDE
	Sets the attribute handler.

virtual HRESULT	DefAttributeProc (const SStringW &strAttr, const SStringW &strValue, BOOL bLoading)
	Default attribute processing.

Protected Member Functions
bool	isCanceled ()
	Checks whether the animation is canceled.

void	fireAnimationStart ()
	Notifies the animation listener that the animation has started.

void	fireAnimationRepeat ()
	Notifies the animation listener that the animation has repeated.

void	fireAnimationEnd ()
	Notifies the animation listener that the animation has ended.

int	resolveSize (const SValueDescription &value, int size, int parentSize, int nScale)
	Converts the information in the description of a size to an actual dimension.

void	ensureInterpolator ()
	Ensures that this animation has an interpolator. Will use an AccelerateDecelerateInterpolator if nothing else was specified.

float	getScaleFactor ()
	Gets the scale factor that should be applied to pre-scaled values in an Animation. Such as the pivot points in `ScaleAnimation` and `RotateAnimation`.

Protected Attributes
bool	mEnded
	Set by `getTransformation(long, STransformation)` when the animation ends.

bool	mStarted
	Set by `getTransformation(long, STransformation)` when the animation starts.

bool	mCycleFlip
	Set by `getTransformation(long, STransformation)` when the animation repeats in REVERSE mode.

uint64_t	mStartTime
	The time in milliseconds at which the animation must start.

long	mStartOffset
	The delay in milliseconds after which the animation must start. When the start offset is > 0, the start time of the animation is startTime + startOffset.

long	mDuration
	The duration of one animation cycle in milliseconds.

int	mRepeatCount
	The number of times the animation must repeat. By default, an animation repeats indefinitely.

int	mRepeated
	Indicates how many times the animation was repeated.

RepeatMode	mRepeatMode
	The behavior of the animation when it repeats. The repeat mode is either `RESTART` or `REVERSE`.

SAutoRefPtr< IInterpolator >	mInterpolator
	The interpolator used by the animation to smooth the movement.

IAnimationListener *	mListener
	The animation listener to be notified when the animation starts, ends, or repeats.

ZAdjustment	mZAdjustment
	Desired Z order mode during animation.

float	mScaleFactor
	Scale factor to apply to pivot points, etc. during animation. Subclasses retrieve the value via getScaleFactor().

BOOL	mFillBefore
	Indicates whether the animation transformation should be applied before the animation starts. The value of this variable is only relevant if mFillEnabled is true; otherwise, it is assumed to be true.

BOOL	mFillAfter
	Indicates whether the animation transformation should be applied after the animation ends.

BOOL	mFillEnabled
	Indicates whether fillBefore should be taken into account.

ULONG_PTR	mUserData
	User data associated with the animation.

bool	mPaused
	Indicates whether the animation is paused.

uint64_t	mPauseTime
	The time at which the animation was paused.

Protected Attributes inherited from TObjRefImpl< SObjectImpl< IAnimation > >
LONG	m_cRef
	Reference count.

Protected Attributes inherited from SObjectImpl< IAnimation >
SStringW	m_strName

int	m_nID

FunAttrHandler	m_attrHandler

Additional Inherited Members
Static Public Member Functions inherited from SObjectImpl< IAnimation >
static int	GetClassType ()
	Retrieves the class type.

static LPCWSTR	GetClassName ()
	Retrieves the class name.

static LPCWSTR	GetClassAlias ()
	Retrieves the class alias.

static void	MarkAttributeHandled (SXmlAttr xmlAttr, bool bHandled)
	Marks an attribute as handled.

static bool	IsAttributeHandled (SXmlAttr xmlAttr)
	Checks if an attribute is handled.

Detailed Description

Abstraction for an Animation that can be applied to Views, Surfaces, or other objects.

See the animation package description file.

Definition at line 67 of file SAnimation.h.

Constructor & Destructor Documentation

◆ SAnimation()

SAnimation::SAnimation ( )

Default constructor for SAnimation.

Definition at line 414 of file SAnimation.cpp.

◆ ~SAnimation()

SAnimation::~SAnimation ( )

Destructor for SAnimation.

Definition at line 455 of file SAnimation.cpp.

Member Function Documentation

◆ applyTransformation()

void SAnimation::applyTransformation	(	float	interpolatedTime,
		ITransformation *	t )

Applies the transformation at a specific interpolated time.

Parameters

interpolatedTime	Interpolated time between 0 and 1.
t	Pointer to the transformation to apply.

Definition at line 60 of file SAnimation.cpp.

◆ cancel()

void SAnimation::cancel ( )

Cancels the animation.

Definition at line 342 of file SAnimation.cpp.

◆ clone()

IAnimation * SAnimation::clone ( )

Creates a new animation with a duration of 0ms, the default interpolator, with fillBefore set to true and fillAfter set to false.

Definition at line 400 of file SAnimation.cpp.

◆ computeDurationHint()

long SAnimation::computeDurationHint ( )

Computes the duration hint for the animation.

Returns: Duration hint in milliseconds.

Definition at line 192 of file SAnimation.cpp.

◆ copy()

void SAnimation::copy ( const IAnimation * src )

Copies the properties of another animation to this animation.

Parameters

src	Pointer to the source animation to copy from.

Definition at line 381 of file SAnimation.cpp.

◆ ensureInterpolator()

void SAnimation::ensureInterpolator ( )

protected

Ensures that this animation has an interpolator. Will use an AccelerateDecelerateInterpolator if nothing else was specified.

Definition at line 201 of file SAnimation.cpp.

◆ fireAnimationEnd()

void SAnimation::fireAnimationEnd ( )

protected

Notifies the animation listener that the animation has ended.

Definition at line 74 of file SAnimation.cpp.

◆ fireAnimationRepeat()

void SAnimation::fireAnimationRepeat ( )

protected

Notifies the animation listener that the animation has repeated.

Definition at line 82 of file SAnimation.cpp.

◆ fireAnimationStart()

void SAnimation::fireAnimationStart ( )

protected

Notifies the animation listener that the animation has started.

Definition at line 90 of file SAnimation.cpp.

◆ getDuration()

long SAnimation::getDuration ( )

Gets the duration of one animation cycle.

Returns: Duration in milliseconds.

Definition at line 234 of file SAnimation.cpp.

◆ getFillAfter()

BOOL SAnimation::getFillAfter ( )

Gets whether the animation transformation should be applied after the animation ends.

Returns: TRUE if fill after is enabled, FALSE otherwise.

Definition at line 306 of file SAnimation.cpp.

◆ getFillBefore()

BOOL SAnimation::getFillBefore ( )

Gets whether the animation transformation should be applied before the animation starts.

Returns: TRUE if fill before is enabled, FALSE otherwise.

Definition at line 316 of file SAnimation.cpp.

◆ getInterpolator()

IInterpolator * SAnimation::getInterpolator ( )

Gets the interpolator used by the animation.

Returns: Pointer to the interpolator.

Definition at line 244 of file SAnimation.cpp.

◆ getRepeatCount()

int SAnimation::getRepeatCount ( )

Gets the number of times the animation must repeat.

Returns: Number of repeats.

Definition at line 219 of file SAnimation.cpp.

◆ getRepeatMode()

RepeatMode SAnimation::getRepeatMode ( )

Gets the repeat mode of the animation.

Returns: Repeat mode (RESTART or REVERSE).

Definition at line 224 of file SAnimation.cpp.

◆ getScaleFactor()

float SAnimation::getScaleFactor ( )

protected

Gets the scale factor that should be applied to pre-scaled values in an Animation. Such as the pivot points in ScaleAnimation and RotateAnimation.

Returns: The scale factor.

Definition at line 249 of file SAnimation.cpp.

◆ getStartOffset()

long SAnimation::getStartOffset ( )

Gets the delay in milliseconds after which the animation must start.

Returns: Delay in milliseconds.

Definition at line 229 of file SAnimation.cpp.

◆ getStartTime()

int64_t SAnimation::getStartTime ( )

Gets the start time of the animation.

Returns: Start time in milliseconds.

Definition at line 239 of file SAnimation.cpp.

◆ getTransformation()

BOOL SAnimation::getTransformation	(	uint64_t	currentTime,
		ITransformation *	outTransformation )

Gets the transformation at a specific time.

Parameters

currentTime	Current time in milliseconds.
outTransformation	Pointer to the transformation to apply.

Returns: TRUE if the transformation is valid, FALSE otherwise.

Definition at line 103 of file SAnimation.cpp.

◆ getTransformation2()

BOOL SAnimation::getTransformation2	(	uint64_t	currentTime,
		ITransformation *	outTransformation,
		float	scale )

Gets the transformation at a specific time.

Parameters

currentTime	Current time in milliseconds.
outTransformation	Pointer to the transformation to apply.
scale	Scale factor.

Returns: TRUE if the transformation is valid, FALSE otherwise.

Definition at line 186 of file SAnimation.cpp.

◆ getUserData()

ULONG_PTR SAnimation::getUserData ( )

Gets user data associated with the animation.

Returns: User data.

Definition at line 424 of file SAnimation.cpp.

◆ getZAdjustment()

ZAdjustment SAnimation::getZAdjustment ( )

Gets the desired Z order mode during animation.

Returns: Z order adjustment mode.

Definition at line 214 of file SAnimation.cpp.

◆ hasAlpha()

BOOL SAnimation::hasAlpha ( )

Checks whether the animation affects the alpha property.

Returns: TRUE if the animation affects the alpha property, FALSE otherwise.

Definition at line 35 of file SAnimation.cpp.

◆ hasEnded()

BOOL SAnimation::hasEnded ( )

Checks whether the animation has ended.

Returns: TRUE if the animation has ended, FALSE otherwise.

Definition at line 64 of file SAnimation.cpp.

◆ hasStarted()

BOOL SAnimation::hasStarted ( )

Checks whether the animation has started.

Returns: TRUE if the animation has started, FALSE otherwise.

Definition at line 69 of file SAnimation.cpp.

◆ initialize()

void SAnimation::initialize	(	int	width,
		int	height,
		int	parentWidth,
		int	parentHeight,
		int	nScale )

Initializes the animation with the dimensions of the object and its parent.

Parameters

width	Width of the object being animated.
height	Height of the object being animated.
parentWidth	Width of the parent of the object being animated.
parentHeight	Height of the parent of the object being animated.
nScale	Scale factor.

Definition at line 410 of file SAnimation.cpp.

◆ isCanceled()

bool SAnimation::isCanceled ( )

protected

Checks whether the animation is canceled.

Returns: TRUE if the animation is canceled, FALSE otherwise.

Definition at line 98 of file SAnimation.cpp.

◆ isFillEnabled()

BOOL SAnimation::isFillEnabled ( )

Checks whether fillBefore should be taken into account.

Returns: TRUE if fill enabled, FALSE otherwise.

Definition at line 301 of file SAnimation.cpp.

◆ pause()

void SAnimation::pause ( )

Pauses the animation.

Definition at line 429 of file SAnimation.cpp.

◆ reset()

void SAnimation::reset ( )

Resets the animation to its initial state.

Definition at line 352 of file SAnimation.cpp.

◆ resolveSize()

int SAnimation::resolveSize	(	const SValueDescription &	value,
		int	size,
		int	parentSize,
		int	nScale )

protected

Converts the information in the description of a size to an actual dimension.

Parameters

value	The dimension associated with the type parameter.
size	The size of the object being animated.
parentSize	The size of the parent of the object being animated.
nScale	Scale factor.

Returns: The dimension to use for the animation.

Definition at line 40 of file SAnimation.cpp.

◆ resume()

void SAnimation::resume ( )

Resumes the animation.

Definition at line 440 of file SAnimation.cpp.

◆ scaleCurrentDuration()

void SAnimation::scaleCurrentDuration ( float scale )

Scales the current duration of the animation.

Parameters

scale Scale factor.

Definition at line 326 of file SAnimation.cpp.

◆ setAnimationListener()

void SAnimation::setAnimationListener ( IAnimationListener * listener )

Sets the animation listener to be notified when the animation starts, ends, or repeats.

Parameters

listener Pointer to the animation listener.

Definition at line 209 of file SAnimation.cpp.

◆ SetAttribute()

virtual HRESULT SAnimation::SetAttribute	(	const SNS::SStringW &amp;amp;amp;	strAttribName,
		const SNS::SStringW &amp;amp;amp;	strValue,
		BOOL	bLoading = FALSE )

inlinevirtual

Attributes for SAnimation.

< Duration of the animation in milliseconds. Delay before the animation starts in milliseconds. Whether fillBefore and fillAfter are taken into account. Whether the animation transformation should be applied before the animation starts. Whether the animation transformation should be applied after the animation ends. Number of times the animation must repeat.

< Normal Z order adjustment. Top Z order adjustment. Bottom Z order adjustment.

< Restart repeat mode. Reverse repeat mode.

< Interpolator used by the animation.

Reimplemented in SAlphaAnimation, SAnimationSet, SRotateAnimation, SScaleAnimation, and STranslateAnimation.

Definition at line 475 of file SAnimation.h.

◆ setDuration()

void SAnimation::setDuration ( long durationMillis )

Sets the duration of one animation cycle in milliseconds.

Parameters

durationMillis Duration in milliseconds.

Definition at line 332 of file SAnimation.cpp.

◆ setFillAfter()

void SAnimation::setFillAfter ( BOOL bFill )

Sets whether the animation transformation should be applied after the animation ends.

Parameters

bFill Boolean indicating whether to fill after.

Definition at line 311 of file SAnimation.cpp.

◆ setFillBefore()

void SAnimation::setFillBefore ( BOOL bFill )

Sets whether the animation transformation should be applied before the animation starts.

Parameters

bFill Boolean indicating whether to fill before.

Definition at line 321 of file SAnimation.cpp.

◆ setFillEnabled()

void SAnimation::setFillEnabled ( BOOL fillEnabled )

Sets whether fillBefore should be taken into account.

Parameters

fillEnabled Boolean indicating whether fill is enabled.

Definition at line 296 of file SAnimation.cpp.

◆ setInterpolator()

void SAnimation::setInterpolator ( IInterpolator * i )

Sets the interpolator used by the animation to smooth the movement.

Parameters

i	Pointer to the interpolator.

Definition at line 337 of file SAnimation.cpp.

◆ setRepeatCount()

void SAnimation::setRepeatCount ( int repeatCount )

Sets the number of times the animation must repeat.

Parameters

repeatCount Number of repeats.

Definition at line 259 of file SAnimation.cpp.

◆ setRepeatMode()

void SAnimation::setRepeatMode ( RepeatMode repeatMode )

Sets the repeat mode of the animation.

Parameters

repeatMode Repeat mode (RESTART or REVERSE).

Definition at line 268 of file SAnimation.cpp.

◆ setStartOffset()

void SAnimation::setStartOffset ( long offset )

Sets the delay in milliseconds after which the animation must start.

Parameters

offset Delay in milliseconds.

Definition at line 291 of file SAnimation.cpp.

◆ setStartTime()

void SAnimation::setStartTime ( int64_t startTimeMillis )

Sets the start time of the animation.

Parameters

startTimeMillis Start time in milliseconds.

Definition at line 283 of file SAnimation.cpp.

◆ setUserData()

void SAnimation::setUserData ( ULONG_PTR data )

Sets user data associated with the animation.

Parameters

data	User data.

Definition at line 419 of file SAnimation.cpp.

◆ setZAdjustment()

void SAnimation::setZAdjustment ( ZAdjustment zAdjustment )

Sets the desired Z order mode during animation.

Parameters

zAdjustment Z order adjustment mode.

Definition at line 254 of file SAnimation.cpp.

◆ start()

void SAnimation::start ( )

Starts the animation.

Definition at line 278 of file SAnimation.cpp.

◆ startNow()

void SAnimation::startNow ( )

Starts the animation immediately.

Definition at line 273 of file SAnimation.cpp.

Member Data Documentation

◆ mCycleFlip

bool SAnimation::mCycleFlip

protected

Set by getTransformation(long, STransformation) when the animation repeats in REVERSE mode.

Definition at line 84 of file SAnimation.h.

◆ mDuration

long SAnimation::mDuration

protected

The duration of one animation cycle in milliseconds.

Definition at line 100 of file SAnimation.h.

◆ mEnded

bool SAnimation::mEnded

protected

Set by getTransformation(long, STransformation) when the animation ends.

Definition at line 74 of file SAnimation.h.

◆ mFillAfter

BOOL SAnimation::mFillAfter

protected

Indicates whether the animation transformation should be applied after the animation ends.

Definition at line 146 of file SAnimation.h.

◆ mFillBefore

BOOL SAnimation::mFillBefore

protected

Indicates whether the animation transformation should be applied before the animation starts. The value of this variable is only relevant if mFillEnabled is true; otherwise, it is assumed to be true.

Definition at line 141 of file SAnimation.h.

◆ mFillEnabled

BOOL SAnimation::mFillEnabled

protected

Indicates whether fillBefore should be taken into account.

Definition at line 151 of file SAnimation.h.

◆ mInterpolator

SAutoRefPtr<IInterpolator> SAnimation::mInterpolator

protected

The interpolator used by the animation to smooth the movement.

Definition at line 120 of file SAnimation.h.

◆ mListener

IAnimationListener* SAnimation::mListener

protected

The animation listener to be notified when the animation starts, ends, or repeats.

Definition at line 125 of file SAnimation.h.

◆ mPaused

bool SAnimation::mPaused

protected

Indicates whether the animation is paused.

Definition at line 161 of file SAnimation.h.

◆ mPauseTime

uint64_t SAnimation::mPauseTime

protected

The time at which the animation was paused.

Definition at line 166 of file SAnimation.h.

◆ mRepeatCount

int SAnimation::mRepeatCount

protected

The number of times the animation must repeat. By default, an animation repeats indefinitely.

Definition at line 105 of file SAnimation.h.

◆ mRepeated

int SAnimation::mRepeated

protected

Indicates how many times the animation was repeated.

Definition at line 110 of file SAnimation.h.

◆ mRepeatMode

RepeatMode SAnimation::mRepeatMode

protected

The behavior of the animation when it repeats. The repeat mode is either RESTART or REVERSE.

Definition at line 115 of file SAnimation.h.

◆ mScaleFactor

float SAnimation::mScaleFactor

protected

Scale factor to apply to pivot points, etc. during animation. Subclasses retrieve the value via getScaleFactor().

Definition at line 135 of file SAnimation.h.

◆ mStarted

bool SAnimation::mStarted

protected

Set by getTransformation(long, STransformation) when the animation starts.

Definition at line 79 of file SAnimation.h.

◆ mStartOffset

long SAnimation::mStartOffset

protected

The delay in milliseconds after which the animation must start. When the start offset is > 0, the start time of the animation is startTime + startOffset.

Definition at line 95 of file SAnimation.h.

◆ mStartTime

uint64_t SAnimation::mStartTime

protected

The time in milliseconds at which the animation must start.

Definition at line 89 of file SAnimation.h.

◆ mUserData

ULONG_PTR SAnimation::mUserData

protected

User data associated with the animation.

Definition at line 156 of file SAnimation.h.

◆ mZAdjustment

ZAdjustment SAnimation::mZAdjustment

protected

Desired Z order mode during animation.

Definition at line 130 of file SAnimation.h.

The documentation for this class was generated from the following files:

SOUI/include/animation/SAnimation.h
SOUI/src/animation/SAnimation.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SAnimation()

◆ ~SAnimation()

Member Function Documentation

◆ applyTransformation()

◆ cancel()

◆ clone()

◆ computeDurationHint()

◆ copy()

◆ ensureInterpolator()

◆ fireAnimationEnd()

◆ fireAnimationRepeat()

◆ fireAnimationStart()

◆ getDuration()

◆ getFillAfter()

◆ getFillBefore()

◆ getInterpolator()

◆ getRepeatCount()

◆ getRepeatMode()

◆ getScaleFactor()

◆ getStartOffset()

◆ getStartTime()

◆ getTransformation()

◆ getTransformation2()

◆ getUserData()

◆ getZAdjustment()

◆ hasAlpha()

◆ hasEnded()

◆ hasStarted()

◆ initialize()

◆ isCanceled()

◆ isFillEnabled()

◆ pause()

◆ reset()

◆ resolveSize()

◆ resume()

◆ scaleCurrentDuration()

◆ setAnimationListener()

◆ SetAttribute()

◆ setDuration()

◆ setFillAfter()

◆ setFillBefore()

◆ setFillEnabled()

◆ setInterpolator()

◆ setRepeatCount()

◆ setRepeatMode()

◆ setStartOffset()

◆ setStartTime()

◆ setUserData()

◆ setZAdjustment()

◆ start()

◆ startNow()

Member Data Documentation

◆ mCycleFlip

◆ mDuration

◆ mEnded

◆ mFillAfter

◆ mFillBefore

◆ mFillEnabled

◆ mInterpolator

◆ mListener

◆ mPaused

◆ mPauseTime

◆ mRepeatCount

◆ mRepeated

◆ mRepeatMode

◆ mScaleFactor

◆ mStarted

◆ mStartOffset

◆ mStartTime

◆ mUserData

◆ mZAdjustment
