Caret management class. More...

#include <SCaret.h>

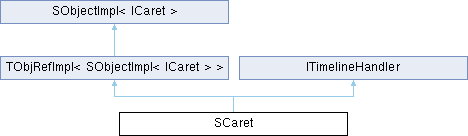

Inheritance diagram for SCaret:

Public Member Functions
	SCaret (ISwndContainer *pContainer)
	Constructor.

	~SCaret ()
	Destructor.

BOOL	Init (HBITMAP hBmp, int nWid, int nHei) OVERRIDE
	Initializes the caret.

void	SetPosition (int x, int y) OVERRIDE
	Sets the position of the caret.

BOOL	SetVisible (BOOL bVisible, SWND owner) OVERRIDE
	Sets the visibility of the caret.

BOOL	IsVisible () SCONST OVERRIDE
	Checks if the caret is visible.

void	Draw (IRenderTarget *pRT) OVERRIDE
	Draws the caret.

RECT	GetRect () SCONST OVERRIDE
	Gets the rectangle of the caret.

void	OnNextFrame () OVERRIDE
	Handles the next frame in the timeline.

virtual HRESULT	SetAttribute (const SNS::SStringW &amp;amp;amp;strAttribName, const SNS::SStringW &amp;amp;amp;strValue, BOOL bLoading=FALSE)

Public Member Functions inherited from TObjRefImpl< SObjectImpl< ICaret > >
	TObjRefImpl ()
	Constructor that initializes the reference count to 1.

virtual	~TObjRefImpl ()
	Virtual destructor.

long	AddRef () override
	Increments the reference count.

long	Release () override
	Decrements the reference count and deletes the object if the count reaches zero.

void	OnFinalRelease () override
	Deletes the object.

Public Member Functions inherited from SObjectImpl< ICaret >
	SObjectImpl ()
	Constructor.

BOOL	InitFromXml (IXmlNode *pXmlNode) OVERRIDE
	Initializes the object from an XML node.

LPCWSTR	GetName () SCONST OVERRIDE
	Retrieves the object's name.

LPCSTR	GetNameA () SCONST OVERRIDE
	Retrieves the object's name in ANSI format.

void	SetName (LPCWSTR pszName) OVERRIDE
	Sets the object's name.

int	GetID () SCONST OVERRIDE
	Retrieves the object's ID.

void	SetID (int nID) OVERRIDE
	Sets the object's ID.

HRESULT	AfterAttribute (LPCWSTR strAttribName, LPCWSTR strValue, BOOL bLoading, HRESULT hr) OVERRIDE
	Handles attribute processing after setting an attribute.

HRESULT	SetAttributeA (LPCSTR pszAttr, LPCSTR pszValue, BOOL bLoading) OVERRIDE
	Sets an attribute using ANSI strings.

HRESULT	SetAttribute (LPCWSTR pszAttr, LPCWSTR pszValue, BOOL bLoading) OVERRIDE
	Sets an attribute using wide strings.

virtual HRESULT	SetAttribute (const SStringW &strAttr, const SStringW &strValue, BOOL bLoading)
	Sets an attribute using wide strings.

HRESULT	ISetAttribute (const IStringW strAttr, const IStringW strValue, BOOL bLoading) OVERRIDE
	Sets an attribute using IStringW objects.

LPCWSTR	GetObjectClass () SCONST OVERRIDE
	Retrieves the object's class name.

int	GetObjectType () SCONST OVERRIDE
	Retrieves the object's type.

BOOL	IsClass (LPCWSTR lpszName) SCONST OVERRIDE
	Checks if the object is of a specific class.

BOOL	GetAttribute (LPCWSTR strAttr, IStringW *pValue) SCONST OVERRIDE
	Retrieves an attribute value.

void	OnInitFinished (IXmlNode *xmlNode) OVERRIDE
	Handles initialization completion.

void	SetAttrHandler (FunAttrHandler attrHandler) OVERRIDE
	Sets the attribute handler.

virtual HRESULT	DefAttributeProc (const SStringW &strAttr, const SStringW &strValue, BOOL bLoading)
	Default attribute processing.

Public Member Functions inherited from ITimelineHandler
void	OnNextFrame () PURE
	下一个动画帧处理接口

Protected Member Functions
void	Invalidate ()
	Invalidates the caret area.

Protected Attributes
BOOL	m_bVisible

CPoint	m_ptCaret

SAutoRefPtr< IBitmapS >	m_bmpCaret

bool	m_bDrawCaret

int	m_iFrame

BYTE	m_byAlpha

BOOL	m_bAniCaret

COLORREF	m_crCaret

int	m_nAniFrames

int	m_nShowFrames

SAutoRefPtr< IInterpolator >	m_AniInterpolator

ISwndContainer *	m_pContainer

SWND	m_hOwner

Protected Attributes inherited from TObjRefImpl< SObjectImpl< ICaret > >
LONG	m_cRef
	Reference count.

Protected Attributes inherited from SObjectImpl< ICaret >
SStringW	m_strName

int	m_nID

FunAttrHandler	m_attrHandler

Additional Inherited Members
Static Public Member Functions inherited from SObjectImpl< ICaret >
static int	GetClassType ()
	Retrieves the class type.

static LPCWSTR	GetClassName ()
	Retrieves the class name.

static LPCWSTR	GetClassAlias ()
	Retrieves the class alias.

static void	MarkAttributeHandled (SXmlAttr xmlAttr, bool bHandled)
	Marks an attribute as handled.

static bool	IsAttributeHandled (SXmlAttr xmlAttr)
	Checks if an attribute is handled.

Detailed Description

Caret management class.

This class manages the caret, including its initialization, positioning, visibility, drawing, and animation.

Definition at line 18 of file SCaret.h.

Constructor & Destructor Documentation

◆ SCaret()

SNSBEGIN SCaret::SCaret ( ISwndContainer * pContainer )

Constructor.

Parameters

pContainer Pointer to the container window

Initializes the caret with a container window.

Definition at line 9 of file SCaret.cpp.

◆ ~SCaret()

SCaret::~SCaret ( )

Destructor.

Cleans up the caret object.

Definition at line 24 of file SCaret.cpp.

Member Function Documentation

◆ Draw()

void SCaret::Draw ( IRenderTarget * pRT )

Draws the caret.

Parameters

pRT	Pointer to the rendering target

Draws the caret on the specified rendering target.

Definition at line 66 of file SCaret.cpp.

◆ GetRect()

RECT SCaret::GetRect ( )

Gets the rectangle of the caret.

Returns: Rectangle of the caret

Returns the bounding rectangle of the caret.

Definition at line 158 of file SCaret.cpp.

◆ Init()

BOOL SCaret::Init	(	HBITMAP	hBmp,
		int	nWid,
		int	nHei )

Initializes the caret.

Parameters

hBmp	Handle to the bitmap for the caret
nWid	Width of the caret
nHei	Height of the caret

Returns: TRUE if successful, otherwise FALSE

Initializes the caret with a bitmap and specified dimensions.

Definition at line 29 of file SCaret.cpp.

◆ Invalidate()

void SCaret::Invalidate ( )

protected

Invalidates the caret area.

Invalidates the area where the caret is drawn to trigger a redraw.

Definition at line 166 of file SCaret.cpp.

◆ IsVisible()

BOOL SCaret::IsVisible ( )

Checks if the caret is visible.

Returns: TRUE if the caret is visible, otherwise FALSE

Returns the visibility status of the caret.

Definition at line 153 of file SCaret.cpp.

◆ OnNextFrame()

void SCaret::OnNextFrame ( )

Handles the next frame in the timeline.

Updates the caret's state for the next frame, handling animation if enabled.

Definition at line 78 of file SCaret.cpp.

◆ SetAttribute()

virtual HRESULT SCaret::SetAttribute	(	const SNS::SStringW &amp;amp;amp;	strAttribName,
		const SNS::SStringW &amp;amp;amp;	strValue,
		BOOL	bLoading = FALSE )

inlinevirtual

Definition at line 107 of file SCaret.h.

◆ SetPosition()

void SCaret::SetPosition	(	int	x,
		int	y )

Sets the position of the caret.

Parameters

x	X-coordinate of the caret
y	Y-coordinate of the caret

Sets the position of the caret to the specified coordinates.

Definition at line 120 of file SCaret.cpp.

◆ SetVisible()

BOOL SCaret::SetVisible	(	BOOL	bVisible,
		SWND	owner )

Sets the visibility of the caret.

Parameters

bVisible	TRUE to make the caret visible, FALSE to hide it
owner	Handle to the owner window

Returns: TRUE if successful, otherwise FALSE

Sets the visibility of the caret and associates it with the owner window.

Definition at line 134 of file SCaret.cpp.

Member Data Documentation

◆ m_AniInterpolator

SAutoRefPtr<IInterpolator> SCaret::m_AniInterpolator

protected

Interpolator for caret animation.

Definition at line 136 of file SCaret.h.

◆ m_bAniCaret

BOOL SCaret::m_bAniCaret

protected

TRUE if the caret has animation enabled.

Definition at line 132 of file SCaret.h.

◆ m_bDrawCaret

bool SCaret::m_bDrawCaret

protected

TRUE if the caret is currently drawing.

Definition at line 128 of file SCaret.h.

◆ m_bmpCaret

SAutoRefPtr<IBitmapS> SCaret::m_bmpCaret

protected

Bitmap representing the caret.

Definition at line 127 of file SCaret.h.

◆ m_bVisible

BOOL SCaret::m_bVisible

protected

TRUE if the caret is currently visible.

Definition at line 125 of file SCaret.h.

◆ m_byAlpha

BYTE SCaret::m_byAlpha

protected

Alpha value for caret transparency.

Definition at line 130 of file SCaret.h.

◆ m_crCaret

COLORREF SCaret::m_crCaret

protected

Color of the caret.

Definition at line 133 of file SCaret.h.

◆ m_hOwner

SWND SCaret::m_hOwner

protected

Handle to the owner window.

Definition at line 138 of file SCaret.h.

◆ m_iFrame

int SCaret::m_iFrame

protected

Current frame index for animation.

Definition at line 129 of file SCaret.h.

◆ m_nAniFrames

int SCaret::m_nAniFrames

protected

Number of frames for fade animation.

Definition at line 134 of file SCaret.h.

◆ m_nShowFrames

int SCaret::m_nShowFrames

protected

Number of frames for show/hide animation.

Definition at line 135 of file SCaret.h.

◆ m_pContainer

ISwndContainer* SCaret::m_pContainer

protected

Pointer to the container window.

Definition at line 137 of file SCaret.h.

◆ m_ptCaret

CPoint SCaret::m_ptCaret

protected

Position of the caret.

Definition at line 126 of file SCaret.h.

The documentation for this class was generated from the following files:

SOUI/include/core/SCaret.h
SOUI/src/core/SCaret.cpp
