Class for managing native window operations. More...

#include <SNativeWnd.h>

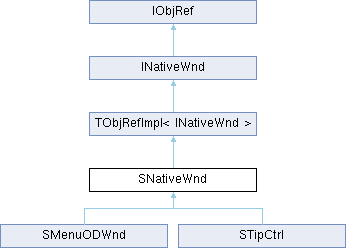

Inheritance diagram for SNativeWnd:

Public Member Functions
int	GetID () SCONST
	Retrieves the window ID.

void	SetID (int nID)
	Sets the window ID.

HWND	CreateNative (LPCTSTR lpWindowName, DWORD dwStyle, DWORD dwExStyle, int x, int y, int nWidth, int nHeight, HWND hWndParent, int nID=0, LPVOID lpParam=0) OVERRIDE
	Creates a native window.

HWND	GetHwnd () OVERRIDE
	Retrieves the handle to the window.

BOOL	SubclassWindow (HWND hWnd) OVERRIDE
	Subclasses an existing window.

HWND	UnsubclassWindow (BOOL bForce=FALSE) OVERRIDE
	Unsubclasses a window.

const MSG *	GetCurrentMessage () SCONST OVERRIDE
	Retrieves the current message being processed.

int	GetDlgCtrlID () SCONST OVERRIDE
	Retrieves the dialog control ID.

DWORD	GetStyle () SCONST OVERRIDE
	Retrieves the window style.

DWORD	GetExStyle () SCONST OVERRIDE
	Retrieves the extended window style.

LONG_PTR	GetWindowLongPtr (int nIndex) SCONST OVERRIDE
	Retrieves the long pointer value at the specified index.

LONG_PTR	SetWindowLongPtr (int nIndex, LONG_PTR dwNewLong) OVERRIDE
	Sets the long pointer value at the specified index.

HWND	GetParent () OVERRIDE
	Retrieves the handle to the parent window.

HWND	SetParent (HWND hWndNewParent) OVERRIDE
	Sets the handle to the parent window.

BOOL	IsWindowEnabled () SCONST OVERRIDE
	Checks if the window is enabled.

BOOL	ModifyStyle (DWORD dwRemove, DWORD dwAdd, UINT nFlags=0) OVERRIDE
	Modifies the window style.

BOOL	ModifyStyleEx (DWORD dwRemove, DWORD dwAdd, UINT nFlags=0) OVERRIDE
	Modifies the extended window style.

BOOL	SetWindowPos (HWND hWndInsertAfter, int x, int y, int cx, int cy, UINT nFlags) OVERRIDE
	Sets the window position.

BOOL	CenterWindow (HWND hWndCenter=0) OVERRIDE
	Centers the window relative to another window.

BOOL	DestroyWindow () OVERRIDE
	Destroys the window.

BOOL	IsWindow () SCONST OVERRIDE
	Checks if the handle is a valid window handle.

BOOL	Invalidate (BOOL bErase=TRUE) OVERRIDE
	Invalidates the entire window.

BOOL	InvalidateRect (LPCRECT lpRect, BOOL bErase=TRUE) OVERRIDE
	Invalidates a specified rectangle of the window.

BOOL	GetWindowRect (LPRECT lpRect) SCONST OVERRIDE
	Retrieves the window rectangle.

BOOL	GetClientRect (LPRECT lpRect) SCONST OVERRIDE
	Retrieves the client rectangle.

BOOL	ClientToScreen (LPPOINT lpPoint) SCONST OVERRIDE
	Converts client coordinates to screen coordinates.

BOOL	ClientToScreen2 (LPRECT lpRect) SCONST OVERRIDE
	Converts client rectangle coordinates to screen coordinates.

BOOL	ScreenToClient (LPPOINT lpPoint) SCONST OVERRIDE
	Converts screen coordinates to client coordinates.

BOOL	ScreenToClient2 (LPRECT lpRect) SCONST OVERRIDE
	Converts screen rectangle coordinates to client coordinates.

int	MapWindowPoints (HWND hWndTo, LPPOINT lpPoint, UINT nCount) SCONST OVERRIDE
	Maps points from one window to another.

int	MapWindowRect (HWND hWndTo, LPRECT lpRect) SCONST OVERRIDE
	Maps a rectangle from one window to another.

UINT_PTR	SetTimer (UINT_PTR nIDEvent, UINT nElapse, void(CALLBACK *lpfnTimer)(HWND, UINT, UINT_PTR, DWORD)=NULL) OVERRIDE
	Sets a timer for the window.

BOOL	KillTimer (UINT_PTR nIDEvent) OVERRIDE
	Kills a timer for the window.

HDC	GetDC () OVERRIDE
	Retrieves a device context for the window.

HDC	GetWindowDC () OVERRIDE
	Retrieves a device context for the entire window.

int	ReleaseDC (HDC hDC) OVERRIDE
	Releases a device context.

BOOL	CreateCaret (HBITMAP hBitmap, int nWidth, int nHeight) OVERRIDE
	Creates a caret for the window.

BOOL	HideCaret () OVERRIDE
	Hides the caret.

BOOL	ShowCaret () OVERRIDE
	Shows the caret.

HWND	GetCapture () OVERRIDE
	Retrieves the handle to the window that has captured the mouse.

HWND	SetCapture () OVERRIDE
	Sets the window to capture the mouse.

BOOL	ReleaseCapture () OVERRIDE
	Releases the mouse capture.

HWND	SetFocus () OVERRIDE
	Sets the input focus to the window.

LRESULT	SendMessage (UINT message, WPARAM wParam=0, LPARAM lParam=0) OVERRIDE
	Sends a message to the window.

BOOL	PostMessage (UINT message, WPARAM wParam=0, LPARAM lParam=0) OVERRIDE
	Posts a message to the window.

BOOL	SendNotifyMessage (UINT message, WPARAM wParam=0, LPARAM lParam=0) OVERRIDE
	Sends a notify message to the window.

BOOL	SetWindowText (LPCTSTR lpszString) OVERRIDE
	Sets the window text.

int	GetWindowText (LPTSTR lpszStringBuf, int nMaxCount) SCONST OVERRIDE
	Retrieves the window text.

BOOL	IsIconic () SCONST OVERRIDE
	Checks if the window is iconic (minimized).

BOOL	IsZoomed () SCONST OVERRIDE
	Checks if the window is zoomed (maximized).

BOOL	IsWindowVisible () SCONST OVERRIDE
	Checks if the window is visible.

BOOL	MoveWindow (int x, int y, int nWidth, int nHeight, BOOL bRepaint=TRUE) OVERRIDE
	Moves the window to the specified position and resizes it.

BOOL	MoveWindow2 (LPCRECT lpRect, BOOL bRepaint=TRUE) OVERRIDE
	Moves the window to the specified position and resizes it using a rectangle.

BOOL	ShowWindow (int nCmdShow) OVERRIDE
	Sets the show state of the window.

int	SetWindowRgn (HRGN hRgn, BOOL bRedraw=TRUE) OVERRIDE
	Sets the window region.

BOOL	SetLayeredWindowAttributes (COLORREF crKey, BYTE bAlpha, DWORD dwFlags) OVERRIDE
	Sets the layered window attributes.

BOOL	UpdateLayeredWindow (HDC hdcDst, POINT pptDst, SIZE psize, HDC hdcSrc, POINT pptSrc, COLORREF crKey, BLENDFUNCTION pblend, DWORD dwFlags) OVERRIDE
	Updates the layered window.

void	SetMsgHandler (FunMsgHandler fun, void *ctx) OVERRIDE
	Sets the message handler for the window.

MsgHandlerInfo *	GetMsgHandler () OVERRIDE
	Retrieves the message handler for the window.

LRESULT	DefWindowProc ()
	Calls the default window procedure.

LRESULT	ForwardNotifications (UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL &bHandled)
	Forwards notifications to the appropriate handler.

LRESULT	ReflectNotifications (UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL &bHandled)
	Reflects notifications to the appropriate handler.

virtual BOOL	ProcessWindowMessage (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, LRESULT &lResult, DWORD dwMsgMapID=0)
	Processes a window message.

Public Member Functions inherited from TObjRefImpl< INativeWnd >
	TObjRefImpl ()
	Constructor that initializes the reference count to 1.

virtual	~TObjRefImpl ()
	Virtual destructor.

long	AddRef () override
	Increments the reference count.

long	Release () override
	Decrements the reference count and deletes the object if the count reaches zero.

void	OnFinalRelease () override
	Deletes the object.

Public Member Functions inherited from IObjRef
long	AddRef () PURE
	Increases the reference count.

long	Release () PURE
	Decreases the reference count.

void	OnFinalRelease () PURE
	Called when the reference count reaches zero and the object is about to be released.

Static Public Member Functions
static ATOM	RegisterSimpleWnd (HINSTANCE hInst, LPCTSTR pszSimpleWndName, BOOL bImeWnd)
	Registers a simple window class.

static void	InitWndClass (HINSTANCE hInst, LPCTSTR pszSimpleWndName, BOOL bImeWnd)
	Initializes the window class.

static BOOL	DefaultReflectionHandler (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, LRESULT &lResult)
	Default reflection handler for notifications.

Public Attributes
HWND	m_hWnd
	Handle to the window.

Protected Member Functions
LRESULT	DefWindowProc (UINT uMsg, WPARAM wParam, LPARAM lParam)
	Calls the default window procedure with specific parameters.

virtual void	OnFinalMessage (HWND hWnd)
	Handles the final message for the window.

Static Protected Member Functions
static LRESULT CALLBACK	WindowProc (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
	Window procedure callback function.

static LRESULT CALLBACK	StartWindowProc (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
	Start window procedure callback function (executed once).

Protected Attributes
const MSG *	m_pCurrentMsg
	Pointer to the current message.

BOOL	m_bDestoryed
	Flag indicating if the window is destroyed.

MsgHandlerInfo	m_msgHandlerInfo
	Message handler information.

tagThunk *	m_pThunk
	Thunk structure.

WNDPROC	m_pfnSuperWindowProc
	Pointer to the superclass window procedure.

Protected Attributes inherited from TObjRefImpl< INativeWnd >
LONG	m_cRef
	Reference count.

Detailed Description

Class for managing native window operations.

This class provides methods for creating, subclassing, and managing native Windows, as well as handling window messages and notifications.

Definition at line 126 of file SNativeWnd.h.

Constructor & Destructor Documentation

◆ SNativeWnd()

SNativeWnd::SNativeWnd ( )

Definition at line 187 of file SNativeWnd.cpp.

◆ ~SNativeWnd()

SNativeWnd::~SNativeWnd ( void )

virtual

Definition at line 198 of file SNativeWnd.cpp.

Member Function Documentation

◆ CenterWindow()

BOOL SNativeWnd::CenterWindow ( HWND hWndCenter = 0 )

Centers the window relative to another window.

Parameters

hWndCenter Handle to the window to center relative to.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 527 of file SNativeWnd.cpp.

◆ ClientToScreen()

BOOL SNativeWnd::ClientToScreen ( LPPOINT lpPoint )

Converts client coordinates to screen coordinates.

Parameters

lpPoint Point to convert.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 857 of file SNativeWnd.cpp.

◆ ClientToScreen2()

BOOL SNativeWnd::ClientToScreen2 ( LPRECT lpRect )

Converts client rectangle coordinates to screen coordinates.

Parameters

lpRect Rectangle to convert.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 849 of file SNativeWnd.cpp.

◆ CreateCaret()

BOOL SNativeWnd::CreateCaret	(	HBITMAP	hBitmap,
		int	nWidth,
		int	nHeight )

Creates a caret for the window.

Parameters

hBitmap	Handle to the bitmap for the caret.
nWidth	Width of the caret.
nHeight	Height of the caret.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 787 of file SNativeWnd.cpp.

◆ CreateNative()

HWND SNativeWnd::CreateNative	(	LPCTSTR	lpWindowName,
		DWORD	dwStyle,
		DWORD	dwExStyle,
		int	x,
		int	y,
		int	nWidth,
		int	nHeight,
		HWND	hWndParent,
		int	nID = 0,
		LPVOID	lpParam = 0 )

Creates a native window.

Parameters

lpWindowName	Name of the window.
dwStyle	Window style.
dwExStyle	Extended window style.
x	X position of the window.
y	Y position of the window.
nWidth	Width of the window.
nHeight	Height of the window.
hWndParent	Handle to the parent window.
nID	Control ID of the window.
lpParam	Pointer to creation parameters.

Returns: HWND Handle to the created window.

Implements INativeWnd.

Definition at line 219 of file SNativeWnd.cpp.

◆ DefaultReflectionHandler()

BOOL SNativeWnd::DefaultReflectionHandler	(	HWND	hWnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam,
		LRESULT &	lResult )

static

Default reflection handler for notifications.

Parameters

hWnd	Handle to the window.
uMsg	Message identifier.
wParam	WPARAM for the message.
lParam	LPARAM for the message.
lResult	Result of the message processing.

Returns: BOOL TRUE if the message was handled, FALSE otherwise.

Definition at line 481 of file SNativeWnd.cpp.

◆ DefWindowProc() [1/2]

LRESULT SNativeWnd::DefWindowProc ( )

Calls the default window procedure.

Returns: LRESULT Result of the default window procedure.

Definition at line 518 of file SNativeWnd.cpp.

◆ DefWindowProc() [2/2]

LRESULT SNativeWnd::DefWindowProc	(	UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam )

protected

Calls the default window procedure with specific parameters.

Parameters

uMsg	Message identifier.
wParam	WPARAM for the message.
lParam	LPARAM for the message.

Returns: LRESULT Result of the default window procedure.

Definition at line 513 of file SNativeWnd.cpp.

◆ DestroyWindow()

BOOL SNativeWnd::DestroyWindow ( )

Destroys the window.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 892 of file SNativeWnd.cpp.

◆ ForwardNotifications()

LRESULT SNativeWnd::ForwardNotifications	(	UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam,
		BOOL &	bHandled )

Forwards notifications to the appropriate handler.

Parameters

uMsg	Message identifier.
wParam	WPARAM for the message.
lParam	LPARAM for the message.
bHandled	Flag indicating if the message was handled.

Returns: LRESULT Result of the message processing.

Definition at line 382 of file SNativeWnd.cpp.

◆ GetCapture()

HWND SNativeWnd::GetCapture ( )

Retrieves the handle to the window that has captured the mouse.

Returns: HWND Handle to the capturing window.

Implements INativeWnd.

Definition at line 765 of file SNativeWnd.cpp.

◆ GetClientRect()

BOOL SNativeWnd::GetClientRect ( LPRECT lpRect )

Retrieves the client rectangle.

Parameters

lpRect Rectangle to receive the client rectangle.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 863 of file SNativeWnd.cpp.

◆ GetCurrentMessage()

const MSG * SNativeWnd::GetCurrentMessage ( )

Retrieves the current message being processed.

Returns: const MSG* Pointer to the current message.

Implements INativeWnd.

Definition at line 952 of file SNativeWnd.cpp.

◆ GetDC()

HDC SNativeWnd::GetDC ( )

Retrieves a device context for the window.

Returns: HDC Handle to the device context.

Implements INativeWnd.

Definition at line 805 of file SNativeWnd.cpp.

◆ GetDlgCtrlID()

int SNativeWnd::GetDlgCtrlID ( )

Retrieves the dialog control ID.

Returns: int Dialog control ID.

Implements INativeWnd.

Definition at line 946 of file SNativeWnd.cpp.

◆ GetExStyle()

DWORD SNativeWnd::GetExStyle ( )

Retrieves the extended window style.

Returns: DWORD Extended window style.

Implements INativeWnd.

Definition at line 934 of file SNativeWnd.cpp.

◆ GetHwnd()

HWND SNativeWnd::GetHwnd ( )

Retrieves the handle to the window.

Returns: HWND Handle to the window.

Implements INativeWnd.

Definition at line 237 of file SNativeWnd.cpp.

◆ GetID()

int SNativeWnd::GetID ( )

inline

Retrieves the window ID.

Returns: int Window ID.

Definition at line 155 of file SNativeWnd.h.

◆ GetMsgHandler()

MsgHandlerInfo * SNativeWnd::GetMsgHandler ( )

Retrieves the message handler for the window.

Returns: MsgHandlerInfo* Pointer to the message handler information.

Implements INativeWnd.

Definition at line 963 of file SNativeWnd.cpp.

◆ GetParent()

HWND SNativeWnd::GetParent ( )

Retrieves the handle to the parent window.

Returns: HWND Handle to the parent window.

Implements INativeWnd.

Definition at line 916 of file SNativeWnd.cpp.

◆ GetStyle()

DWORD SNativeWnd::GetStyle ( )

Retrieves the window style.

Returns: DWORD Window style.

Implements INativeWnd.

Definition at line 940 of file SNativeWnd.cpp.

◆ GetWindowDC()

HDC SNativeWnd::GetWindowDC ( )

Retrieves a device context for the entire window.

Returns: HDC Handle to the device context.

Implements INativeWnd.

Definition at line 799 of file SNativeWnd.cpp.

◆ GetWindowLongPtr()

LONG_PTR SNativeWnd::GetWindowLongPtr ( int nIndex )

Retrieves the long pointer value at the specified index.

Parameters

nIndex Index of the value to retrieve.

Returns: LONG_PTR Long pointer value.

Implements INativeWnd.

Definition at line 928 of file SNativeWnd.cpp.

◆ GetWindowRect()

BOOL SNativeWnd::GetWindowRect ( LPRECT lpRect )

Retrieves the window rectangle.

Parameters

lpRect Rectangle to receive the window rectangle.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 869 of file SNativeWnd.cpp.

◆ GetWindowText()

int SNativeWnd::GetWindowText	(	LPTSTR	lpszStringBuf,
		int	nMaxCount )

Retrieves the window text.

Parameters

lpszStringBuf	Buffer to receive the window text.
nMaxCount	Maximum number of characters to copy to the buffer.

Returns: int Length of the string copied to the buffer, not including the terminating null character.

Implements INativeWnd.

Definition at line 723 of file SNativeWnd.cpp.

◆ HideCaret()

BOOL SNativeWnd::HideCaret ( )

Hides the caret.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 781 of file SNativeWnd.cpp.

◆ InitWndClass()

void SNativeWnd::InitWndClass	(	HINSTANCE	hInst,
		LPCTSTR	pszSimpleWndName,
		BOOL	bImeWnd )

static

Initializes the window class.

Parameters

hInst	Handle to the application instance.
pszSimpleWndName	Name of the simple window class.
bImeWnd	Flag indicating if the window uses IME.

Definition at line 214 of file SNativeWnd.cpp.

◆ Invalidate()

BOOL SNativeWnd::Invalidate ( BOOL bErase = TRUE )

Invalidates the entire window.

Parameters

bErase Flag indicating if the background should be erased.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 881 of file SNativeWnd.cpp.

◆ InvalidateRect()

BOOL SNativeWnd::InvalidateRect	(	LPCRECT	lpRect,
		BOOL	bErase = TRUE )

Invalidates a specified rectangle of the window.

Parameters

lpRect	Rectangle to invalidate.
bErase	Flag indicating if the background should be erased.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 875 of file SNativeWnd.cpp.

◆ IsIconic()

BOOL SNativeWnd::IsIconic ( )

Checks if the window is iconic (minimized).

Returns: BOOL TRUE if the window is iconic, FALSE otherwise.

Implements INativeWnd.

Definition at line 717 of file SNativeWnd.cpp.

◆ IsWindow()

BOOL SNativeWnd::IsWindow ( )

Checks if the handle is a valid window handle.

Returns: BOOL TRUE if valid, FALSE otherwise.

Implements INativeWnd.

Definition at line 887 of file SNativeWnd.cpp.

◆ IsWindowEnabled()

BOOL SNativeWnd::IsWindowEnabled ( )

Checks if the window is enabled.

Returns: BOOL TRUE if the window is enabled, FALSE otherwise.

Implements INativeWnd.

Definition at line 904 of file SNativeWnd.cpp.

◆ IsWindowVisible()

BOOL SNativeWnd::IsWindowVisible ( )

Checks if the window is visible.

Returns: BOOL TRUE if the window is visible, FALSE otherwise.

Implements INativeWnd.

Definition at line 705 of file SNativeWnd.cpp.

◆ IsZoomed()

BOOL SNativeWnd::IsZoomed ( )

Checks if the window is zoomed (maximized).

Returns: BOOL TRUE if the window is zoomed, FALSE otherwise.

Implements INativeWnd.

Definition at line 711 of file SNativeWnd.cpp.

◆ KillTimer()

BOOL SNativeWnd::KillTimer ( UINT_PTR nIDEvent )

Kills a timer for the window.

Parameters

nIDEvent Timer ID.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 811 of file SNativeWnd.cpp.

◆ MapWindowPoints()

int SNativeWnd::MapWindowPoints	(	HWND	hWndTo,
		LPPOINT	lpPoint,
		UINT	nCount )

Maps points from one window to another.

Parameters

hWndTo	Handle to the destination window.
lpPoint	Points to map.
nCount	Number of points.

Returns: int Number of points mapped.

Implements INativeWnd.

Definition at line 829 of file SNativeWnd.cpp.

◆ MapWindowRect()

int SNativeWnd::MapWindowRect	(	HWND	hWndTo,
		LPRECT	lpRect )

Maps a rectangle from one window to another.

Parameters

hWndTo	Handle to the destination window.
lpRect	Rectangle to map.

Returns: int Number of points mapped.

Implements INativeWnd.

Definition at line 823 of file SNativeWnd.cpp.

◆ ModifyStyle()

BOOL SNativeWnd::ModifyStyle	(	DWORD	dwRemove,
		DWORD	dwAdd,
		UINT	nFlags = 0 )

Modifies the window style.

Parameters

dwRemove	Styles to remove.
dwAdd	Styles to add.
nFlags	Flags for modification.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 623 of file SNativeWnd.cpp.

◆ ModifyStyleEx()

BOOL SNativeWnd::ModifyStyleEx	(	DWORD	dwRemove,
		DWORD	dwAdd,
		UINT	nFlags = 0 )

Modifies the extended window style.

Parameters

dwRemove	Styles to remove.
dwAdd	Styles to add.
nFlags	Flags for modification.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 641 of file SNativeWnd.cpp.

◆ MoveWindow()

BOOL SNativeWnd::MoveWindow	(	int	x,
		int	y,
		int	nWidth,
		int	nHeight,
		BOOL	bRepaint = TRUE )

Moves the window to the specified position and resizes it.

Parameters

x	X position of the window.
y	Y position of the window.
nWidth	Width of the window.
nHeight	Height of the window.
bRepaint	Flag indicating if the window should be repainted.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 699 of file SNativeWnd.cpp.

◆ MoveWindow2()

BOOL SNativeWnd::MoveWindow2	(	LPCRECT	lpRect,
		BOOL	bRepaint = TRUE )

Moves the window to the specified position and resizes it using a rectangle.

Parameters

lpRect	Rectangle defining the new position and size of the window.
bRepaint	Flag indicating if the window should be repainted.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 693 of file SNativeWnd.cpp.

◆ OnFinalMessage()

void SNativeWnd::OnFinalMessage ( HWND hWnd )

protectedvirtual

Handles the final message for the window.

Parameters

hWnd	Handle to the window.

Reimplemented in SDropDownWnd, and STipCtrl.

Definition at line 242 of file SNativeWnd.cpp.

◆ PostMessage()

BOOL SNativeWnd::PostMessage	(	UINT	message,
		WPARAM	wParam = 0,
		LPARAM	lParam = 0 )

Posts a message to the window.

Parameters

message	Message to post.
wParam	WPARAM for the message.
lParam	LPARAM for the message.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 741 of file SNativeWnd.cpp.

◆ ProcessWindowMessage()

BOOL SNativeWnd::ProcessWindowMessage	(	HWND	hWnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam,
		LRESULT &	lResult,
		DWORD	dwMsgMapID = 0 )

virtual

Processes a window message.

Parameters

hWnd	Handle to the window.
uMsg	Message identifier.
wParam	WPARAM for the message.
lParam	LPARAM for the message.
lResult	Result of the message processing.
dwMsgMapID	Message map ID.

Returns: BOOL TRUE if the message was handled, FALSE otherwise.

Reimplemented in SMessageBoxImpl.

Definition at line 660 of file SNativeWnd.cpp.

◆ ReflectNotifications()

LRESULT SNativeWnd::ReflectNotifications	(	UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam,
		BOOL &	bHandled )

Reflects notifications to the appropriate handler.

Parameters

uMsg	Message identifier.
wParam	WPARAM for the message.
lParam	LPARAM for the message.
bHandled	Flag indicating if the message was handled.

Returns: LRESULT Result of the message processing.

Definition at line 408 of file SNativeWnd.cpp.

◆ RegisterSimpleWnd()

ATOM SNativeWnd::RegisterSimpleWnd	(	HINSTANCE	hInst,
		LPCTSTR	pszSimpleWndName,
		BOOL	bImeWnd )

static

Registers a simple window class.

Parameters

hInst	Handle to the application instance.
pszSimpleWndName	Name of the simple window class.
bImeWnd	Flag indicating if the window uses IME.

Returns: ATOM Atom for the registered window class.

Definition at line 202 of file SNativeWnd.cpp.

◆ ReleaseCapture()

BOOL SNativeWnd::ReleaseCapture ( )

Releases the mouse capture.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 770 of file SNativeWnd.cpp.

◆ ReleaseDC()

int SNativeWnd::ReleaseDC ( HDC hDC )

Releases a device context.

Parameters

hDC	Handle to the device context to release.

Returns: int Number of times the device context was released.

Implements INativeWnd.

Definition at line 793 of file SNativeWnd.cpp.

◆ ScreenToClient()

BOOL SNativeWnd::ScreenToClient ( LPPOINT lpPoint )

Converts screen coordinates to client coordinates.

Parameters

lpPoint Point to convert.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 843 of file SNativeWnd.cpp.

◆ ScreenToClient2()

BOOL SNativeWnd::ScreenToClient2 ( LPRECT lpRect )

Converts screen rectangle coordinates to client coordinates.

Parameters

lpRect Rectangle to convert.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 835 of file SNativeWnd.cpp.

◆ SendMessage()

LRESULT SNativeWnd::SendMessage	(	UINT	message,
		WPARAM	wParam = 0,
		LPARAM	lParam = 0 )

Sends a message to the window.

Parameters

message	Message to send.
wParam	WPARAM for the message.
lParam	LPARAM for the message.

Returns: LRESULT Result of the message processing.

Implements INativeWnd.

Definition at line 747 of file SNativeWnd.cpp.

◆ SendNotifyMessage()

BOOL SNativeWnd::SendNotifyMessage	(	UINT	message,
		WPARAM	wParam = 0,
		LPARAM	lParam = 0 )

Sends a notify message to the window.

Parameters

message	Message to send.
wParam	WPARAM for the message.
lParam	LPARAM for the message.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 735 of file SNativeWnd.cpp.

◆ SetCapture()

HWND SNativeWnd::SetCapture ( )

Sets the window to capture the mouse.

Returns: HWND Handle to the previous capturing window.

Implements INativeWnd.

Definition at line 759 of file SNativeWnd.cpp.

◆ SetFocus()

HWND SNativeWnd::SetFocus ( )

Sets the input focus to the window.

Returns: HWND Handle to the previous focused window.

Implements INativeWnd.

Definition at line 753 of file SNativeWnd.cpp.

◆ SetID()

void SNativeWnd::SetID ( int nID )

inline

Sets the window ID.

Parameters

nID	New window ID.

Definition at line 165 of file SNativeWnd.h.

◆ SetLayeredWindowAttributes()

BOOL SNativeWnd::SetLayeredWindowAttributes	(	COLORREF	crKey,
		BYTE	bAlpha,
		DWORD	dwFlags )

Sets the layered window attributes.

Parameters

crKey	Color key for transparency.
bAlpha	Alpha value for transparency.
dwFlags	Flags for the layered window attributes.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 675 of file SNativeWnd.cpp.

◆ SetMsgHandler()

void SNativeWnd::SetMsgHandler	(	FunMsgHandler	fun,
		void *	ctx )

Sets the message handler for the window.

Parameters

fun	Function pointer to the message handler.
ctx	Context pointer for the message handler.

Implements INativeWnd.

Definition at line 957 of file SNativeWnd.cpp.

◆ SetParent()

HWND SNativeWnd::SetParent ( HWND hWndNewParent )

Sets the handle to the parent window.

Parameters

hWndNewParent Handle to the new parent window.

Returns: HWND Handle to the previous parent window.

Implements INativeWnd.

Definition at line 910 of file SNativeWnd.cpp.

◆ SetTimer()

UINT_PTR SNativeWnd::SetTimer	(	UINT_PTR	nIDEvent,
		UINT	nElapse,
		void(CALLBACK *lpfnTimer)(HWND, UINT, UINT_PTR, DWORD)	= NULL )

Sets a timer for the window.

Parameters

nIDEvent	Timer ID.
nElapse	Elapse time in milliseconds.
lpfnTimer	Timer callback function.

Returns: UINT_PTR Timer ID.

Implements INativeWnd.

Definition at line 817 of file SNativeWnd.cpp.

◆ SetWindowLongPtr()

LONG_PTR SNativeWnd::SetWindowLongPtr	(	int	nIndex,
		LONG_PTR	dwNewLong )

Sets the long pointer value at the specified index.

Parameters

nIndex	Index of the value to set.
dwNewLong	New long pointer value.

Returns: LONG_PTR Previous long pointer value.

Implements INativeWnd.

Definition at line 922 of file SNativeWnd.cpp.

◆ SetWindowPos()

BOOL SNativeWnd::SetWindowPos	(	HWND	hWndInsertAfter,
		int	x,
		int	y,
		int	cx,
		int	cy,
		UINT	nFlags )

Sets the window position.

Parameters

hWndInsertAfter	Handle to the window to insert after.
x	X position of the window.
y	Y position of the window.
cx	Width of the window.
cy	Height of the window.
nFlags	Flags for positioning.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 898 of file SNativeWnd.cpp.

◆ SetWindowRgn()

int SNativeWnd::SetWindowRgn	(	HRGN	hRgn,
		BOOL	bRedraw = TRUE )

Sets the window region.

Parameters

hRgn	Handle to the region.
bRedraw	Flag indicating if the window should be redrawn.

Returns: int Previous region handle.

Implements INativeWnd.

Definition at line 681 of file SNativeWnd.cpp.

◆ SetWindowText()

BOOL SNativeWnd::SetWindowText ( LPCTSTR lpszString )

Sets the window text.

Parameters

lpszString String to set as the window text.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 729 of file SNativeWnd.cpp.

◆ ShowCaret()

BOOL SNativeWnd::ShowCaret ( )

Shows the caret.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 775 of file SNativeWnd.cpp.

◆ ShowWindow()

BOOL SNativeWnd::ShowWindow ( int nCmdShow )

Sets the show state of the window.

Parameters

nCmdShow Command to show the window (e.g., SW_SHOW, SW_HIDE).

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 687 of file SNativeWnd.cpp.

◆ StartWindowProc()

LRESULT CALLBACK SNativeWnd::StartWindowProc	(	HWND	hWnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam )

staticprotected

Start window procedure callback function (executed once).

Parameters

hWnd	Handle to the window.
uMsg	Message identifier.
wParam	WPARAM for the message.
lParam	LPARAM for the message.

Returns: LRESULT Result of the message processing.

Definition at line 310 of file SNativeWnd.cpp.

◆ SubclassWindow()

BOOL SNativeWnd::SubclassWindow ( HWND hWnd )

Subclasses an existing window.

Parameters

hWnd	Handle to the window to subclass.

Returns: BOOL TRUE–SUCCEEDED, FALSE–FAILED.

Implements INativeWnd.

Definition at line 330 of file SNativeWnd.cpp.

◆ UnsubclassWindow()

HWND SNativeWnd::UnsubclassWindow ( BOOL bForce = FALSE )

Unsubclasses a window.

Parameters

bForce Flag indicating if the unsubclassing should be forced.

Returns: HWND Handle to the unsubclassed window.

Implements INativeWnd.

Definition at line 356 of file SNativeWnd.cpp.

◆ UpdateLayeredWindow()

BOOL SNativeWnd::UpdateLayeredWindow	(	HDC	hdcDst,
		POINT *	pptDst,
		SIZE *	psize,
		HDC	hdcSrc,
		POINT *	pptSrc,
		COLORREF	crKey,
		BLENDFUNCTION *	pblend,
		DWORD	dwFlags )

Updates the layered window.

Parameters

hdcDst	Destination device context.
pptDst	Destination point.
psize	Size of the destination.
hdcSrc	Source device context.
pptSrc	Source point.
crKey	Color key for transparency.
pblend	Blend function.
dwFlags	Flags for the update.

Returns: BOOL TRUE if successful, FALSE otherwise.

Implements INativeWnd.

Definition at line 665 of file SNativeWnd.cpp.

◆ WindowProc()

LRESULT CALLBACK SNativeWnd::WindowProc	(	HWND	hWnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam )

staticprotected

Window procedure callback function.

Parameters

hWnd	Handle to the window.
uMsg	Message identifier.
wParam	WPARAM for the message.
lParam	LPARAM for the message.

Returns: LRESULT Result of the message processing.

Definition at line 254 of file SNativeWnd.cpp.

Member Data Documentation

◆ m_bDestoryed

BOOL SNativeWnd::m_bDestoryed

protected

Flag indicating if the window is destroyed.

Definition at line 740 of file SNativeWnd.h.

◆ m_hWnd

HWND SNativeWnd::m_hWnd

Handle to the window.

Definition at line 744 of file SNativeWnd.h.

◆ m_msgHandlerInfo

MsgHandlerInfo SNativeWnd::m_msgHandlerInfo

protected

Message handler information.

Definition at line 741 of file SNativeWnd.h.

◆ m_pCurrentMsg

const MSG* SNativeWnd::m_pCurrentMsg

protected

Pointer to the current message.

Definition at line 739 of file SNativeWnd.h.

◆ m_pfnSuperWindowProc

WNDPROC SNativeWnd::m_pfnSuperWindowProc

protected

Pointer to the superclass window procedure.

Definition at line 769 of file SNativeWnd.h.

◆ m_pThunk

tagThunk* SNativeWnd::m_pThunk

protected

Thunk structure.

Definition at line 768 of file SNativeWnd.h.

The documentation for this class was generated from the following files:

SOUI/include/core/SNativeWnd.h
SOUI/src/core/SNativeWnd.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SNativeWnd()

◆ ~SNativeWnd()

Member Function Documentation

◆ CenterWindow()

◆ ClientToScreen()

◆ ClientToScreen2()

◆ CreateCaret()

◆ CreateNative()

◆ DefaultReflectionHandler()

◆ DefWindowProc() [1/2]

◆ DefWindowProc() [2/2]

◆ DestroyWindow()

◆ ForwardNotifications()

◆ GetCapture()

◆ GetClientRect()

◆ GetCurrentMessage()

◆ GetDC()

◆ GetDlgCtrlID()

◆ GetExStyle()

◆ GetHwnd()

◆ GetID()

◆ GetMsgHandler()

◆ GetParent()

◆ GetStyle()

◆ GetWindowDC()

◆ GetWindowLongPtr()

◆ GetWindowRect()

◆ GetWindowText()

◆ HideCaret()

◆ InitWndClass()

◆ Invalidate()

◆ InvalidateRect()

◆ IsIconic()

◆ IsWindow()

◆ IsWindowEnabled()

◆ IsWindowVisible()

◆ IsZoomed()

◆ KillTimer()

◆ MapWindowPoints()

◆ MapWindowRect()

◆ ModifyStyle()

◆ ModifyStyleEx()

◆ MoveWindow()

◆ MoveWindow2()

◆ OnFinalMessage()

◆ PostMessage()

◆ ProcessWindowMessage()

◆ ReflectNotifications()

◆ RegisterSimpleWnd()

◆ ReleaseCapture()

◆ ReleaseDC()

◆ ScreenToClient()

◆ ScreenToClient2()

◆ SendMessage()

◆ SendNotifyMessage()

◆ SetCapture()

◆ SetFocus()

◆ SetID()

◆ SetLayeredWindowAttributes()

◆ SetMsgHandler()

◆ SetParent()

◆ SetTimer()

◆ SetWindowLongPtr()

◆ SetWindowPos()

◆ SetWindowRgn()

◆ SetWindowText()

◆ ShowCaret()

◆ ShowWindow()

◆ StartWindowProc()

◆ SubclassWindow()

◆ UnsubclassWindow()

◆ UpdateLayeredWindow()
