Interface for Skin Objects. More...

#include <SSkinobj-i.h>

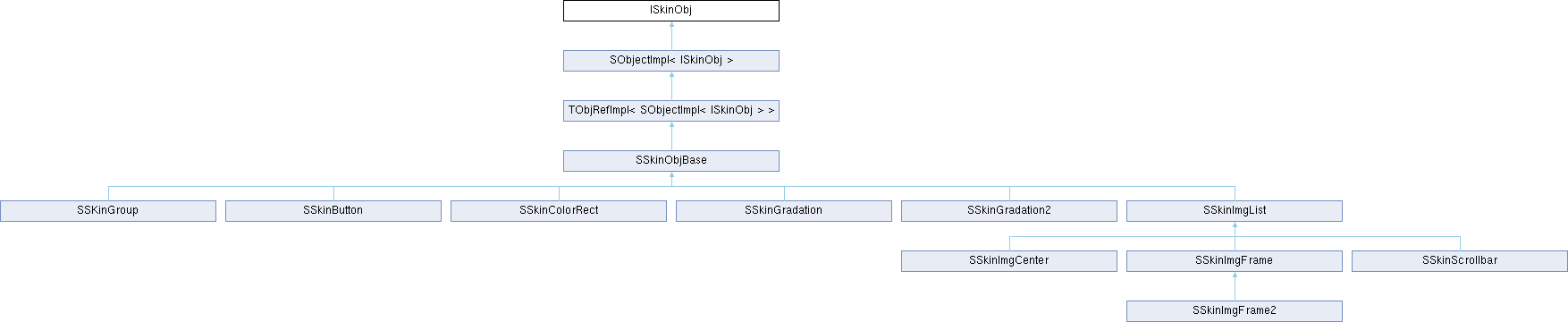

Inheritance diagram for ISkinObj:

Public Member Functions
long	AddRef () PURE
	Add reference.

long	Release () PURE
	Release reference.

void	OnFinalRelease () PURE
	Final release of the object.

BOOL	IsClass (LPCWSTR lpszName) SCONST PURE
	Checks if the object is of a specified class type.

LPCWSTR	GetObjectClass () SCONST PURE
	Retrieves the class name of the object.

int	GetObjectType () SCONST PURE
	Retrieves the type of the object.

int	GetID () SCONST PURE
	Retrieves the ID of the object.

void	SetID (int nID) PURE
	Sets the ID of the object.

LPCWSTR	GetName () SCONST PURE
	Retrieves the name of the object.

LPCSTR	GetNameA () SCONST PURE
	Retrieves the name of the object as an ANSI string.

void	SetName (LPCWSTR pszName) PURE
	Sets the name of the object.

BOOL	InitFromXml (IXmlNode *xmlNode) PURE
	Initializes the object from an XML node.

void	OnInitFinished (IXmlNode *xmlNode) PURE
	Handles the completion of attribute initialization.

HRESULT	ISetAttribute (const IStringW strAttribName, const IStringW strValue, BOOL bLoading) PURE
	Sets an attribute of the object.

HRESULT	SetAttributeA (LPCSTR pszAttr, LPCSTR pszValue, BOOL bLoading=FALSE) PURE
	Sets an attribute of the object using ANSI strings.

HRESULT	SetAttribute (LPCWSTR pszAttr, LPCWSTR pszValue, BOOL bLoading=FALSE) PURE
	Sets an attribute of the object using wide strings.

BOOL	GetAttribute (LPCWSTR strAttr, IStringW *pValue) SCONST PURE
	Retrieves the value of an attribute by its name.

HRESULT	AfterAttribute (LPCWSTR pszAttr, LPCWSTR pszValue, BOOL bLoading, HRESULT hr) PURE
	Handles the completion of attribute processing.

void	SetAttrHandler (FunAttrHandler attrHandler) PURE
	Sets the attribute handler callback function.

void	DrawByState2 (IRenderTarget *pRT, LPCRECT rcDraw, DWORD dwState, BYTE byAlpha) SCONST PURE
	Draws the skin object to the specified render target with a given state and transparency.

void	DrawByState (IRenderTarget *pRT, LPCRECT rcDraw, DWORD dwState) SCONST PURE
	Draws the skin object to the specified render target with a given state.

void	DrawByIndex2 (IRenderTarget *pRT, LPCRECT rcDraw, int iState, BYTE byAlpha) SCONST PURE
	Draws the skin object to the specified render target with a given index and transparency.

void	DrawByIndex (IRenderTarget *pRT, LPCRECT rcDraw, int iState) SCONST PURE
	Draws the skin object to the specified render target with a given index.

SIZE	GetSkinSize () SCONST PURE
	Retrieves the default size of the skin object.

int	GetStates () SCONST PURE
	Retrieves the number of states contained in the skin object.

BYTE	GetAlpha () SCONST PURE
	Retrieves the transparency of the skin object.

void	SetAlpha (BYTE byAlpha) PURE
	Sets the transparency of the skin object.

void	OnColorize (COLORREF cr) PURE
	Adjusts the hue of the skin object based on a reference color.

int	GetScale () SCONST PURE
	Retrieves the scaling factor of the skin object.

void	SetScale (int scale) PURE
	Sets the scaling factor of the skin object.

ISkinObj *	Scale (int nScale) PURE
	Scales the skin object by a specified factor.

Detailed Description

Interface for Skin Objects.

This interface defines the methods for skin objects, which are used for rendering graphical elements with various states and properties such as transparency and scaling.

Definition at line 28 of file SSkinobj-i.h.

Member Function Documentation

◆ AddRef()

long ISkinObj::AddRef ( )

Add reference.

Increments the reference count of the object.

Returns: long The new reference count.

◆ AfterAttribute()

HRESULT ISkinObj::AfterAttribute	(	LPCWSTR	pszAttr,
		LPCWSTR	pszValue,
		BOOL	bLoading,
		HRESULT	hr )

Handles the completion of attribute processing.

Parameters

pszAttr	Name of the attribute.
pszValue	Value of the attribute.
bLoading	Flag indicating if the object is being created by the system.
hr	Result of the attribute processing.

Returns: HRESULT Result of the attribute processing.

◆ DrawByIndex()

void ISkinObj::DrawByIndex	(	IRenderTarget *	pRT,
		LPCRECT	rcDraw,
		int	iState )

Draws the skin object to the specified render target with a given index.

Parameters

pRT	Pointer to the render target where the skin will be drawn.
rcDraw	Rectangle defining the drawing area.
iState	Index of the skin state to draw.

Uses the alpha value obtained from the skin object's GetAlpha method.

◆ DrawByIndex2()

void ISkinObj::DrawByIndex2	(	IRenderTarget *	pRT,
		LPCRECT	rcDraw,
		int	iState,
		BYTE	byAlpha )

Draws the skin object to the specified render target with a given index and transparency.

Parameters

pRT	Pointer to the render target where the skin will be drawn.
rcDraw	Rectangle defining the drawing area.
iState	Index of the skin state to draw.
byAlpha	Transparency level (0-255).

◆ DrawByState()

void ISkinObj::DrawByState	(	IRenderTarget *	pRT,
		LPCRECT	rcDraw,
		DWORD	dwState )

Draws the skin object to the specified render target with a given state.

Parameters

pRT	Pointer to the render target where the skin will be drawn.
rcDraw	Rectangle defining the drawing area.
dwState	State of the skin to draw.

Uses the alpha value obtained from the skin object's GetAlpha method.

◆ DrawByState2()

void ISkinObj::DrawByState2	(	IRenderTarget *	pRT,
		LPCRECT	rcDraw,
		DWORD	dwState,
		BYTE	byAlpha )

Draws the skin object to the specified render target with a given state and transparency.

Parameters

pRT	Pointer to the render target where the skin will be drawn.
rcDraw	Rectangle defining the drawing area.
dwState	State of the skin to draw.
byAlpha	Transparency level (0-255).

◆ GetAlpha()

BYTE ISkinObj::GetAlpha ( )

Retrieves the transparency of the skin object.

Returns: BYTE The transparency level (0-255).

◆ GetAttribute()

BOOL ISkinObj::GetAttribute	(	LPCWSTR	strAttr,
		IStringW *	pValue )

Retrieves the value of an attribute by its name.

Parameters

strAttr	Name of the attribute.
pValue	Pointer to receive the attribute value.

Returns: BOOL TRUE if the attribute is successfully retrieved, FALSE otherwise.

◆ GetID()

int ISkinObj::GetID ( )

Retrieves the ID of the object.

Returns: int ID of the object.

◆ GetName()

LPCWSTR ISkinObj::GetName ( )

Retrieves the name of the object.

Returns: LPCWSTR Name of the object.

◆ GetNameA()

LPCSTR ISkinObj::GetNameA ( )

Retrieves the name of the object as an ANSI string.

Returns: LPCSTR Name of the object.

◆ GetObjectClass()

LPCWSTR ISkinObj::GetObjectClass ( )

Retrieves the class name of the object.

Returns: LPCWSTR Class name of the object.

This is a virtual function. Note the difference between this and GetClassName.

◆ GetObjectType()

int ISkinObj::GetObjectType ( )

Retrieves the type of the object.

Returns: int Type of the object.

This is a virtual function. Note the difference between this and GetClassType.

◆ GetScale()

int ISkinObj::GetScale ( )

Retrieves the scaling factor of the skin object.

Returns: int The scaling factor.

◆ GetSkinSize()

SIZE ISkinObj::GetSkinSize ( )

Retrieves the default size of the skin object.

Returns: SIZE The default size of the skin object.

Derived classes should implement this method based on the characteristics of the skin.

◆ GetStates()

int ISkinObj::GetStates ( )

Retrieves the number of states contained in the skin object.

Returns: int The number of states.

Default is 1.

◆ InitFromXml()

BOOL ISkinObj::InitFromXml ( IXmlNode * xmlNode )

Initializes the object from an XML node.

Parameters

xmlNode XML node containing the initialization data.

Returns: BOOL TRUE if initialization is successful, FALSE otherwise.

◆ IsClass()

BOOL ISkinObj::IsClass ( LPCWSTR lpszName )

Checks if the object is of a specified class type.

Parameters

lpszName Name of the class type to test.

Returns: BOOL TRUE if the object is of the specified class type, FALSE otherwise.

◆ ISetAttribute()

HRESULT ISkinObj::ISetAttribute	(	const IStringW *	strAttribName,
		const IStringW *	strValue,
		BOOL	bLoading )

Sets an attribute of the object.

Parameters

strAttribName	Name of the attribute.
strValue	Value of the attribute.
bLoading	Flag indicating if the object is being created by the system.

Returns: HRESULT Result of the attribute setting operation.

◆ OnColorize()

void ISkinObj::OnColorize ( COLORREF cr )

Adjusts the hue of the skin object based on a reference color.

Parameters

cr	The reference color.

Default implementation does nothing.

◆ OnFinalRelease()

void ISkinObj::OnFinalRelease ( )

Final release of the object.

Final release of the object, performing cleanup if necessary.

◆ OnInitFinished()

void ISkinObj::OnInitFinished ( IXmlNode * xmlNode )

Handles the completion of attribute initialization.

Parameters

xmlNode XML node containing the attribute data.

◆ Release()

long ISkinObj::Release ( )

Release reference.

Decrements the reference count of the object.

Returns: long The new reference count.

◆ Scale()

ISkinObj * ISkinObj::Scale ( int nScale )

Scales the skin object by a specified factor.

Parameters

nScale The scaling factor.

Returns: ISkinObj* Pointer to the scaled skin object.

◆ SetAlpha()

void ISkinObj::SetAlpha ( BYTE byAlpha )

Sets the transparency of the skin object.

Parameters

byAlpha The transparency level (0-255).

◆ SetAttrHandler()

void ISkinObj::SetAttrHandler ( FunAttrHandler attrHandler )

Sets the attribute handler callback function.

Parameters

attrHandler Callback function for attribute handling.

◆ SetAttribute()

HRESULT ISkinObj::SetAttribute	(	LPCWSTR	pszAttr,
		LPCWSTR	pszValue,
		BOOL	bLoading = FALSE )

Sets an attribute of the object using wide strings.

Parameters

pszAttr	Name of the attribute.
pszValue	Value of the attribute.
bLoading	Flag indicating if the object is being created by the system.

Returns: HRESULT Result of the attribute setting operation.

◆ SetAttributeA()

HRESULT ISkinObj::SetAttributeA	(	LPCSTR	pszAttr,
		LPCSTR	pszValue,
		BOOL	bLoading = FALSE )

Sets an attribute of the object using ANSI strings.

Parameters

pszAttr	Name of the attribute.
pszValue	Value of the attribute.
bLoading	Flag indicating if the object is being created by the system.

Returns: HRESULT Result of the attribute setting operation.

◆ SetID()

void ISkinObj::SetID ( int nID )

Sets the ID of the object.

Parameters

nID	ID to set for the object.

◆ SetName()

void ISkinObj::SetName ( LPCWSTR pszName )

Sets the name of the object.

Parameters

pszName Name to set for the object.

◆ SetScale()

void ISkinObj::SetScale ( int scale )

Sets the scaling factor of the skin object.

Parameters

scale The scaling factor.

This is an internal interface and should not be called in the business layer.

The documentation for this struct was generated from the following file:

SOUI/include/interface/SSkinobj-i.h
