SWindow Class Reference

Base class for SOUI DUI windows. More...

#include <SWnd.h>

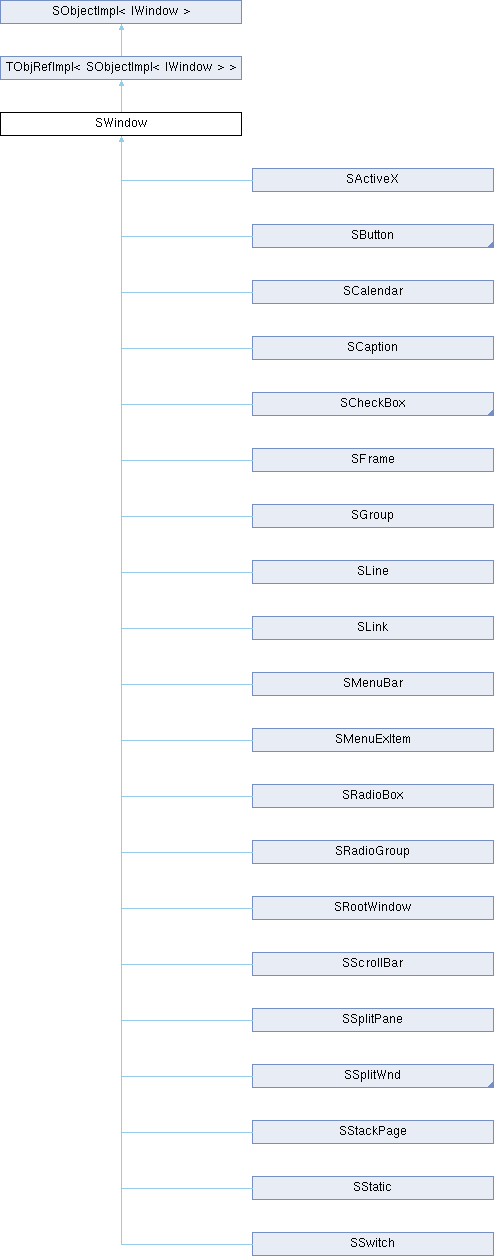

Inheritance diagram for SWindow:

Public Member Functions
	SWindow ()
	Constructor.
virtual	~SWindow ()
	Destructor.
BOOL	IsMsgHandled () const
	Checks if the message is handled.
void	SetMsgHandled (BOOL bHandled)
	Sets the message handled flag.
void	OnFinalRelease ()
	Called when the last reference to the object is released.
SWND	GetSwnd () SCONST OVERRIDE
	Retrieves the window handle.
ILayout *	GetLayout () OVERRIDE
	Retrieves the layout object associated with the window.
ILayoutParam *	GetLayoutParam () SCONST OVERRIDE
	Retrieves the layout parameter object associated with the window.
BOOL	SetLayoutParam (ILayoutParam *pLayoutParam) OVERRIDE
	Sets the layout parameter object for the window.
BOOL	IsFloat () SCONST OVERRIDE
	Checks if the window is floating.
BOOL	IsDisplay () SCONST OVERRIDE
	Checks if the window is displayed.
void	SetWindowText (LPCTSTR lpszText) OVERRIDE
	Sets the window text.
void	SetWindowTextU8 (LPCSTR lpszText) OVERRIDE
	Sets the window text using a UTF-8 string.
void	SetToolTipText (LPCTSTR pszText) OVERRIDE
	Sets the tooltip text for the window.
void	SetToolTipTextU8 (LPCSTR pszText) OVERRIDE
	Sets the tooltip text using a UTF-8 string.
BOOL	IsChecked () SCONST OVERRIDE
	Checks if the window is checked.
void	SetCheck (BOOL bCheck) OVERRIDE
	Sets the check state of the window.
BOOL	IsDisabled (BOOL bCheckParent=FALSE) SCONST OVERRIDE
	Checks if the window is disabled.
void	EnableWindow (BOOL bEnable, BOOL bUpdate=FALSE) OVERRIDE
	Enables or disables the window.
BOOL	IsVisible (BOOL bCheckParent=FALSE) SCONST OVERRIDE
	Checks if the window is visible.
void	SetVisible (BOOL bVisible, BOOL bUpdate=FALSE) OVERRIDE
	Sets the visibility of the window.
BOOL	IsMsgTransparent () SCONST OVERRIDE
	Checks if the window is message transparent.
ULONG_PTR	GetUserData () SCONST OVERRIDE
	Retrieves the user data associated with the window.
ULONG_PTR	SetUserData (ULONG_PTR uData) OVERRIDE
	Sets the user data for the window.
void	GetWindowRect (LPRECT prect) SCONST OVERRIDE
	Retrieves the bounding rectangle of the window.
BOOL	IsVideoCanvas () SCONST OVERRIDE
	Checks if the window is a video canvas.
void	GetVisibleRect (LPRECT prect) SCONST OVERRIDE
	Retrieves the visible rectangle of the window.
void	GetClientRect (LPRECT prect) SCONST OVERRIDE
	Retrieves the client rectangle of the window.
BOOL	IsContainPoint (POINT pt, BOOL bClientOnly) SCONST OVERRIDE
	Checks if the window contains a specified point.
void	DoColorize (COLORREF cr) OVERRIDE
	Applies colorization to the window.
COLORREF	GetColorizeColor () SCONST OVERRIDE
	Retrieves the colorization color of the window.
BOOL	Destroy () OVERRIDE
	Destroys the window.
void	BringWindowToTop () OVERRIDE
	Brings the window to the top of the Z-order.
UINT	GetChildrenCount () SCONST OVERRIDE
	Retrieves the number of child windows.
LRESULT	SSendMessage (UINT uMsg, WPARAM wParam=0, LPARAM lParam=0, BOOL *pbMsgHandled=NULL) OVERRIDE
	Sends a message to the window.
void	SDispatchMessage (UINT uMsg, WPARAM wParam=0, LPARAM lParam=0) OVERRIDE
	Dispatches a message to the window.
void	SetFocus () OVERRIDE
	Sets the focus to the window.
void	KillFocus () OVERRIDE
	Kills the focus from the window.
BOOL	IsFocused () SCONST OVERRIDE
	Checks if the window has focus.
void	Invalidate () OVERRIDE
	Invalidates the entire window.
void	InvalidateRect (LPCRECT lprect) OVERRIDE
	Invalidates a specific rectangle area of the window.
void	LockUpdate () OVERRIDE
	Locks updates to the window.
void	UnlockUpdate () OVERRIDE
	Unlocks updates to the window.
BOOL	IsUpdateLocked (BOOL bCheckParent=FALSE) SCONST OVERRIDE
	Checks if updates to the window are locked.
void	Update (BOOL bForce=FALSE) OVERRIDE
	Updates the window.
void	Move (LPCRECT prect) OVERRIDE
	Moves the window to a new position and size.
void	SetWindowRgn (IRegionS *pRgn, BOOL bRedraw=TRUE) OVERRIDE
	Sets the window region.
IRegionS *	GetWindowRgn () SCONST OVERRIDE
	Retrieves the window region.
void	SetWindowPath (IPathS *pPath, BOOL bRedraw=TRUE) OVERRIDE
	Sets the window path.
IPathS *	GetWindowPath () SCONST OVERRIDE
	Retrieves the window path.
BOOL	SetTimer (char id, UINT uElapse) OVERRIDE
	Sets a timer for the window.
BOOL	KillTimer (char id) OVERRIDE
	Kills a timer for the window.
SWND	GetCapture () SCONST OVERRIDE
	Retrieves the window that has captured the mouse.
SWND	SetCapture () OVERRIDE
	Sets the window to capture the mouse.
BOOL	ReleaseCapture () OVERRIDE
	Releases the mouse capture from the window.
void	SetAnimation (IAnimation *animation) OVERRIDE
	Sets an animation for the window.
IAnimation *	GetAnimation () SCONST OVERRIDE
	Retrieves the animation object associated with the window.
void	StartAnimation (IAnimation *animation) OVERRIDE
	Starts an animation for the window.
void	ClearAnimation () OVERRIDE
	Clears the animation for the window.
void	SetAlpha (BYTE byAlpha) OVERRIDE
	Sets the alpha value for the window.
BYTE	GetAlpha () SCONST OVERRIDE
	Retrieves the alpha value of the window.
void	SetMatrix (const IMatrix *mtx) OVERRIDE
	Sets the transformation matrix for the window.
void	GetMatrix (IMatrix *mtx) SCONST OVERRIDE
	Retrieves the transformation matrix of the window.
int	GetScale () SCONST OVERRIDE
	Retrieves the scale factor of the window.
BOOL	IsSiblingsAutoGroupped () SCONST OVERRIDE
	Checks if siblings are auto-grouped.
void	RequestRelayout () OVERRIDE
	Requests a relayout of the window.
void	UpdateLayout () OVERRIDE
	Updates the layout of the window.
UINT	OnGetDlgCode () SCONST OVERRIDE
	Retrieves the dialog code for the window.
BOOL	IsFocusable () SCONST OVERRIDE
	Checks if the window is focusable.
BOOL	IsClipClient () SCONST OVERRIDE
	Checks if client area clipping is enabled.
BOOL	IsLayoutDirty () SCONST OVERRIDE
	Checks if the layout is dirty.
IWindow *	GetNextLayoutIChild (const IWindow *pCurChild) SCONST OVERRIDE
	Retrieves the next layout child window.
void	UpdateChildrenPosition () OVERRIDE
	Updates the position of child windows.
IWindow *	GetIWindow (int uCode) SCONST OVERRIDE
	Retrieves a window based on a given code.
IWindow *	GetIChild (int iChild) SCONST OVERRIDE
	Retrieves a child window by index.
IWindow *	GetIParent () SCONST OVERRIDE
	Retrieves the parent window.
IWindow *	GetIRoot () SCONST OVERRIDE
	Retrieves the root window in the hierarchy.
BOOL	IsDescendant (const IWindow *pWnd) SCONST OVERRIDE
	Checks if a window is a descendant of this window.
BOOL	AdjustIZOrder (IWindow *pInsertAfter) OVERRIDE
	Adjusts the Z-order of the window.
void	InsertIChild (IWindow *pNewChild, IWindow *pInsertAfter=NULL) OVERRIDE
	Inserts a child window into the window tree.
BOOL	RemoveIChild (IWindow *pChild) OVERRIDE
	Removes a child window from the window tree.
BOOL	DestroyIChild (IWindow *pChild) OVERRIDE
	Destroys a child window.
void	DestroyAllChildren () OVERRIDE
	Destroys all child windows.
IWindow *	FindIChildByID (int nId) OVERRIDE
	Finds a child window by its ID.
IWindow *	FindIChildByName (LPCWSTR pszName) OVERRIDE
	Finds a child window by its name.
IWindow *	FindIChildByNameA (LPCSTR pszName) OVERRIDE
	Finds a child window by its name (ANSI version).
ISwndContainer *	GetContainer () OVERRIDE
	Retrieves the container associated with this window.
void	SetContainer (ISwndContainer *pContainer) OVERRIDE
	Sets the container for the window.
void	GetChildrenLayoutRect (RECT *prc) SCONST OVERRIDE
	Retrieves the layout rectangle of the children.
void	GetDesiredSize (SIZE *psz, int nParentWid, int nParentHei) OVERRIDE
	Retrieves the desired size of the window.
void	Move2 (int x, int y, int cx=-1, int cy=-1) OVERRIDE
	Moves the window to a new position and optionally resizes it.
int	GetWindowText (TCHAR *pBuf, int nBufLen, BOOL bRawText) OVERRIDE
	Retrieves the window text.
int	GetWindowTextU8 (IStringA *pStr, BOOL bRawText) OVERRIDE
	Retrieves the window text as a UTF-8 string.
void	SetEventMute (BOOL bMute) OVERRIDE
	Sets the event mute state.
DWORD	GetState () SCONST OVERRIDE
	Retrieves the current state of the window.
DWORD	ModifyState (DWORD dwStateAdd, DWORD dwStateRemove, BOOL bUpdate=FALSE) OVERRIDE
	Modifies the state of the window.
void	SetIOwner (IWindow *pOwner) OVERRIDE
	Sets the owner window.
IWindow *	GetIOwner () SCONST OVERRIDE
	Retrieves the owner window.
BOOL	CreateChildrenFromXml (LPCWSTR pszXml) OVERRIDE
	Creates child windows from XML.
BOOL	CreateChildrenFromResId (LPCTSTR pszResId) OVERRIDE
	Creates child windows from a resource ID.
BOOL	InitFromXml (IXmlNode *pNode) OVERRIDE
	Initializes the window from an XML node.
BOOL	GetAttribute (LPCWSTR pszName, IStringW *strValue) SCONST OVERRIDE
	Retrieves an attribute value from the window.
COLORREF	GetBkgndColor () SCONST OVERRIDE
	Retrieves the background color of the window.
IWindow *	GetISelectedSiblingInGroup () OVERRIDE
	Retrieves the selected sibling window in a group.
IWindow *	GetISelectedChildInGroup () OVERRIDE
	Retrieves the selected child window in a group.
SWND	SwndFromPoint (POINT *pt, BOOL bIncludeMsgTransparent=FALSE) SCONST OVERRIDE
	Retrieves the window handle at a specified point.
BOOL	FireEvent (IEvtArgs *evt) OVERRIDE
	Fires an event.
BOOL	FireCommand () OVERRIDE
	Fires a command event.
BOOL	FireCtxMenu (POINT pt) OVERRIDE
	Fires a context menu event.
BOOL	SubscribeEvent (DWORD evtId, const IEvtSlot *pSlot) OVERRIDE
	Subscribes to an event.
BOOL	UnsubscribeEvent (DWORD evtId, const IEvtSlot *pSlot) OVERRIDE
	Unsubscribes from an event.
HRESULT	QueryInterface (REFGUID id, IObjRef **ppRet) OVERRIDE
	Queries an interface.
BOOL	AddEvent (DWORD dwEventID, LPCWSTR pszEventHandlerName) OVERRIDE
	Adds an event handler.
BOOL	RemoveEvent (DWORD dwEventID) OVERRIDE
	Removes an event handler.
BOOL	SwndProc (UINT uMsg, WPARAM wParam, LPARAM lParam, LRESULT *lResult) OVERRIDE
	Processes a window message.
void	SetSwndProc (FunSwndProc swndProc) OVERRIDE
	Sets the window procedure.
HWND	GetHostHwnd () OVERRIDE
	Retrieves the host window handle.
ITimelineHandlersMgr *	GetTimelineHandlersMgr () OVERRIDE
	Retrieves the timeline handlers manager.
BOOL	RegisterDragDrop (IDropTarget *pDragTarget) OVERRIDE
	Registers a drop target for the window.
BOOL	UnregisterDragDrop () OVERRIDE
	Unregisters a drop target for the window.
BOOL	CreateCaret (HBITMAP pBmp, int nWid, int nHeight) OVERRIDE
	Creates a caret.
void	ShowCaret (BOOL bShow) OVERRIDE
	Shows or hides the caret.
void	SetCaretPos (int x, int y) OVERRIDE
	Sets the caret position.
IAccProxy *	GetAccProxy ()
	Retrieves the accessibility proxy for the window.
void	accNotifyEvent (DWORD dwEvt)
	Notifies an accessibility event.
PSWNDMSG	GetCurMsg (void) const
	Retrieves the current message being processed.
const ISwndContainer *	GetContainer () const
	Retrieves the container associated with this window.
SWindow *	GetWindow (int uCode) const
	Retrieves a window based on a given code.
SWindow *	GetChild (int iChild) const
	Retrieves a child window by index.
SWindow *	GetParent () const
	Retrieves the parent window.
SWindow *	GetRoot () const
	Retrieves the root window in the hierarchy.
SWindow *	GetNextLayoutChild (const SWindow *pCurChild) const
	Retrieves the next layout child after a specified child.
BOOL	AdjustZOrder (SWindow *pInsertAfter)
	Adjusts the Z-order of the window.
void	InsertChild (SWindow *pNewChild, SWindow *pInsertAfter=NULL)
	Inserts a child window into the window tree.
BOOL	RemoveChild (SWindow *pChild)
	Removes a child window from the window tree.
BOOL	DestroyChild (SWindow *pChild)
	Destroys a child window.
void	SetMatrix (const SMatrix &mtx)
	Sets the transformation matrix for the window.
virtual SStringT	GetWindowText (BOOL bRawText=FALSE)
	Retrieves the text of the window.
virtual SStringT	GetToolTipText ()
	Retrieves the tooltip text of the window.
SEventSet *	GetEventSet ()
	Retrieves the event set associated with the window.
const SwndStyle &	GetStyle () const
	Retrieves the style of the window.
SwndStyle &	GetStyle ()
void	SetOwner (SWindow *pOwner)
	Sets the owner of the window.
SWindow *	GetOwner () const
	Retrieves the current owner of the window.
UINT	GetTextAlign () const
	Retrieves the text alignment of the window.
CRect	GetWindowRect () const
	Retrieves the bounding rectangle of the window.
virtual CRect	GetClientRect () const
	Retrieves the client rectangle of the window.
SWindow *	FindChildByID (int nID, int nDeep=-1)
	Finds a child window by its ID.
template<class T>
T *	GetLayoutParamT ()
	Template method to cast layout parameters to a specific type.
template<class T>
T *	FindChildByID2 (int nID, int nDeep=-1)
	Finds a child window by its ID and casts it to a specific type.
SWindow *	FindChildByName (LPCWSTR strName, int nDeep=-1)
	Finds a child window by its name.
SWindow *	FindChildByName (LPCSTR strName, int nDeep=-1)
	Overloaded method to find a child window by its name (ANSI version).
template<class T>
T *	FindChildByName2 (LPCWSTR pszName, int nDeep=-1)
	Finds a child window by its name and casts it to a specific type.
template<class T>
T *	FindChildByName2 (LPCSTR pszName, int nDeep=-1)
	Overloaded method to find a child window by its name and cast it to a specific type (ANSI version).
template<class T>
T *	FindChildByClass (int nDeep=-1) const
	Recursively finds a child window by its class type.
virtual SIZE	MeasureContent (int nParentWid, int nParentHei)
	Measures the size of the content within the window.
virtual SIZE	MeasureChildren (int nParentWid, int nParentHei)
	Measures the size of all child windows.
virtual BOOL	UpdateToolTip (CPoint pt, SwndToolTipInfo &tipInfo)
	Handle tooltip updates.
virtual SWindow *	GetSelectedSiblingInGroup ()
	Get selected sibling in group.
virtual SWindow *	GetSelectedChildInGroup ()
	Get selected child in group.
virtual BOOL	CreateChildren (SXmlNode xmlNode)
	Create child windows from XML node.
virtual SWindow *	CreateChildByName (LPCWSTR pszName)
	Create child window by name.
virtual void	RequestRelayout (SWND hSource, BOOL bSourceResizable)
	Request layout update.
virtual SStringW	tr (const SStringW &strSrc) const
	Translation function.
virtual SWND	SwndFromPoint (CPoint &pt, BOOL bIncludeMsgTransparent=false) const
	Get window from point.
virtual BOOL	OnNcHitTest (CPoint pt)
	Non-client area hit test.
virtual void	OnUpdateFloatPosition (const CRect &rcParent)
	Update floating window position.
virtual BOOL	NeedRedrawWhenStateChange ()
	Determine if redraw is needed on state change.
virtual void	GetTextRect (LPRECT pRect)
	Calculate text display rectangle.
virtual void	DrawText (IRenderTarget *pRT, LPCTSTR pszBuf, int cchText, LPRECT pRect, UINT uFormat)
	Draw text content.
virtual void	DrawFocus (IRenderTarget *pRT)
	Draw focus state.
virtual void	BeforePaint (IRenderTarget *pRT, SPainter &painter)
	Prepare rendering environment.
virtual void	AfterPaint (IRenderTarget *pRT, SPainter &painter)
	Restore rendering environment.
virtual LPCWSTR	GetTrCtx () const
	Get translation context.
void	RedrawRegion (IRenderTarget *pRT, IRegionS *pRgn)
	Renders the content of the window and its child windows onto the RenderTarget.
IRenderTarget *	GetRenderTarget (LPCRECT pRc=NULL, GrtFlag gdcFlags=GRT_NODRAW, BOOL bClientRT=TRUE)
	Retrieves a memory DC compatible with the SWND window.
IRenderTarget *	GetRenderTarget (GrtFlag gdcFlags, IRegionS *pRgn)
	Retrieves a memory DC compatible with the SWND window.
void	ReleaseRenderTarget (IRenderTarget *pRT)
	Releases the RenderTarget obtained via GetRenderTarget.
void	PaintBackground (IRenderTarget *pRT, LPRECT pRc)
	Draws the background content of the window.
void	PaintForeground (IRenderTarget *pRT, LPRECT pRc, SWindow *pStartFrom=NULL)
	Draws the foreground content of the window.
void	BeforePaintEx (IRenderTarget *pRT)
	Prepares the drawing environment for the current window's RenderTarget, starting from the top-level window.
void	TransformPoint (CPoint &pt) const
	Transforms a point based on the current window's transformation matrix.
void	TransformPointEx (CPoint &pt) const
	Extends the transformation of a point.
BOOL	FireEvent (SEvtArgs &evt)
	Fires an event.
Public Member Functions inherited from TObjRefImpl< SObjectImpl< IWindow > >
	TObjRefImpl ()
	Constructor that initializes the reference count to 1.
virtual	~TObjRefImpl ()
	Virtual destructor.
long	AddRef () override
	Increments the reference count.
long	Release () override
	Decrements the reference count and deletes the object if the count reaches zero.
void	OnFinalRelease () override
	Deletes the object.
Public Member Functions inherited from SObjectImpl< IWindow >
	SObjectImpl ()
	Constructor.
BOOL	InitFromXml (IXmlNode *pXmlNode) OVERRIDE
	Initializes the object from an XML node.
LPCWSTR	GetName () SCONST OVERRIDE
	Retrieves the object's name.
LPCSTR	GetNameA () SCONST OVERRIDE
	Retrieves the object's name in ANSI format.
void	SetName (LPCWSTR pszName) OVERRIDE
	Sets the object's name.
int	GetID () SCONST OVERRIDE
	Retrieves the object's ID.
void	SetID (int nID) OVERRIDE
	Sets the object's ID.
HRESULT	AfterAttribute (LPCWSTR strAttribName, LPCWSTR strValue, BOOL bLoading, HRESULT hr) OVERRIDE
	Handles attribute processing after setting an attribute.
HRESULT	SetAttributeA (LPCSTR pszAttr, LPCSTR pszValue, BOOL bLoading) OVERRIDE
	Sets an attribute using ANSI strings.
HRESULT	SetAttribute (LPCWSTR pszAttr, LPCWSTR pszValue, BOOL bLoading) OVERRIDE
	Sets an attribute using wide strings.
virtual HRESULT	SetAttribute (const SStringW &strAttr, const SStringW &strValue, BOOL bLoading)
	Sets an attribute using wide strings.
HRESULT	ISetAttribute (const IStringW *strAttr, const IStringW *strValue, BOOL bLoading) OVERRIDE
	Sets an attribute using IStringW objects.
LPCWSTR	GetObjectClass () SCONST OVERRIDE
	Retrieves the object's class name.
int	GetObjectType () SCONST OVERRIDE
	Retrieves the object's type.
BOOL	IsClass (LPCWSTR lpszName) SCONST OVERRIDE
	Checks if the object is of a specific class.
BOOL	GetAttribute (LPCWSTR strAttr, IStringW *pValue) SCONST OVERRIDE
	Retrieves an attribute value.
void	OnInitFinished (IXmlNode *xmlNode) OVERRIDE
	Handles initialization completion.
void	SetAttrHandler (FunAttrHandler attrHandler) OVERRIDE
	Sets the attribute handler.

Static Public Member Functions
static SStringW	GetXmlText (const SXmlNode &xmlNode)
	Gets the XML text from a node.
Static Public Member Functions inherited from SObjectImpl< IWindow >
static int	GetClassType ()
	Retrieves the class type.
static LPCWSTR	GetClassName ()
	Retrieves the class name.
static LPCWSTR	GetClassAlias ()
	Retrieves the class alias.
static void	MarkAttributeHandled (SXmlAttr xmlAttr, bool bHandled)
	Marks an attribute as handled.
static bool	IsAttributeHandled (SXmlAttr xmlAttr)
	Checks if an attribute is handled.

Protected Types
enum	LayoutDirtyType { dirty_clean = 0 , dirty_self = 1 , dirty_child = 2 }
	Enumerates the types of layout dirty states. More...
typedef struct SWindow::GETRTDATA *	PGETRTDATA

Protected Member Functions
IScriptModule *	GetScriptModule ()
	Retrieves the script module interface.
void	InvalidateRect (const CRect &rect, BOOL bFromThis=TRUE, BOOL bClip=FALSE)
	Invalidates a specific rectangle area of the window.
STransformation	GetTransformation () const
	Retrieves the current transformation matrix of the window.
BOOL	CreateChild (SXmlNode xmlChild)
	Creates a child window from an XML node.
void	CreateChilds (SXmlNode xmlNode)
	Creates multiple child windows from XML nodes.
void	OnAnimationStart (IAnimation *animation)
	Called when an animation starts.
void	OnAnimationStop (IAnimation *animation)
	Called when an animation stops.
void	OnAnimationRepeat (IAnimation *animation)
	Called when an animation repeats.
void	OnAnimationPauseChange (IAnimation *animation, BOOL bPaused)
	Called when the pause state of an animation changes.
virtual void	OnAnimationInvalidate (IAnimation *pAni, bool bErase)
	Called when an animation requires a redraw.
virtual void	OnContentChanged ()
	Called when the content of the window changes.
virtual void	OnColorize (COLORREF cr)
	Adjusts the color tone of the window.
virtual BOOL	OnSetCursor (const CPoint &pt)
	Sets the cursor when the mouse hovers over the window.
virtual void	OnStateChanging (DWORD dwOldState, DWORD dwNewState)
	Called before the state of the window changes.
virtual void	OnStateChanged (DWORD dwOldState, DWORD dwNewState)
	Called after the state of the window changes.
virtual void	OnCaptureChanged (BOOL bCaptured)
	Called when the capture state of the window changes.
virtual BOOL	OnRelayout (const CRect &rcWnd)
	Handles window position changes during layout updates.
bool	IsCacheDirty () const
	Checks if the cache is marked as dirty.
void	MarkCacheDirty (bool bDirty)
	Marks the cache as dirty.
virtual bool	IsDrawToCache () const
	Checks if the window content is being drawn to the cache.
virtual BOOL	IsLayeredWindow () const
	Determines if the window requires a render layer.
virtual void	DispatchPaint (IRenderTarget *pRT, IRegionS *pRgn, UINT iZorderBegin, UINT iZorderEnd)
	Handles paint dispatching for the window.
virtual void	OnCommitSurface (IRenderTarget *pRtDest, LPCRECT pRcDest, IRenderTarget *pRtSrc, LPCRECT pRcSrc, BYTE alpha)
	Commits surface changes.
virtual SWindow *	_FindChildByID (int nID, int nDeep)
	Finds a child window by ID.
virtual SWindow *	_FindChildByName (const SStringW &strName, int nDeep)
	Finds a child window by name.
SWindow *	_GetCurrentLayeredWindow ()
	Retrieves the host window for the current render layer.
bool	_ApplyMatrix (IRenderTarget *pRT, SMatrix &oriMtx)
	Applies a transformation matrix to the RenderTarget.
SMatrix	_GetMatrixEx () const
	Retrieves the extended transformation matrix for the window.
bool	_WndRectInRgn (const CRect &rc, const IRegionS *rgn) const
	Checks if the window rectangle lies within a specified region.
void	_PaintClient (IRenderTarget *pRT)
	Renders the client area of the window onto the RenderTarget.
void	_PaintNonClient (IRenderTarget *pRT)
	Renders the non-client area of the window onto the RenderTarget.
void	_RedrawNonClient ()
	Redraws the non-client area of the window.
void	_PaintRegion (IRenderTarget *pRT, IRegionS *pRgn, UINT iZorderBegin, UINT iZorderEnd)
	Renders a specific region of the window onto the RenderTarget.
void	_PaintChildren (IRenderTarget *pRT, IRegionS *pRgn, UINT iBeginZorder, UINT iEndZorder)
	Renders child windows within a specific Z-order range.
void	DrawDefFocusRect (IRenderTarget *pRT, CRect rc)
	Draws the default focus rectangle.
void	UpdateCacheMode ()
	Updates the cache mode for the window.
void	TestMainThread ()
	Tests if the current thread is the main UI thread.
void	GetScaleSkin (SAutoRefPtr< ISkinObj > &pSkin, int nScale)
	Retrieves a scaled skin object based on the current scale factor.
int	OnCreate (LPVOID)
	Handles the creation of the window.
void	OnSize (UINT nType, CSize size)
	Handles the resizing of the window.
void	OnDestroy ()
	Handles the destruction of the window.
BOOL	OnEraseBkgnd (IRenderTarget *pRT)
	Handles the erasing of the background.
void	OnPaint (IRenderTarget *pRT)
	Handles the painting of the window.
void	OnNcPaint (IRenderTarget *pRT)
	Handles the painting of the non-client area.
void	OnShowWindow (BOOL bShow, UINT nStatus)
	Handles showing or hiding the window.
void	OnEnable (BOOL bEnable, UINT nStatus)
	Handles enabling or disabling the window.
void	OnLButtonDown (UINT nFlags, CPoint pt)
	Handles the left mouse button down event.
void	OnLButtonDbClick (UINT nFlags, CPoint point)
	Handles the left mouse button double-click event.
void	OnLButtonUp (UINT nFlags, CPoint pt)
	Handles the left mouse button up event.
void	OnRButtonDown (UINT nFlags, CPoint point)
	Handles the right mouse button down event.
void	OnRButtonUp (UINT nFlags, CPoint point)
	Handles the right mouse button up event.
void	OnMouseHover (UINT nFlags, CPoint ptPos)
	Handles the mouse hover event.
void	OnMouseMove (UINT nFlags, CPoint pt)
	Handles the mouse move event.
void	OnMouseLeave ()
	Handles the mouse leave event.
BOOL	OnMouseWheel (UINT nFlags, short zDelta, CPoint pt)
	Handles the mouse wheel event.
LRESULT	OnMouseClick (UINT uMsg, WPARAM wParam, LPARAM lParam)
	Handles general mouse click events.
void	OnSetFocus (SWND wndOld)
	Handles gaining focus.
void	OnKillFocus (SWND wndFocus)
	Handles losing focus.
LRESULT	OnSetScale (UINT uMsg, WPARAM wParam, LPARAM lParam)
	Handles setting the scale of the window.
LRESULT	OnSetLanguage (UINT uMsg, WPARAM wParam, LPARAM lParam)
	Handles setting the language of the window.
LRESULT	OnSetColorize (UINT uMsg, WPARAM wParam, LPARAM lParam)
	Handles setting the colorization of the window.
LRESULT	OnUpdateFont (UINT uMsg, WPARAM wParam, LPARAM lParam)
	Handles updating the font of the window.
HRESULT	OnAttrVisible (const SStringW &strValue, BOOL bLoading)
	Handles the 'visible' attribute.
HRESULT	OnAttrEnable (const SStringW &strValue, BOOL bLoading)
	Handles the 'enable' attribute.
HRESULT	OnAttrDisplay (const SStringW &strValue, BOOL bLoading)
	Handles the 'display' attribute.
HRESULT	OnAttrCache (const SStringW &strValue, BOOL bLoading)
	Handles the 'cache' attribute.
HRESULT	OnAttrAlpha (const SStringW &strValue, BOOL bLoading)
	Handles the 'alpha' attribute.
HRESULT	OnAttrSkin (const SStringW &strValue, BOOL bLoading)
	Handles the 'skin' attribute.
HRESULT	OnAttrLayout (const SStringW &strValue, BOOL bLoading)
	Handles the 'layout' attribute.
HRESULT	OnAttrClass (const SStringW &strValue, BOOL bLoading)
	Handles the 'class' attribute.
HRESULT	OnAttrTrackMouseEvent (const SStringW &strValue, BOOL bLoading)
	Handles the 'trackMouseEvent' attribute.
HRESULT	OnAttrVideoCanvas (const SStringW &strValue, BOOL bLoading)
	Handles the 'videoCanvas' attribute.
HRESULT	OnAttrID (const SStringW &strValue, BOOL bLoading)
	Handles the 'id' attribute.
HRESULT	OnAttrName (const SStringW &strValue, BOOL bLoading)
	Handles the 'name' attribute.
HRESULT	OnAttrTip (const SStringW &strValue, BOOL bLoading)
	Handles the 'tip' attribute.
HRESULT	OnAttrText (const SStringW &strValue, BOOL bLoading)
	Handles the 'text' attribute.
HRESULT	DefAttributeProc (const SStringW &strAttribName, const SStringW &strValue, BOOL bLoading)
	Default attribute processing function.
virtual HRESULT	AfterAttribute (const SStringW &strAttribName, const SStringW &strValue, BOOL bLoading, HRESULT hr)
	Called after an attribute is processed.
virtual HRESULT	SetAttribute (const SNS::SStringW &amp;amp;amp;amp;strAttribName, const SNS::SStringW &amp;amp;amp;amp;strValue, BOOL bLoading=FALSE)
virtual HRESULT	OnLanguageChanged ()
	Called when the language of the window changes.
virtual void	OnScaleChanged (int scale)
	Called when the scale of the window changes.
virtual void	OnRebuildFont ()
	Called when the font of the window needs to be rebuilt.
virtual void	OnBeforeInsertChild (SWindow *pChild)
	Called before a child window is inserted into this window.
virtual void	OnAfterInsertChild (SWindow *pChild)
	Called after a child window has been inserted into this window.
virtual void	OnBeforeRemoveChild (SWindow *pChild)
	Called before a child window is removed from this window.
virtual void	OnAfterRemoveChild (SWindow *pChild)
	Called after a child window has been removed from this window.
virtual void	OnContainerChanged (ISwndContainer *pOldContainer, ISwndContainer *pNewContainer)
	Called when the container of the window changes.

Protected Attributes
SWND	m_swnd
	Member variables representing various properties of the window.
BOOL	m_bFloat
ISwndContainer *	m_pContainer
SEventSet	m_evtSet
SAutoRefPtr< ILayout >	m_pLayout
SAutoRefPtr< ILayoutParam >	m_pLayoutParam
SWindow *	m_pOwner
SWindow *	m_pParent
SWindow *	m_pFirstChild
SWindow *	m_pLastChild
SWindow *	m_pNextSibling
SWindow *	m_pPrevSibling
UINT	m_nChildrenCount
SWNDMSG *	m_pCurMsg
SwndStyle	m_style
STrText	m_strText
STrText	m_strToolTipText
SStringW	m_strTrCtx
UINT	m_uZorder
int	m_nUpdateLockCnt
BOOL	m_dwState
BOOL	m_bVisible
BOOL	m_bDisable
BOOL	m_bDisplay
BOOL	m_bClipClient
BOOL	m_bMsgTransparent
BOOL	m_bFocusable
BOOL	m_bDrawFocusRect
BOOL	m_bCacheDraw
BOOL	m_bCacheDirty
BOOL	m_bLayeredWindow
BOOL	m_isLoading
BOOL	m_bHoverAware
BOOL	m_bMsgHandled
LayoutDirtyType	m_layoutDirty
SAutoRefPtr< IRenderTarget >	m_cachedRT
SAutoRefPtr< IRegionS >	m_clipRgn
SAutoRefPtr< IPathS >	m_clipPath
SAutoRefPtr< ISkinObj >	m_pBgSkin
SAutoRefPtr< ISkinObj >	m_pNcSkin
ULONG_PTR	m_uData
SLayoutSize	m_nMaxWidth
COLORREF	m_crColorize
SAutoRefPtr< IAnimation >	m_animation
SAnimationHandler	m_animationHandler
STransformation	m_transform
bool	m_isAnimating
bool	m_isDestroying
PGETRTDATA	m_pGetRTData
SAutoRefPtr< IAttrStorage >	m_attrStorage
SAutoRefPtr< ICaret >	m_caret
FunSwndProc	m_funSwndProc
Protected Attributes inherited from TObjRefImpl< SObjectImpl< IWindow > >
LONG	m_cRef
	Reference count.
Protected Attributes inherited from SObjectImpl< IWindow >
SStringW	m_strName
int	m_nID
FunAttrHandler	m_attrHandler

Friends
class	SwndLayoutBuilder
class	SWindowRepos
class	SHostWnd
class	SwndContainerImpl
class	FocusSearch
class	SGridLayout
class	SLinearLayout
class	SouiLayout
class	SHostProxy

Detailed Description

Base class for SOUI DUI windows.

This class provides the basic functionality for SOUI DUI windows, including layout, event handling, and rendering.

Definition at line 284 of file SWnd.h.

Member Enumeration Documentation

LayoutDirtyType

enum SWindow::LayoutDirtyType

protected

Enumerates the types of layout dirty states.

Definition at line 2567 of file SWnd.h.

Constructor & Destructor Documentation

SWindow()

SWindow::SWindow

(

)

Constructor.

Definition at line 104 of file Swnd.cpp.

~SWindow()

SWindow::~SWindow ( )

virtual

Destructor.

Definition at line 183 of file Swnd.cpp.

Member Function Documentation

_ApplyMatrix()

bool SWindow::_ApplyMatrix ( IRenderTarget * pRT, SMatrix & oriMtx )

protected

Applies a transformation matrix to the RenderTarget.

_ApplyMatrix

Parameters

IRenderTarget	* pRT – Target RenderTarget.
SMatrix	&oriMtx – Original transformation matrix.

Returns

bool – True if the matrix was applied successfully.

Describe Modifies the RenderTarget's transformation to account for the window's matrix.

Definition at line 2435 of file Swnd.cpp.

_FindChildByID()

SWindow * SWindow::_FindChildByID ( int nID, int nDeep )

protectedvirtual

Finds a child window by ID.

_FindChildByID

Parameters

int	nID – Child window ID.
int	nDeep – Search depth; -1 for unlimited.

Returns

SWindow * – Found child window.

Describe Searches for a child window by its unique identifier.

Definition at line 726 of file Swnd.cpp.

_FindChildByName()

SWindow * SWindow::_FindChildByName ( const SStringW & strName, int nDeep )

protectedvirtual

Finds a child window by name.

_FindChildByName

Parameters

const	SStringW &strName – Child window name.
int	nDeep – Search depth; -1 for unlimited.

Returns

SWindow * – Found child window.

Describe Searches for a child window by its name attribute.

Definition at line 753 of file Swnd.cpp.

_GetCurrentLayeredWindow()

SWindow * SWindow::_GetCurrentLayeredWindow ( )

protected

Retrieves the host window for the current render layer.

_GetCurrentRenderContainer

Returns

SWindow * – Host window for the render layer.

Describe Identifies the container responsible for rendering the current window.

Definition at line 2305 of file Swnd.cpp.

_GetMatrixEx()

SMatrix SWindow::_GetMatrixEx ( ) const

protected

Retrieves the extended transformation matrix for the window.

_GetMatrixEx

Returns

SMatrix – Extended transformation matrix.

Describe Provides the complete transformation matrix for the window.

Definition at line 2450 of file Swnd.cpp.

_PaintChildren()

void SWindow::_PaintChildren ( IRenderTarget * pRT, IRegionS * pRgn, UINT iBeginZorder, UINT iEndZorder )

protected

Renders child windows within a specific Z-order range.

Parameters

pRT	Pointer to the RenderTarget.
pRgn	Pointer to the region to render.
iBeginZorder	Beginning Z-order for rendering.
iEndZorder	Ending Z-order for rendering.

Definition at line 1233 of file Swnd.cpp.

_PaintClient()

void SWindow::_PaintClient ( IRenderTarget * pRT )

protected

Renders the client area of the window onto the RenderTarget.

Parameters

pRT	Pointer to the RenderTarget.

Definition at line 1096 of file Swnd.cpp.

_PaintNonClient()

void SWindow::_PaintNonClient ( IRenderTarget * pRT )

protected

Renders the non-client area of the window onto the RenderTarget.

Parameters

pRT	Pointer to the RenderTarget.

Definition at line 1139 of file Swnd.cpp.

_PaintRegion()

void SWindow::_PaintRegion ( IRenderTarget * pRT, IRegionS * pRgn, UINT iZorderBegin, UINT iZorderEnd )

protected

Renders a specific region of the window onto the RenderTarget.

Parameters

pRT	Pointer to the RenderTarget.
pRgn	Pointer to the region to render.
iZorderBegin	Beginning Z-order for rendering.
iZorderEnd	Ending Z-order for rendering.

Definition at line 1413 of file Swnd.cpp.

_RedrawNonClient()

void SWindow::_RedrawNonClient ( )

protected

Redraws the non-client area of the window.

Definition at line 1168 of file Swnd.cpp.

_WndRectInRgn()

bool SWindow::_WndRectInRgn ( const CRect & rc, const IRegionS * rgn ) const

protected

Checks if the window rectangle lies within a specified region.

_WndRectInRgn

Parameters

const	CRect &rc – Window rectangle.
const	IRegionS *rgn – Target region.

Returns

bool – True if the rectangle is within the region.

Describe Verifies whether the window's rectangle intersects with the given region.

Definition at line 1221 of file Swnd.cpp.

accNotifyEvent()

void SWindow::accNotifyEvent

(

DWORD

dwEvt

)

Notifies an accessibility event.

Parameters

dwEvt

Event ID.

Definition at line 3334 of file Swnd.cpp.

AddEvent()

BOOL SWindow::AddEvent	(	DWORD	dwEventID,
		LPCWSTR	pszEventHandlerName )

Adds an event handler.

Parameters

dwEventID	Event ID.
pszEventHandlerName	Event handler name.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3626 of file Swnd.cpp.

AdjustIZOrder()

BOOL SWindow::AdjustIZOrder

(

IWindow *

pInsertAfter

)

Adjusts the Z-order of the window.

Parameters

pInsertAfter

Pointer to the window after which this window should be inserted.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3532 of file Swnd.cpp.

AdjustZOrder()

BOOL SWindow::AdjustZOrder

(

SWindow *

pInsertAfter

)

Adjusts the Z-order of the window.

Parameters

pInsertAfter

Pointer to the window after which this window should be inserted.

Returns

BOOL TRUE if successful; otherwise, FALSE.

If pInsertAfter is not a sibling of this window, the function will fail.

Definition at line 1518 of file Swnd.cpp.

AfterAttribute()

HRESULT SWindow::AfterAttribute ( const SStringW & strAttribName, const SStringW & strValue, BOOL bLoading, HRESULT hr )

protectedvirtual

Called after an attribute is processed.

AfterAttribute

Parameters

const	SStringW &strAttribName – Attribute name.
const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.
HRESULT	hr – Result of attribute processing.

Returns

HRESULT – Result of post-processing.

Describe This method performs additional processing after an attribute is set.

Definition at line 3188 of file Swnd.cpp.

AfterPaint()

void SWindow::AfterPaint ( IRenderTarget * pRT, SPainter & painter )

virtual

Restore rendering environment.

AfterPaint

Reimplemented in SRootWindow.

Definition at line 1776 of file Swnd.cpp.

BeforePaint()

void SWindow::BeforePaint ( IRenderTarget * pRT, SPainter & painter )

virtual

Prepare rendering environment.

BeforePaint

Reimplemented in SRootWindow, and STabCtrl.

Definition at line 1755 of file Swnd.cpp.

BeforePaintEx()

void SWindow::BeforePaintEx

(

IRenderTarget *

pRT

)

Prepares the drawing environment for the current window's RenderTarget, starting from the top-level window.

BeforePaintEx

Parameters

IRenderTarget

* pRT – Target RenderTarget.

Returns

void

Describe Typically used in conjunction with CreateRenderTarget.

Definition at line 1767 of file Swnd.cpp.

BringWindowToTop()

void SWindow::BringWindowToTop

(

)

Brings the window to the top of the Z-order.

Definition at line 1513 of file Swnd.cpp.

ClearAnimation()

void SWindow::ClearAnimation

(

)

Clears the animation for the window.

Cancels any animations for this view.

Definition at line 2559 of file Swnd.cpp.

CreateCaret()

BOOL SWindow::CreateCaret	(	HBITMAP	pBmp,
		int	nWid,
		int	nHeight )

Creates a caret.

Parameters

pBmp	Bitmap for the caret.
nWid	Width of the caret.
nHeight	Height of the caret.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3038 of file Swnd.cpp.

CreateChild()

BOOL SWindow::CreateChild ( SXmlNode xmlChild )

protected

Creates a child window from an XML node.

Parameters

xmlChild

The XML node containing the child window definition.

Returns

BOOL TRUE if the child window was successfully created; otherwise, FALSE.

Definition at line 915 of file Swnd.cpp.

CreateChildByName()

SWindow * SWindow::CreateChildByName ( LPCWSTR pszName )

virtual

Create child window by name.

CreateChildByName

Parameters

pszName

Name of the child window

Returns

SWindow* Pointer to the created child window; otherwise, NULL

Reimplemented in SMenuExItem.

Definition at line 935 of file Swnd.cpp.

CreateChildren()

BOOL SWindow::CreateChildren ( SXmlNode xmlNode )

virtual

Create child windows from XML node.

CreateChildren

Parameters

xmlNode

XML node containing child windows

Returns

BOOL TRUE if child windows were created successfully; otherwise, FALSE

Reimplemented in SDateTimePicker, SHeaderCtrl, SListBox, SListCtrl, SMCListView, SMenuBar, SMenuExItem, SSplitWnd, SStackView, STabCtrl, STileView, STreeCtrl, and STreeView.

Definition at line 823 of file Swnd.cpp.

CreateChildrenFromResId()

BOOL SWindow::CreateChildrenFromResId

(

LPCTSTR

pszResId

)

Creates child windows from a resource ID.

Parameters

pszResId

Resource ID of the XML string containing child window definitions.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 1032 of file Swnd.cpp.

CreateChildrenFromXml()

BOOL SWindow::CreateChildrenFromXml

(

LPCWSTR

pszXml

)

Creates child windows from XML.

Parameters

pszXml

XML string containing child window definitions.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 1024 of file Swnd.cpp.

CreateChilds()

void SWindow::CreateChilds ( SXmlNode xmlNode )

protected

Creates multiple child windows from XML nodes.

Parameters

xmlNode

The XML node containing definitions for multiple child windows.

Definition at line 927 of file Swnd.cpp.

DefAttributeProc()

HRESULT SWindow::DefAttributeProc ( const SStringW & strAttribName, const SStringW & strValue, BOOL bLoading )

protectedvirtual

Default attribute processing function.

DefAttributeProc

Parameters

const	SStringW &strAttribName – Attribute name.
const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes attributes not explicitly handled.

Reimplemented from SObjectImpl< IWindow >.

Definition at line 3017 of file Swnd.cpp.

Destroy()

BOOL SWindow::Destroy

(

)

Destroys the window.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 504 of file Swnd.cpp.

DestroyAllChildren()

void SWindow::DestroyAllChildren

(

)

Destroys all child windows.

Definition at line 1685 of file Swnd.cpp.

DestroyChild()

BOOL SWindow::DestroyChild

(

SWindow *

pChild

)

Destroys a child window.

Parameters

pChild

Pointer to the child window to destroy.

Returns

BOOL TRUE if successful; otherwise, FALSE.

Calls RemoveChild and then releases the child window.

Definition at line 519 of file Swnd.cpp.

DestroyIChild()

BOOL SWindow::DestroyIChild

(

IWindow *

pChild

)

Destroys a child window.

Parameters

pChild

Pointer to the child window to destroy.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3547 of file Swnd.cpp.

DispatchPaint()

void SWindow::DispatchPaint ( IRenderTarget * pRT, IRegionS * pRgn, UINT iZorderBegin, UINT iZorderEnd )

protectedvirtual

Handles paint dispatching for the window.

DispatchPaint

Parameters

IRenderTarget	* pRT – Target RenderTarget.
IRegion	*pRgn – Paint region.
UINT	iBeginZorder – Beginning Z-order.
UINT	iEndZorder – Ending Z-order.

Returns

void

Describe Manages the painting process for the specified Z-order range.

Definition at line 1271 of file Swnd.cpp.

DoColorize()

void SWindow::DoColorize

(

COLORREF

cr

)

Applies colorization to the window.

Parameters

cr	Color reference for colorization.

Definition at line 3143 of file Swnd.cpp.

DrawDefFocusRect()

void SWindow::DrawDefFocusRect ( IRenderTarget * pRT, CRect rc )

protected

Draws the default focus rectangle.

Parameters

pRT	Pointer to the RenderTarget.
rc	Rectangle defining the focus area.

Definition at line 1981 of file Swnd.cpp.

DrawFocus()

void SWindow::DrawFocus ( IRenderTarget * pRT )

virtual

Draw focus state.

DrawFocus

Reimplemented in SCheckBox, and SRadioBox.

Definition at line 1973 of file Swnd.cpp.

DrawText()

void SWindow::DrawText ( IRenderTarget * pRT, LPCTSTR pszBuf, int cchText, LPRECT pRect, UINT uFormat )

virtual

Draw text content.

DrawText

Reimplemented in SLink, and SStatic.

Definition at line 1968 of file Swnd.cpp.

EnableWindow()

void SWindow::EnableWindow	(	BOOL	bEnable,
		BOOL	bUpdate = FALSE )

Enables or disables the window.

Parameters

bEnable	TRUE to enable the window, FALSE to disable.
bUpdate	Flag to update the window state.

Definition at line 664 of file Swnd.cpp.

FindChildByClass()

template<class T>

T * SWindow::FindChildByClass ( int nDeep = -1 ) const

inline

Recursively finds a child window by its class type.

Template Parameters

T	Type of the child window.

Parameters

nDeep

Depth of the search (-1 for unlimited depth).

Returns

T* Pointer to the found child window casted to type T.

Definition at line 1427 of file SWnd.h.

FindChildByID()

SWindow * SWindow::FindChildByID	(	int	nID,
		int	nDeep = -1 )

Finds a child window by its ID.

Parameters

nID	ID of the child window to find.
nDeep	Depth of the search (-1 for unlimited depth).

Returns

SWindow* Pointer to the found child window.

Definition at line 781 of file Swnd.cpp.

FindChildByID2()

template<class T>

T * SWindow::FindChildByID2 ( int nID, int nDeep = -1 )

inline

Finds a child window by its ID and casts it to a specific type.

Template Parameters

T	Type of the child window.

Parameters

nID	ID of the child window to find.
nDeep	Depth of the search (-1 for unlimited depth).

Returns

T* Pointer to the found child window casted to type T.

Definition at line 1360 of file SWnd.h.

FindChildByName() [1/2]

SWindow * SWindow::FindChildByName	(	LPCSTR	strName,
		int	nDeep = -1 )

Overloaded method to find a child window by its name (ANSI version).

Parameters

strName	Name of the child window to find.
nDeep	Depth of the search (-1 for unlimited depth).

Returns

SWindow* Pointer to the found child window.

Definition at line 813 of file Swnd.cpp.

FindChildByName() [2/2]

SWindow * SWindow::FindChildByName	(	LPCWSTR	strName,
		int	nDeep = -1 )

Finds a child window by its name.

Parameters

strName	Name of the child window to find.
nDeep	Depth of the search (-1 for unlimited depth).

Returns

SWindow* Pointer to the found child window.

Definition at line 795 of file Swnd.cpp.

FindChildByName2() [1/2]

template<class T>

T * SWindow::FindChildByName2 ( LPCSTR pszName, int nDeep = -1 )

inline

Overloaded method to find a child window by its name and cast it to a specific type (ANSI version).

Template Parameters

T	Type of the child window.

Parameters

pszName	Name of the child window to find.
nDeep	Depth of the search (-1 for unlimited depth).

Returns

T* Pointer to the found child window casted to type T.

Definition at line 1415 of file SWnd.h.

FindChildByName2() [2/2]

template<class T>

T * SWindow::FindChildByName2 ( LPCWSTR pszName, int nDeep = -1 )

inline

Finds a child window by its name and casts it to a specific type.

Template Parameters

T	Type of the child window.

Parameters

pszName	Name of the child window to find.
nDeep	Depth of the search (-1 for unlimited depth).

Returns

T* Pointer to the found child window casted to type T.

Definition at line 1396 of file SWnd.h.

FindIChildByID()

IWindow * SWindow::FindIChildByID

(

int

nId

)

Finds a child window by its ID.

Parameters

nId	ID of the child window to find.

Returns

Pointer to the found child window.

Definition at line 1670 of file Swnd.cpp.

FindIChildByName()

IWindow * SWindow::FindIChildByName

(

LPCWSTR

pszName

)

Finds a child window by its name.

Parameters

pszName

Name of the child window to find.

Returns

Pointer to the found child window.

Definition at line 1675 of file Swnd.cpp.

FindIChildByNameA()

IWindow * SWindow::FindIChildByNameA

(

LPCSTR

pszName

)

Finds a child window by its name (ANSI version).

Parameters

pszName

Name of the child window to find.

Returns

Pointer to the found child window.

Definition at line 1680 of file Swnd.cpp.

FireCommand()

BOOL SWindow::FireCommand

(

)

Fires a command event.

Returns

TRUE if the command was handled, FALSE otherwise.

Definition at line 2713 of file Swnd.cpp.

FireCtxMenu()

BOOL SWindow::FireCtxMenu

(

POINT

pt

)

Fires a context menu event.

Parameters

pt	Point where the context menu should be displayed.

Returns

TRUE if the context menu was handled, FALSE otherwise.

Definition at line 2719 of file Swnd.cpp.

FireEvent() [1/2]

BOOL SWindow::FireEvent

(

IEvtArgs *

evt

)

Fires an event.

Parameters

evt	Event arguments.

Returns

TRUE if the event was handled, FALSE otherwise.

Definition at line 1540 of file Swnd.cpp.

FireEvent() [2/2]

BOOL SWindow::FireEvent ( SEvtArgs & evt )

inline

Fires an event.

FireEvent

Parameters

SEvtArgs

&evt – Event arguments.

Returns

BOOL – Result of firing the event.

Describe Simplifies the process of firing events by wrapping the pointer-based method.

Definition at line 1811 of file SWnd.h.

GetAccProxy()

IAccProxy * SWindow::GetAccProxy

(

)

Retrieves the accessibility proxy for the window.

Returns

Pointer to the accessibility proxy.

Definition at line 3321 of file Swnd.cpp.

GetAlpha()

BYTE SWindow::GetAlpha

(

)

Retrieves the alpha value of the window.

Returns

Alpha value.

Definition at line 2602 of file Swnd.cpp.

GetAnimation()

IAnimation * SWindow::GetAnimation

(

)

Retrieves the animation object associated with the window.

Returns

Pointer to the animation object.

Get the animation currently associated with this view.

Returns

The animation that is currently playing or scheduled to play for this view.

Definition at line 2538 of file Swnd.cpp.

GetAttribute()

BOOL SWindow::GetAttribute	(	LPCWSTR	pszName,
		IStringW *	strValue )

Retrieves an attribute value from the window.

Parameters

pszName	Name of the attribute.
strValue	String object to receive the attribute value.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3216 of file Swnd.cpp.

GetBkgndColor()

COLORREF SWindow::GetBkgndColor

(

)

Retrieves the background color of the window.

Returns

Background color.

Definition at line 3386 of file Swnd.cpp.

GetCapture()

SWND SWindow::GetCapture

(

)

Retrieves the window that has captured the mouse.

Returns

Window handle of the captured window.

Definition at line 2470 of file Swnd.cpp.

GetChild()

SWindow * SWindow::GetChild

(

int

iChild

)

const

Retrieves a child window by index.

Parameters

iChild

Index of the child window.

Returns

SWindow* Pointer to the child window.

Definition at line 3483 of file Swnd.cpp.

GetChildrenCount()

UINT SWindow::GetChildrenCount

(

)

Retrieves the number of child windows.

Returns

Number of child windows.

Definition at line 533 of file Swnd.cpp.

GetChildrenLayoutRect()

void SWindow::GetChildrenLayoutRect

(

RECT *

prc

)

Retrieves the layout rectangle of the children.

Parameters

prc	Pointer to the rectangle to receive the layout area.

Definition at line 2181 of file Swnd.cpp.

GetClientRect() [1/2]

CRect SWindow::GetClientRect ( ) const

virtual

Retrieves the client rectangle of the window.

Returns

CRect Client rectangle of the window.

Reimplemented in SPanel.

Definition at line 243 of file Swnd.cpp.

GetClientRect() [2/2]

void SWindow::GetClientRect

(

LPRECT

prect

)

Retrieves the client rectangle of the window.

Parameters

prect

Pointer to the rectangle to receive the client area.

GetColorizeColor()

COLORREF SWindow::GetColorizeColor

(

)

Retrieves the colorization color of the window.

Returns

Color reference for colorization.

Definition at line 3166 of file Swnd.cpp.

GetContainer() [1/2]

const ISwndContainer * SWindow::GetContainer

(

)

const

Retrieves the container associated with this window.

Returns

const ISwndContainer* Pointer to the container object.

Definition at line 684 of file Swnd.cpp.

GetContainer() [2/2]

ISwndContainer * SWindow::GetContainer

(

)

Retrieves the container associated with this window.

Returns

Pointer to the container object.

Definition at line 679 of file Swnd.cpp.

GetCurMsg()

PSWNDMSG SWindow::GetCurMsg ( void ) const

inline

Retrieves the current message being processed.

Returns

PSWNDMSG Pointer to the current message structure.

Definition at line 1190 of file SWnd.h.

GetDesiredSize()

void SWindow::GetDesiredSize	(	SIZE *	psz,
		int	nParentWid,
		int	nParentHei )

Retrieves the desired size of the window.

Parameters

psz	Pointer to the size structure to receive the desired size.
nParentWid	Width of the parent window.
nParentHei	Height of the parent window.

Definition at line 1839 of file Swnd.cpp.

GetEventSet()

SEventSet * SWindow::GetEventSet ( )

inline

Retrieves the event set associated with the window.

Returns

SEventSet* Pointer to the event set object.

Definition at line 1290 of file SWnd.h.

GetHostHwnd()

HWND SWindow::GetHostHwnd

(

)

Retrieves the host window handle.

Returns

Host window handle.

Definition at line 3616 of file Swnd.cpp.

GetIChild()

IWindow * SWindow::GetIChild

(

int

iChild

)

Retrieves a child window by index.

Parameters

iChild

Index of the child window.

Returns

Pointer to the child window.

Definition at line 2658 of file Swnd.cpp.

GetIOwner()

IWindow * SWindow::GetIOwner

(

)

Retrieves the owner window.

Returns

Pointer to the owner window.

Definition at line 3557 of file Swnd.cpp.

GetIParent()

IWindow * SWindow::GetIParent

(

)

Retrieves the parent window.

Returns

Pointer to the parent window.

Definition at line 494 of file Swnd.cpp.

GetIRoot()

IWindow * SWindow::GetIRoot

(

)

Retrieves the root window in the hierarchy.

Returns

Pointer to the root window.

Definition at line 499 of file Swnd.cpp.

GetISelectedChildInGroup()

IWindow * SWindow::GetISelectedChildInGroup

(

)

Retrieves the selected child window in a group.

Returns

Pointer to the selected child window, or NULL if not in a group.

Definition at line 3587 of file Swnd.cpp.

GetISelectedSiblingInGroup()

IWindow * SWindow::GetISelectedSiblingInGroup

(

)

Retrieves the selected sibling window in a group.

Returns

Pointer to the selected sibling window, or NULL if not in a group.

Definition at line 3582 of file Swnd.cpp.

GetIWindow()

IWindow * SWindow::GetIWindow

(

int

uCode

)

Retrieves a window based on a given code.

Parameters

uCode

Code specifying the type of window to retrieve (e.g., first child, last child).

Returns

Pointer to the requested window.

Definition at line 2653 of file Swnd.cpp.

GetLayout()

ILayout * SWindow::GetLayout ( )

inline

Retrieves the layout object associated with the window.

Returns

Pointer to the layout object.

Definition at line 396 of file SWnd.h.

GetLayoutParam()

ILayoutParam * SWindow::GetLayoutParam ( )

inline

Retrieves the layout parameter object associated with the window.

Returns

Pointer to the layout parameter object.

Definition at line 405 of file SWnd.h.

GetLayoutParamT()

template<class T>

T * SWindow::GetLayoutParamT ( )

inline

Template method to cast layout parameters to a specific type.

Template Parameters

T	Type of the layout parameter.

Returns

T* Pointer to the casted layout parameter.

Definition at line 1347 of file SWnd.h.

GetMatrix()

void SWindow::GetMatrix

(

IMatrix *

mtx

)

Retrieves the transformation matrix of the window.

Parameters

mtx	Pointer to the matrix object to receive the transformation matrix.

Definition at line 2613 of file Swnd.cpp.

GetNextLayoutChild()

SWindow * SWindow::GetNextLayoutChild

(

const SWindow *

pCurChild

)

const

Retrieves the next layout child after a specified child.

Parameters

pCurChild

Pointer to the current child window.

Returns

SWindow* Pointer to the next layout child.

Definition at line 3501 of file Swnd.cpp.

GetNextLayoutIChild()

IWindow * SWindow::GetNextLayoutIChild

(

const IWindow *

pCurChild

)

Retrieves the next layout child window.

Parameters

pCurChild

Pointer to the current child window.

Returns

Pointer to the next layout child window.

Definition at line 2260 of file Swnd.cpp.

GetOwner()

SWindow * SWindow::GetOwner

(

)

const

Retrieves the current owner of the window.

Returns

SWindow* Pointer to the owner window.

Definition at line 706 of file Swnd.cpp.

GetParent()

SWindow * SWindow::GetParent

(

)

const

Retrieves the parent window.

Returns

SWindow* Pointer to the parent window.

Definition at line 3488 of file Swnd.cpp.

GetRenderTarget() [1/2]

IRenderTarget * SWindow::GetRenderTarget	(	GrtFlag	gdcFlags,
		IRegionS *	pRgn )

Retrieves a memory DC compatible with the SWND window.

GetRenderTarget

Parameters

DWORD	gdcFlags – Flags similar to OLEDCFLAGS.
IRegion	*pRgn – Target region for the RenderTarget.

Returns

IRenderTarget *

Describe The returned RenderTarget must be released using ReleaseRenderTarget.

Definition at line 2341 of file Swnd.cpp.

GetRenderTarget() [2/2]

IRenderTarget * SWindow::GetRenderTarget	(	LPCRECT	pRc = NULL,
		GrtFlag	gdcFlags = GRT_NODRAW,
		BOOL	bClientRT = TRUE )

Retrieves a memory DC compatible with the SWND window.

GetRenderTarget

Parameters

LPCRECT	pRc – Target rectangle for the RenderTarget.
DWORD	gdcFlags – Flags similar to OLEDCFLAGS.
BOOL	bClientRT – Indicates whether the client area should be used.

Returns

IRenderTarget *

Describe The returned RenderTarget must be released using ReleaseRenderTarget.

Definition at line 2320 of file Swnd.cpp.

GetRoot()

SWindow * SWindow::GetRoot

(

)

const

Retrieves the root window in the hierarchy.

Returns

SWindow* Pointer to the root window.

Definition at line 3493 of file Swnd.cpp.

GetScale()

int SWindow::GetScale

(

)

Retrieves the scale factor of the window.

Returns

Scale factor.

Definition at line 3266 of file Swnd.cpp.

GetScaleSkin()

void SWindow::GetScaleSkin ( SAutoRefPtr< ISkinObj > & pSkin, int nScale )

protected

Retrieves a scaled skin object based on the current scale factor.

Parameters

pSkin	Reference to the SAutoRefPtr<ISkinObj> to store the scaled skin object.
nScale	The scale factor.

Definition at line 3290 of file Swnd.cpp.

GetScriptModule()

IScriptModule * SWindow::GetScriptModule ( )

protected

Retrieves the script module interface.

Returns

IScriptModule* Pointer to the script module interface.

Definition at line 3010 of file Swnd.cpp.

GetSelectedChildInGroup()

SWindow * SWindow::GetSelectedChildInGroup ( )

virtual

Get selected child in group.

GetSelectedChildInGroup

Definition at line 2978 of file Swnd.cpp.

GetSelectedSiblingInGroup()

virtual SWindow * SWindow::GetSelectedSiblingInGroup ( )

inlinevirtual

Get selected sibling in group.

GetSelectedSiblingInGroup

Reimplemented in SRadioBox.

Definition at line 1598 of file SWnd.h.

GetState()

DWORD SWindow::GetState

(

void

)

Retrieves the current state of the window.

Returns

Current state flags.

Definition at line 437 of file Swnd.cpp.

GetStyle() [1/2]

SwndStyle & SWindow::GetStyle

(

)

Definition at line 721 of file Swnd.cpp.

GetStyle() [2/2]

const SwndStyle & SWindow::GetStyle

(

)

const

Retrieves the style of the window.

Returns

SwndStyle& Reference to the style object.

Definition at line 716 of file Swnd.cpp.

GetSwnd()

SWND SWindow::GetSwnd

(

)

Retrieves the window handle.

Returns

Window handle.

Definition at line 489 of file Swnd.cpp.

GetTextAlign()

UINT SWindow::GetTextAlign

(

)

const

Retrieves the text alignment of the window.

Returns

UINT Text alignment flags.

Definition at line 218 of file Swnd.cpp.

GetTextRect()

void SWindow::GetTextRect ( LPRECT pRect )

virtual

Calculate text display rectangle.

GetTextRect

Reimplemented in SCheckBox, SMenuExItem, and SRadioBox.

Definition at line 1961 of file Swnd.cpp.

GetTimelineHandlersMgr()

ITimelineHandlersMgr * SWindow::GetTimelineHandlersMgr

(

)

Retrieves the timeline handlers manager.

Returns

Pointer to the timeline handlers manager.

Definition at line 3621 of file Swnd.cpp.

GetToolTipText()

SStringT SWindow::GetToolTipText ( )

virtual

Retrieves the tooltip text of the window.

Returns

SStringT Tooltip text as a string.

Definition at line 3236 of file Swnd.cpp.

GetTransformation()

STransformation SWindow::GetTransformation ( ) const

protected

Retrieves the current transformation matrix of the window.

Returns

STransformation The current transformation matrix.

Definition at line 2577 of file Swnd.cpp.

GetTrCtx()

LPCWSTR SWindow::GetTrCtx ( ) const

virtual

Get translation context.

GetTrCtx

Definition at line 3258 of file Swnd.cpp.

GetUserData()

ULONG_PTR SWindow::GetUserData

(

)

Retrieves the user data associated with the window.

Returns

User data.

Definition at line 465 of file Swnd.cpp.

GetVisibleRect()

void SWindow::GetVisibleRect

(

LPRECT

prect

)

Retrieves the visible rectangle of the window.

Parameters

prect

Pointer to the rectangle to receive the visible area.

Definition at line 3636 of file Swnd.cpp.

GetWindow()

SWindow * SWindow::GetWindow

(

int

uCode

)

const

Retrieves a window based on a given code.

Parameters

uCode

Code specifying the type of window to retrieve (e.g., first child, last child).

Returns

SWindow* Pointer to the requested window.

Definition at line 3456 of file Swnd.cpp.

GetWindowPath()

IPathS * SWindow::GetWindowPath

(

)

Retrieves the window path.

Returns

Pointer to the path object.

Definition at line 3138 of file Swnd.cpp.

GetWindowRect() [1/2]

CRect SWindow::GetWindowRect

(

)

const

Retrieves the bounding rectangle of the window.

Returns

CRect Bounding rectangle of the window.

Definition at line 230 of file Swnd.cpp.

GetWindowRect() [2/2]

void SWindow::GetWindowRect

(

LPRECT

prect

)

Retrieves the bounding rectangle of the window.

Parameters

prect

Pointer to the rectangle to receive the window's bounds.

GetWindowRgn()

IRegionS * SWindow::GetWindowRgn

(

)

Retrieves the window region.

Returns

Pointer to the region object.

Definition at line 3126 of file Swnd.cpp.

GetWindowText() [1/2]

SStringT SWindow::GetWindowText ( BOOL bRawText = FALSE )

virtual

Retrieves the text of the window.

Parameters

bRawText

Flag indicating whether to retrieve raw text.

Returns

SStringT Window text as a string.

Reimplemented in SDateTimePicker, SHotKeyCtrl, and SRichEdit.

Definition at line 250 of file Swnd.cpp.

GetWindowText() [2/2]

int SWindow::GetWindowText	(	TCHAR *	pBuf,
		int	nBufLen,
		BOOL	bRawText )

Retrieves the window text.

Parameters

pBuf	Buffer to receive the window text.
nBufLen	Length of the buffer.
bRawText	Flag to indicate if raw text should be retrieved.

Returns

Length of the text copied to the buffer.

Definition at line 263 of file Swnd.cpp.

GetWindowTextU8()

int SWindow::GetWindowTextU8	(	IStringA *	pStr,
		BOOL	bRawText )

Retrieves the window text as a UTF-8 string.

Parameters

pStr	String object to receive the window text.
bRawText	Flag to indicate if raw text should be retrieved.

Returns

Length of the text copied to the string object.

Definition at line 255 of file Swnd.cpp.

GetXmlText()

SStringW SWindow::GetXmlText ( const SXmlNode & xmlNode )

static

Gets the XML text from a node.

Parameters

xmlNode

XML node.

Returns

XML text.

Definition at line 2955 of file Swnd.cpp.

InitFromXml()

BOOL SWindow::InitFromXml

(

IXmlNode *

pNode

)

Initializes the window from an XML node.

Parameters

pNode

XML node containing window initialization data.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 946 of file Swnd.cpp.

InsertChild()

void SWindow::InsertChild	(	SWindow *	pNewChild,
		SWindow *	pInsertAfter = NULL )

Inserts a child window into the window tree.

Parameters

pNewChild	Pointer to the new child window.
pInsertAfter	Pointer to the window after which the new child should be inserted.

The new child will not automatically enter the layout process.

Definition at line 538 of file Swnd.cpp.

InsertIChild()

void SWindow::InsertIChild	(	IWindow *	pNewChild,
		IWindow *	pInsertAfter = NULL )

Inserts a child window into the window tree.

Parameters

pNewChild	Pointer to the new child window.
pInsertAfter	Pointer to the window after which the new child should be inserted.

Definition at line 3537 of file Swnd.cpp.

Invalidate()

void SWindow::Invalidate

(

)

Invalidates the entire window.

Definition at line 1437 of file Swnd.cpp.

InvalidateRect() [1/2]

void SWindow::InvalidateRect ( const CRect & rect, BOOL bFromThis = TRUE, BOOL bClip = FALSE )

protected

Invalidates a specific rectangle area of the window.

Parameters

rect	The rectangle area to invalidate.
bFromThis	TRUE if the invalidation originates from this window; otherwise, FALSE.
bClip	TRUE if clipping should be applied; otherwise, FALSE.

Definition at line 1457 of file Swnd.cpp.

InvalidateRect() [2/2]

void SWindow::InvalidateRect

(

LPCRECT

lprect

)

Invalidates a specific rectangle area of the window.

Parameters

lprect

Pointer to the rectangle to invalidate.

Definition at line 1444 of file Swnd.cpp.

IsCacheDirty()

bool SWindow::IsCacheDirty ( ) const

protected

Checks if the cache is marked as dirty.

IsCacheDirty

Returns

bool – True if the cache is dirty.

Describe Determines whether the cache needs to be refreshed.

Definition at line 2728 of file Swnd.cpp.

IsChecked()

BOOL SWindow::IsChecked

(

)

Checks if the window is checked.

Returns

TRUE if the window is checked, FALSE otherwise.

Definition at line 633 of file Swnd.cpp.

IsClipClient()

BOOL SWindow::IsClipClient

(

)

Checks if client area clipping is enabled.

Returns

TRUE if client area clipping is enabled, FALSE otherwise.

Definition at line 3446 of file Swnd.cpp.

IsContainPoint()

BOOL SWindow::IsContainPoint	(	POINT	pt,
		BOOL	bClientOnly )

Checks if the window contains a specified point.

Parameters

pt	Point to check.
bClientOnly	Flag to check only the client area.

Returns

TRUE if the point is within the window, FALSE otherwise.

Definition at line 3100 of file Swnd.cpp.

IsDescendant()

BOOL SWindow::IsDescendant

(

const IWindow *

pWnd

)

Checks if a window is a descendant of this window.

Parameters

pWnd	Pointer to the window to check.

Returns

TRUE if the window is a descendant, FALSE otherwise.

Definition at line 3518 of file Swnd.cpp.

IsDisabled()

BOOL SWindow::IsDisabled

(

BOOL

bCheckParent = FALSE

)

Checks if the window is disabled.

Parameters

bCheckParent

Flag to check the parent window's state.

Returns

TRUE if the window is disabled, FALSE otherwise.

Definition at line 638 of file Swnd.cpp.

IsDisplay()

BOOL SWindow::IsDisplay

(

)

Checks if the window is displayed.

Returns

TRUE if the window is displayed, FALSE otherwise.

Definition at line 3436 of file Swnd.cpp.

IsDrawToCache()

bool SWindow::IsDrawToCache ( ) const

protectedvirtual

Checks if the window content is being drawn to the cache.

IsDrawToCache

Returns

bool – True if drawing to cache.

Describe Indicates whether the current rendering operation targets the cache.

Definition at line 2992 of file Swnd.cpp.

IsFloat()

BOOL SWindow::IsFloat

(

)

Checks if the window is floating.

Returns

TRUE if the window is floating, FALSE otherwise.

Definition at line 3431 of file Swnd.cpp.

IsFocusable()

BOOL SWindow::IsFocusable

(

)

Checks if the window is focusable.

Returns

TRUE if the window is focusable, FALSE otherwise.

Definition at line 1996 of file Swnd.cpp.

IsFocused()

BOOL SWindow::IsFocused

(

)

Checks if the window has focus.

Returns

TRUE if the window has focus, FALSE otherwise.

Definition at line 2639 of file Swnd.cpp.

IsLayeredWindow()

BOOL SWindow::IsLayeredWindow ( ) const

protectedvirtual

Determines if the window requires a render layer.

IsLayeredWindow

Returns

BOOL – TRUE if a render layer is needed.

Describe Indicates whether the window uses layered rendering.

Reimplemented in SRootWindow.

Definition at line 2299 of file Swnd.cpp.

IsLayoutDirty()

BOOL SWindow::IsLayoutDirty

(

)

Checks if the layout is dirty.

Returns

TRUE if the layout is dirty, FALSE otherwise.

Definition at line 3451 of file Swnd.cpp.

IsMsgHandled()

BOOL SWindow::IsMsgHandled

(

)

const

Checks if the message is handled.

Returns

TRUE if the message is handled, FALSE otherwise.

Definition at line 207 of file Swnd.cpp.

IsMsgTransparent()

BOOL SWindow::IsMsgTransparent

(

)

Checks if the window is message transparent.

Returns

TRUE if the window is message transparent, FALSE otherwise.

Definition at line 711 of file Swnd.cpp.

IsSiblingsAutoGroupped()

BOOL SWindow::IsSiblingsAutoGroupped

(

)

Checks if siblings are auto-grouped.

Returns

TRUE if siblings are auto-grouped, FALSE otherwise.

Definition at line 3441 of file Swnd.cpp.

IsUpdateLocked()

BOOL SWindow::IsUpdateLocked

(

BOOL

bCheckParent = FALSE

)

Checks if updates to the window are locked.

Parameters

bCheckParent

Flag to check the parent window's state.

Returns

TRUE if updates are locked, FALSE otherwise.

Definition at line 1503 of file Swnd.cpp.

IsVideoCanvas()

BOOL SWindow::IsVideoCanvas

(

)

Checks if the window is a video canvas.

Returns

TRUE if the window is a video canvas, FALSE otherwise.

Definition at line 3656 of file Swnd.cpp.

IsVisible()

BOOL SWindow::IsVisible

(

BOOL

bCheckParent = FALSE

)

Checks if the window is visible.

Parameters

bCheckParent

Flag to check the parent window's state.

Returns

TRUE if the window is visible, FALSE otherwise.

Definition at line 646 of file Swnd.cpp.

KillFocus()

void SWindow::KillFocus

(

)

Kills the focus from the window.

Definition at line 2629 of file Swnd.cpp.

KillTimer()

BOOL SWindow::KillTimer

(

char

id

)

Kills a timer for the window.

Parameters

id

Timer ID.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 483 of file Swnd.cpp.

LockUpdate()

void SWindow::LockUpdate

(

)

Locks updates to the window.

Definition at line 1492 of file Swnd.cpp.

MarkCacheDirty()

void SWindow::MarkCacheDirty ( bool bDirty )

protected

Marks the cache as dirty.

MarkCacheDirty

Parameters

bool	bDirty – Dirty state to set.

Returns

void

Describe Sets the cache's dirty flag to indicate it needs updating.

Definition at line 2733 of file Swnd.cpp.

MeasureChildren()

SIZE SWindow::MeasureChildren ( int nParentWid, int nParentHei )

virtual

Measures the size of all child windows.

Parameters

nParentWid	The width of the parent window.
nParentHei	The height of the parent window.

Returns

SIZE The measured size of the children.

Reimplemented in SStackView.

Definition at line 1956 of file Swnd.cpp.

MeasureContent()

SIZE SWindow::MeasureContent ( int nParentWid, int nParentHei )

virtual

Measures the size of the content within the window.

Parameters

nParentWid	The width of the parent window.
nParentHei	The height of the parent window.

Returns

SIZE The measured size of the content.

Reimplemented in SAnimateImgWnd, SCheckBox, SIconWnd, SImageButton, SImageWnd, SRadioBox, and SToggle.

Definition at line 1925 of file Swnd.cpp.

ModifyState()

DWORD SWindow::ModifyState	(	DWORD	dwStateAdd,
		DWORD	dwStateRemove,
		BOOL	bUpdate = FALSE )

Modifies the state of the window.

Parameters

dwStateAdd	State flags to add.
dwStateRemove	State flags to remove.
bUpdate	Flag to indicate if the state change should be updated.

Returns

Modified state flags.

Definition at line 443 of file Swnd.cpp.

Move()

void SWindow::Move

(

LPCRECT

prect

)

Moves the window to a new position and size.

Parameters

prect

Pointer to the rectangle defining the new position and size.

Definition at line 399 of file Swnd.cpp.

Move2()

void SWindow::Move2	(	int	x,
		int	y,
		int	cx = -1,
		int	cy = -1 )

Moves the window to a new position and optionally resizes it.

Parameters

x	New X-coordinate of the window.
y	New Y-coordinate of the window.
cx	New width of the window (-1 to keep the current width).
cy	New height of the window (-1 to keep the current height).

Definition at line 417 of file Swnd.cpp.

NeedRedrawWhenStateChange()

BOOL SWindow::NeedRedrawWhenStateChange ( )

virtual

Determine if redraw is needed on state change.

NeedRedrawWhenStateChange

Reimplemented in SButton, SCheckBox, SRadioBox, SRealWnd, SSpinButtonCtrl, SSwitch, and SToggle.

Definition at line 1086 of file Swnd.cpp.

OnAfterInsertChild()

void SWindow::OnAfterInsertChild ( SWindow * pChild )

protectedvirtual

Called after a child window has been inserted into this window.

Parameters

pChild

Pointer to the child window that was inserted.

Reimplemented in SRadioGroup, and SStackView.

Definition at line 3395 of file Swnd.cpp.

OnAfterRemoveChild()

void SWindow::OnAfterRemoveChild ( SWindow * pChild )

protectedvirtual

Called after a child window has been removed from this window.

Parameters

pChild

Pointer to the child window that was removed.

Reimplemented in SStackView.

Definition at line 3403 of file Swnd.cpp.

OnAnimationInvalidate()

void SWindow::OnAnimationInvalidate ( IAnimation * pAni, bool bErase )

protectedvirtual

Called when an animation requires a redraw.

Parameters

pAni	Pointer to the animation object.
bErase	TRUE if the background should be erased; otherwise, FALSE.

Reimplemented in SRootWindow.

Definition at line 3381 of file Swnd.cpp.

OnAnimationPauseChange()

void SWindow::OnAnimationPauseChange ( IAnimation * animation, BOOL bPaused )

protected

Called when the pause state of an animation changes.

Parameters

animation	Pointer to the animation object.
bPaused	TRUE if the animation is paused; otherwise, FALSE.

Definition at line 3671 of file Swnd.cpp.

OnAnimationRepeat()

void SWindow::OnAnimationRepeat ( IAnimation * animation )

protected

Called when an animation repeats.

Parameters

animation

Pointer to the animation object.

Definition at line 3374 of file Swnd.cpp.

OnAnimationStart()

void SWindow::OnAnimationStart ( IAnimation * animation )

protected

Called when an animation starts.

Parameters

animation

Pointer to the animation object.

Definition at line 3351 of file Swnd.cpp.

OnAnimationStop()

void SWindow::OnAnimationStop ( IAnimation * animation )

protected

Called when an animation stops.

Parameters

animation

Pointer to the animation object.

Definition at line 3362 of file Swnd.cpp.

OnAttrAlpha()

HRESULT SWindow::OnAttrAlpha ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'alpha' attribute.

OnAttrAlpha

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'alpha' attribute.

Definition at line 2891 of file Swnd.cpp.

OnAttrCache()

HRESULT SWindow::OnAttrCache ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'cache' attribute.

OnAttrCache

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'cache' attribute.

Definition at line 2879 of file Swnd.cpp.

OnAttrClass()

HRESULT SWindow::OnAttrClass ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'class' attribute.

OnAttrClass

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'class' attribute.

Definition at line 2789 of file Swnd.cpp.

OnAttrDisplay()

HRESULT SWindow::OnAttrDisplay ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'display' attribute.

OnAttrDisplay

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'display' attribute.

Definition at line 2766 of file Swnd.cpp.

OnAttrEnable()

HRESULT SWindow::OnAttrEnable ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'enable' attribute.

OnAttrEnable

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'enable' attribute.

Definition at line 2749 of file Swnd.cpp.

OnAttrID()

HRESULT SWindow::OnAttrID ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'id' attribute.

OnAttrID

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'id' attribute.

Definition at line 2898 of file Swnd.cpp.

OnAttrLayout()

HRESULT SWindow::OnAttrLayout ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'layout' attribute.

OnAttrLayout

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'layout' attribute.

Definition at line 3177 of file Swnd.cpp.

OnAttrName()

HRESULT SWindow::OnAttrName ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'name' attribute.

OnAttrName

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'name' attribute.

Definition at line 2934 of file Swnd.cpp.

OnAttrSkin()

HRESULT SWindow::OnAttrSkin ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'skin' attribute.

OnAttrSkin

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'skin' attribute.

Definition at line 2776 of file Swnd.cpp.

OnAttrText()

HRESULT SWindow::OnAttrText ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'text' attribute.

OnAttrText

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'text' attribute.

Definition at line 2967 of file Swnd.cpp.

OnAttrTip()

HRESULT SWindow::OnAttrTip ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'tip' attribute.

OnAttrTip

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'tip' attribute.

Definition at line 2949 of file Swnd.cpp.

OnAttrTrackMouseEvent()

HRESULT SWindow::OnAttrTrackMouseEvent ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'trackMouseEvent' attribute.

OnAttrTrackMouseEvent

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'trackMouseEvent' attribute.

Definition at line 2812 of file Swnd.cpp.

OnAttrVideoCanvas()

HRESULT SWindow::OnAttrVideoCanvas ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'videoCanvas' attribute.

OnAttrVideoCanvas

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'videoCanvas' attribute.

Definition at line 2828 of file Swnd.cpp.

OnAttrVisible()

HRESULT SWindow::OnAttrVisible ( const SStringW & strValue, BOOL bLoading )

protected

Handles the 'visible' attribute.

OnAttrVisible

Parameters

const	SStringW &strValue – Attribute value.
BOOL	bLoading – TRUE during loading, FALSE otherwise.

Returns

HRESULT – Result of attribute processing.

Describe This method processes the 'visible' attribute.

Definition at line 2739 of file Swnd.cpp.

OnBeforeInsertChild()

void SWindow::OnBeforeInsertChild ( SWindow * pChild )

protectedvirtual

Called before a child window is inserted into this window.

Parameters

pChild

Pointer to the child window being inserted.

Definition at line 3399 of file Swnd.cpp.

OnBeforeRemoveChild()

void SWindow::OnBeforeRemoveChild ( SWindow * pChild )

protectedvirtual

Called before a child window is removed from this window.

Parameters

pChild

Pointer to the child window being removed.

Reimplemented in SRadioGroup.

Definition at line 3391 of file Swnd.cpp.

OnCaptureChanged()

void SWindow::OnCaptureChanged ( BOOL bCaptured )

protectedvirtual

Called when the capture state of the window changes.

Parameters

bCaptured

TRUE if the window has captured the mouse; otherwise, FALSE.

Definition at line 2477 of file Swnd.cpp.

OnColorize()

void SWindow::OnColorize ( COLORREF cr )

protectedvirtual

Adjusts the color tone of the window.

Parameters

cr	The color reference used for colorization.

Reimplemented in SAnimateImgWnd, SCheckBox, SHeaderCtrl, SImageWnd, SMCListView, SPanel, SProgress, SRadioBox, SSliderBar, SSpinButtonCtrl, STabCtrl, STileView, and STreeView.

Definition at line 3154 of file Swnd.cpp.

OnCommitSurface()

void SWindow::OnCommitSurface ( IRenderTarget * pRtDest, LPCRECT pRcDest, IRenderTarget * pRtSrc, LPCRECT pRcSrc, BYTE alpha )

protectedvirtual

Commits surface changes.

OnCommitSurface

Parameters

IRenderTarget	* pRtDest – Destination RenderTarget.
LPCRECT	pRcDest – Destination rectangle.
IRenderTarget	*pRtSrc – Source RenderTarget.
LPCRECT	pRcSrc – Source rectangle.
BYTE	alpha – Alpha value for blending.

Returns

void

Describe Applies surface changes with optional alpha blending.

Definition at line 3577 of file Swnd.cpp.

OnContainerChanged()

void SWindow::OnContainerChanged ( ISwndContainer * pOldContainer, ISwndContainer * pNewContainer )

protectedvirtual

Called when the container of the window changes.

Parameters

pOldContainer	Pointer to the old container.
pNewContainer	Pointer to the new container.

Reimplemented in SAnimateImgWnd, SButton, SPanel, and SStackView.

Definition at line 3407 of file Swnd.cpp.

OnContentChanged()

void SWindow::OnContentChanged ( )

protectedvirtual

Called when the content of the window changes.

Definition at line 329 of file Swnd.cpp.

OnCreate()

int SWindow::OnCreate ( LPVOID )

protected

Handles the creation of the window.

OnCreate

Parameters

LPVOID

– Pointer to creation data.

Returns

int – Result of the creation process.

Describe This method is called when the window is created.

Definition at line 1654 of file Swnd.cpp.

OnDestroy()

void SWindow::OnDestroy ( )

protected

Handles the destruction of the window.

OnDestroy

Returns

void

Describe This method is called when the window is destroyed.

Definition at line 1701 of file Swnd.cpp.

OnEnable()

void SWindow::OnEnable ( BOOL bEnable, UINT nStatus )

protected

Handles enabling or disabling the window.

OnEnable

Parameters

BOOL	bEnable – TRUE to enable, FALSE to disable.
UINT	nStatus – Enable status flags.

Returns

void

Describe This method is called when the window is enabled or disabled.

Definition at line 2059 of file Swnd.cpp.

OnEraseBkgnd()

BOOL SWindow::OnEraseBkgnd ( IRenderTarget * pRT )

protected

Handles the erasing of the background.

OnEraseBkgnd

Parameters

IRenderTarget

*pRT – RenderTarget for drawing.

Returns

BOOL – TRUE if the background was erased.

Describe This method is called to erase the background before painting.

Definition at line 1733 of file Swnd.cpp.

OnFinalRelease()

void SWindow::OnFinalRelease

(

)

Called when the last reference to the object is released.

Definition at line 198 of file Swnd.cpp.

OnGetDlgCode()

UINT SWindow::OnGetDlgCode

(

)

Retrieves the dialog code for the window.

Returns

Dialog code.

Definition at line 1991 of file Swnd.cpp.

OnKillFocus()

void SWindow::OnKillFocus ( SWND wndFocus )

protected

Handles losing focus.

OnKillFocus

Parameters

SWND	wndFocus – Handle of the new focused window.

Returns

void

Describe This method is called when the window loses focus.

Definition at line 2274 of file Swnd.cpp.

OnLanguageChanged()

HRESULT SWindow::OnLanguageChanged ( )

protectedvirtual

Called when the language of the window changes.

Returns

HRESULT Result of the operation.

Reimplemented in SCalendar, SComboBox, SComboView, SHeaderCtrl, SListBox, SMCListView, SRootWindow, STabCtrl, STileView, and STreeView.

Definition at line 3229 of file Swnd.cpp.

OnLButtonDbClick()

void SWindow::OnLButtonDbClick ( UINT nFlags, CPoint point )

protected

Handles the left mouse button double-click event.

OnLButtonDbClick

Parameters

UINT	nFlags – Mouse flags.
CPoint	point – Mouse position.

Returns

void

Describe This method is called when the left mouse button is double-clicked.

Definition at line 2100 of file Swnd.cpp.

OnLButtonDown()

void SWindow::OnLButtonDown ( UINT nFlags, CPoint pt )

protected

Handles the left mouse button down event.

OnLButtonDown

Parameters

UINT	nFlags – Mouse flags.
CPoint	pt – Mouse position.

Returns

void

Describe This method is called when the left mouse button is pressed.

Definition at line 2092 of file Swnd.cpp.

OnLButtonUp()

void SWindow::OnLButtonUp ( UINT nFlags, CPoint pt )

protected

Handles the left mouse button up event.

OnLButtonUp

Parameters

UINT	nFlags – Mouse flags.
CPoint	pt – Mouse position.

Returns

void

Describe This method is called when the left mouse button is released.

Definition at line 2105 of file Swnd.cpp.

OnMouseClick()

LRESULT SWindow::OnMouseClick ( UINT uMsg, WPARAM wParam, LPARAM lParam )

protected

Handles general mouse click events.

OnMouseClick

Parameters

UINT	uMsg – Message identifier.
WPARAM	wParam – Additional message parameter.
LPARAM	lParam – Additional message parameter.

Returns

LRESULT – Result of the message processing.

Describe This method handles a range of mouse click messages.

Definition at line 2167 of file Swnd.cpp.

OnMouseHover()

void SWindow::OnMouseHover ( UINT nFlags, CPoint ptPos )

protected

Handles the mouse hover event.

OnMouseHover

Parameters

UINT	nFlags – Mouse flags.
CPoint	ptPos – Mouse position.

Returns

void

Describe This method is called when the mouse hovers over the window.

Definition at line 2135 of file Swnd.cpp.

OnMouseLeave()

void SWindow::OnMouseLeave ( )

protected

Handles the mouse leave event.

OnMouseLeave

Returns

void

Describe This method is called when the mouse leaves the window.

Definition at line 2147 of file Swnd.cpp.

OnMouseMove()

void SWindow::OnMouseMove ( UINT nFlags, CPoint pt )

protected

Handles the mouse move event.

OnMouseMove

Parameters

UINT	nFlags – Mouse flags.
CPoint	pt – Mouse position.

Returns

void

Describe This method is called when the mouse moves over the window.

Definition at line 2131 of file Swnd.cpp.

OnMouseWheel()

BOOL SWindow::OnMouseWheel ( UINT nFlags, short zDelta, CPoint pt )

protected

Handles the mouse wheel event.

OnMouseWheel

Parameters

UINT	nFlags – Mouse flags.
short	zDelta – Wheel delta.
CPoint	pt – Mouse position.

Returns

BOOL – TRUE if the event was handled.

Describe This method is called when the mouse wheel is moved.

Definition at line 2159 of file Swnd.cpp.

OnNcHitTest()

BOOL SWindow::OnNcHitTest ( CPoint pt )

virtual

Non-client area hit test.

OnNcHitTest

Parameters

pt	Point coordinates

Returns

BOOL TRUE if the point is within the non-client area; otherwise, FALSE

Reimplemented in SPanel.

Definition at line 2647 of file Swnd.cpp.

OnNcPaint()

void SWindow::OnNcPaint ( IRenderTarget * pRT )

protected

Handles the painting of the non-client area.

OnNcPaint

Parameters

IRenderTarget

*pRT – RenderTarget for drawing.

Returns

void

Describe This method is called to paint the non-client area of the window.

Definition at line 1805 of file Swnd.cpp.

OnPaint()

void SWindow::OnPaint ( IRenderTarget * pRT )

protected

Handles the painting of the window.

OnPaint

Parameters

IRenderTarget

*pRT – RenderTarget for drawing.

Returns

void

Describe This method is called to paint the window content.

Definition at line 1785 of file Swnd.cpp.

OnRButtonDown()

void SWindow::OnRButtonDown ( UINT nFlags, CPoint point )

protected

Handles the right mouse button down event.

OnRButtonDown

Parameters

UINT	nFlags – Mouse flags.
CPoint	point – Mouse position.

Returns

void

Describe This method is called when the right mouse button is pressed.

Definition at line 2122 of file Swnd.cpp.

OnRButtonUp()

void SWindow::OnRButtonUp ( UINT nFlags, CPoint point )

protected

Handles the right mouse button up event.

OnRButtonUp

Parameters

UINT	nFlags – Mouse flags.
CPoint	point – Mouse position.

Returns

void

Describe This method is called when the right mouse button is released.

Definition at line 2126 of file Swnd.cpp.

OnRebuildFont()

void SWindow::OnRebuildFont ( )

protectedvirtual

Called when the font of the window needs to be rebuilt.

Reimplemented in SMCListView, SRichEdit, STileView, and STreeView.

Definition at line 3303 of file Swnd.cpp.

OnRelayout()

BOOL SWindow::OnRelayout ( const CRect & rcWnd )

protectedvirtual

Handles window position changes during layout updates.

Parameters

rcWnd

The new window rectangle.

Returns

BOOL TRUE if the relayout was handled successfully; otherwise, FALSE.

Reimplemented in SHeaderCtrl, and SRealWnd.

Definition at line 1587 of file Swnd.cpp.

OnScaleChanged()

void SWindow::OnScaleChanged ( int scale )

protectedvirtual

Called when the scale of the window changes.

Parameters

scale

The new scale value.

Reimplemented in SAnimateImgWnd, SCheckBox, SComboBox, SComboView, SHeaderCtrl, SIconWnd, SImageWnd, SListBox, SMCListView, SPanel, SProgress, SRadioBox, SRichEdit, SRootWindow, SSliderBar, SSpinButtonCtrl, STabCtrl, STileView, and STreeView.

Definition at line 3271 of file Swnd.cpp.

OnSetColorize()

LRESULT SWindow::OnSetColorize ( UINT uMsg, WPARAM wParam, LPARAM lParam )

protected

Handles setting the colorization of the window.

OnSetColorize

Parameters

UINT	uMsg – Message identifier.
WPARAM	wParam – Colorization value.
LPARAM	lParam – Reserved.

Returns

LRESULT – Result of the message processing.

Describe This method applies colorization to the window.

Definition at line 3148 of file Swnd.cpp.

OnSetCursor()

BOOL SWindow::OnSetCursor ( const CPoint & pt )

protectedvirtual

Sets the cursor when the mouse hovers over the window.

Parameters

pt	The point where the cursor is set.

Returns

BOOL TRUE if the cursor was set successfully; otherwise, FALSE.

Reimplemented in SHeaderCtrl, SLink, SMCListView, SRichEdit, SSplitWnd, STileView, and STreeView.

Definition at line 429 of file Swnd.cpp.

OnSetFocus()

void SWindow::OnSetFocus ( SWND wndOld )

protected

Handles gaining focus.

OnSetFocus

Parameters

SWND	wndOld – Handle of the previous focused window.

Returns

void

Describe This method is called when the window gains focus.

Definition at line 2265 of file Swnd.cpp.

OnSetLanguage()

LRESULT SWindow::OnSetLanguage ( UINT uMsg, WPARAM wParam, LPARAM lParam )

protected

Handles setting the language of the window.

OnSetLanguage

Parameters

UINT	uMsg – Message identifier.
WPARAM	wParam – Language identifier.
LPARAM	lParam – Reserved.

Returns

LRESULT – Result of the message processing.

Describe This method changes the language of the window.

Definition at line 2289 of file Swnd.cpp.

OnSetScale()

LRESULT SWindow::OnSetScale ( UINT uMsg, WPARAM wParam, LPARAM lParam )

protected

Handles setting the scale of the window.

OnSetScale

Parameters

UINT	uMsg – Message identifier.
WPARAM	wParam – Scale factor.
LPARAM	lParam – Reserved.

Returns

LRESULT – Result of the message processing.

Describe This method adjusts the window's scale.

Definition at line 2282 of file Swnd.cpp.

OnShowWindow()

void SWindow::OnShowWindow ( BOOL bShow, UINT nStatus )

protected

Handles showing or hiding the window.

OnShowWindow

Parameters

BOOL	bShow – TRUE to show, FALSE to hide.
UINT	nStatus – Show status flags.

Returns

void

Describe This method is called when the window is shown or hidden.

Definition at line 2001 of file Swnd.cpp.

OnSize()

void SWindow::OnSize ( UINT nType, CSize size )

protected

Handles the resizing of the window.

OnSize

Parameters

UINT	nType – Resize type.
CSize	size – New size of the window.

Returns

void

Describe This method is called when the window is resized.

Definition at line 2844 of file Swnd.cpp.

OnStateChanged()

void SWindow::OnStateChanged ( DWORD dwOldState, DWORD dwNewState )

protectedvirtual

Called after the state of the window changes.

Parameters

dwOldState	The old state flags.
dwNewState	The new state flags.

Reimplemented in SButton.

Definition at line 3001 of file Swnd.cpp.

OnStateChanging()

void SWindow::OnStateChanging ( DWORD dwOldState, DWORD dwNewState )

protectedvirtual

Called before the state of the window changes.

Parameters

dwOldState	The old state flags.
dwNewState	The new state flags.

Reimplemented in SRadioBox.

Definition at line 2997 of file Swnd.cpp.

OnUpdateFloatPosition()

virtual void SWindow::OnUpdateFloatPosition ( const CRect & rcParent )

inlinevirtual

Update floating window position.

OnUpdateFloatPosition

Definition at line 1660 of file SWnd.h.

OnUpdateFont()

LRESULT SWindow::OnUpdateFont ( UINT uMsg, WPARAM wParam, LPARAM lParam )

protected

Handles updating the font of the window.

OnUpdateFont

Parameters

UINT	uMsg – Message identifier.
WPARAM	wParam – Font update parameter.
LPARAM	lParam – Reserved.

Returns

LRESULT – Result of the message processing.

Describe This method updates the font used by the window.

Definition at line 3171 of file Swnd.cpp.

PaintBackground()

void SWindow::PaintBackground	(	IRenderTarget *	pRT,
		LPRECT	pRc )

Draws the background content of the window.

PaintBackground

Parameters

IRenderTarget	* pRT – Target RenderTarget.
LPRECT	pRc – Target rectangle within the window.

Returns

void

Describe The target rectangle must lie within the window's bounds.

Definition at line 2673 of file Swnd.cpp.

PaintForeground()

void SWindow::PaintForeground	(	IRenderTarget *	pRT,
		LPRECT	pRc,
		SWindow *	pStartFrom = NULL )

Draws the foreground content of the window.

PaintForeground

Parameters

IRenderTarget	* pRT – Target RenderTarget.
LPRECT	pRc – Target rectangle within the window.
SWindow	*pStartFrom – Starting window for drawing; defaults to root.

Returns

void

Describe The target rectangle must lie within the window's bounds, excluding child windows.

Definition at line 2694 of file Swnd.cpp.

QueryInterface()

HRESULT SWindow::QueryInterface	(	REFGUID	id,
		IObjRef **	ppRet )

Queries an interface.

Parameters

id	Interface ID.
ppRet	Pointer to receive the interface pointer.

Returns

HRESULT indicating success or failure.

Definition at line 3572 of file Swnd.cpp.

RedrawRegion()

void SWindow::RedrawRegion	(	IRenderTarget *	pRT,
		IRegionS *	pRgn )

Renders the content of the window and its child windows onto the RenderTarget.

RedrawRegion

Parameters

IRenderTarget	* pRT – Target RenderTarget.
IRegion	* pRgn – Region to render; NULL renders the entire window.

Returns

void

Describe This method redraws the specified region or the entire window if no region is provided.

Definition at line 1422 of file Swnd.cpp.

RegisterDragDrop()

BOOL SWindow::RegisterDragDrop

(

IDropTarget *

pDragTarget

)

Registers a drop target for the window.

Parameters

pDragTarget

Pointer to the drop target.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3661 of file Swnd.cpp.

ReleaseCapture()

BOOL SWindow::ReleaseCapture

(

)

Releases the mouse capture from the window.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 2491 of file Swnd.cpp.

ReleaseRenderTarget()

void SWindow::ReleaseRenderTarget

(

IRenderTarget *

pRT

)

Releases the RenderTarget obtained via GetRenderTarget.

ReleaseRenderTarget

Parameters

IRenderTarget

* pRT – RenderTarget to release.

Returns

void

Describe This method ensures proper cleanup of the RenderTarget resources.

Definition at line 2372 of file Swnd.cpp.

RemoveChild()

BOOL SWindow::RemoveChild

(

SWindow *

pChild

)

Removes a child window from the window tree.

Parameters

pChild

Pointer to the child window to remove.

Returns

BOOL TRUE if successful; otherwise, FALSE.

The removed child will not be automatically released.

Definition at line 602 of file Swnd.cpp.

RemoveEvent()

BOOL SWindow::RemoveEvent

(

DWORD

dwEventID

)

Removes an event handler.

Parameters

dwEventID

Event ID.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3631 of file Swnd.cpp.

RemoveIChild()

BOOL SWindow::RemoveIChild

(

IWindow *

pChild

)

Removes a child window from the window tree.

Parameters

pChild

Pointer to the child window to remove.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3542 of file Swnd.cpp.

RequestRelayout() [1/2]

void SWindow::RequestRelayout

(

)

Requests a relayout of the window.

Definition at line 2225 of file Swnd.cpp.

RequestRelayout() [2/2]

void SWindow::RequestRelayout ( SWND hSource, BOOL bSourceResizable )

virtual

Request layout update.

RequestRelayout

Reimplemented in SRootWindow.

Definition at line 2230 of file Swnd.cpp.

SDispatchMessage()

void SWindow::SDispatchMessage	(	UINT	uMsg,
		WPARAM	wParam = 0,
		LPARAM	lParam = 0 )

Dispatches a message to the window.

Parameters

uMsg	Message identifier.
wParam	Additional message-specific information.
lParam	Additional message-specific information.

Definition at line 388 of file Swnd.cpp.

SetAlpha()

void SWindow::SetAlpha

(

BYTE

byAlpha

)

Sets the alpha value for the window.

Parameters

byAlpha

Alpha value.

Definition at line 2596 of file Swnd.cpp.

SetAnimation()

void SWindow::SetAnimation

(

IAnimation *

animation

)

Sets an animation for the window.

Parameters

animation

Pointer to the animation object.

Sets the next animation to play for this view. If you want the animation to play immediately, use startAnimation(android.view.animation.Animation) instead. This method provides allows fine-grained control over the start time and invalidation, but you must make sure that 1) the animation has a start time set, and 2) the view's parent (which controls animations on its children) will be invalidated when the animation is supposed to start.

Parameters

animation

The next animation, or null.

Definition at line 2512 of file Swnd.cpp.

SetAttribute()

virtual HRESULT SWindow::SetAttribute ( const SNS::SStringW & strAttribName, const SNS::SStringW & strValue, BOOL bLoading = FALSE )

inlineprotectedvirtual

Reimplemented in SCheckBox, SRadioBox, SRealWnd, SRichEdit, SScrollBar, SSpinButtonCtrl, SSplitPane, SSplitWnd, SStackPage, SStackView, SSwitch, STabCtrl, STabPage, and STileView.

Definition at line 2476 of file SWnd.h.

SetCapture()

SWND SWindow::SetCapture

(

)

Sets the window to capture the mouse.

Returns

Window handle of the window that now has capture.

Definition at line 2484 of file Swnd.cpp.

SetCaretPos()

void SWindow::SetCaretPos	(	int	x,
		int	y )

Sets the caret position.

Parameters

x	X-coordinate of the caret position.
y	Y-coordinate of the caret position.

Definition at line 3077 of file Swnd.cpp.

SetCheck()

void SWindow::SetCheck

(

BOOL

bCheck

)

Sets the check state of the window.

Parameters

bCheck

TRUE to check the window, FALSE to uncheck.

Definition at line 671 of file Swnd.cpp.

SetContainer()

void SWindow::SetContainer

(

ISwndContainer *

pContainer

)

Sets the container for the window.

Parameters

pContainer

Pointer to the container object.

Definition at line 689 of file Swnd.cpp.

SetEventMute()

void SWindow::SetEventMute

(

BOOL

bMute

)

Sets the event mute state.

Parameters

bMute

Flag to indicate if events should be muted.

Definition at line 324 of file Swnd.cpp.

SetFocus()

void SWindow::SetFocus

(

)

Sets the focus to the window.

Definition at line 2620 of file Swnd.cpp.

SetIOwner()

void SWindow::SetIOwner

(

IWindow *

pOwner

)

Sets the owner window.

Parameters

pOwner

Pointer to the owner window.

Definition at line 3552 of file Swnd.cpp.

SetLayoutParam()

BOOL SWindow::SetLayoutParam

(

ILayoutParam *

pLayoutParam

)

Sets the layout parameter object for the window.

Parameters

pLayoutParam

Pointer to the layout parameter object.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3342 of file Swnd.cpp.

SetMatrix() [1/2]

void SWindow::SetMatrix

(

const IMatrix *

mtx

)

Sets the transformation matrix for the window.

Parameters

mtx	Pointer to the transformation matrix.

Definition at line 2607 of file Swnd.cpp.

SetMatrix() [2/2]

void SWindow::SetMatrix

(

const SMatrix &

mtx

)

Sets the transformation matrix for the window.

Parameters

mtx	Reference to the transformation matrix.

Definition at line 2589 of file Swnd.cpp.

SetMsgHandled()

void SWindow::SetMsgHandled

(

BOOL

bHandled

)

Sets the message handled flag.

Parameters

bHandled

Message handled flag.

Definition at line 212 of file Swnd.cpp.

SetOwner()

void SWindow::SetOwner

(

SWindow *

pOwner

)

Sets the owner of the window.

Parameters

pOwner

Pointer to the new owner window.

Definition at line 701 of file Swnd.cpp.

SetSwndProc()

void SWindow::SetSwndProc

(

FunSwndProc

swndProc

)

Sets the window procedure.

Parameters

swndProc

Window procedure function.

Definition at line 3611 of file Swnd.cpp.

SetTimer()

BOOL SWindow::SetTimer	(	char	id,
		UINT	uElapse )

Sets a timer for the window.

Parameters

id	Timer ID.
uElapse	Elapse time in milliseconds.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 477 of file Swnd.cpp.

SetToolTipText()

void SWindow::SetToolTipText

(

LPCTSTR

pszText

)

Sets the tooltip text for the window.

Parameters

pszText

Tooltip text to set.

Definition at line 3241 of file Swnd.cpp.

SetToolTipTextU8()

void SWindow::SetToolTipTextU8

(

LPCSTR

pszText

)

Sets the tooltip text using a UTF-8 string.

Parameters

pszText

UTF-8 tooltip text to set.

Definition at line 3252 of file Swnd.cpp.

SetUserData()

ULONG_PTR SWindow::SetUserData

(

ULONG_PTR

uData

)

Sets the user data for the window.

Parameters

uData

User data to set.

Returns

Previous user data.

Definition at line 470 of file Swnd.cpp.

SetVisible()

void SWindow::SetVisible	(	BOOL	bVisible,
		BOOL	bUpdate = FALSE )

Sets the visibility of the window.

Parameters

bVisible	TRUE to make the window visible, FALSE to hide it.
bUpdate	Flag to update the window state.

Definition at line 655 of file Swnd.cpp.

SetWindowPath()

void SWindow::SetWindowPath	(	IPathS *	pPath,
		BOOL	bRedraw = TRUE )

Sets the window path.

Parameters

pPath	Pointer to the path object.
bRedraw	Flag to redraw the window.

Definition at line 3131 of file Swnd.cpp.

SetWindowRgn()

void SWindow::SetWindowRgn	(	IRegionS *	pRgn,
		BOOL	bRedraw = TRUE )

Sets the window region.

Parameters

pRgn	Pointer to the region object.
bRedraw	Flag to redraw the window.

Definition at line 3114 of file Swnd.cpp.

SetWindowText()

void SWindow::SetWindowText

(

LPCTSTR

lpszText

)

Sets the window text.

Parameters

lpszText

Text to set.

Definition at line 311 of file Swnd.cpp.

SetWindowTextU8()

void SWindow::SetWindowTextU8

(

LPCSTR

lpszText

)

Sets the window text using a UTF-8 string.

Parameters

lpszText

UTF-8 text to set.

Definition at line 318 of file Swnd.cpp.

ShowCaret()

void SWindow::ShowCaret

(

BOOL

bShow

)

Shows or hides the caret.

Parameters

bShow

Flag to indicate if the caret should be shown.

Definition at line 3066 of file Swnd.cpp.

SSendMessage()

LRESULT SWindow::SSendMessage	(	UINT	uMsg,
		WPARAM	wParam = 0,
		LPARAM	lParam = 0,
		BOOL *	pbMsgHandled = NULL )

Sends a message to the window.

Parameters

uMsg	Message identifier.
wParam	Additional message-specific information.
lParam	Additional message-specific information.
pbMsgHandled	Pointer to receive the message handled flag.

Returns

Result of the message processing.

Definition at line 364 of file Swnd.cpp.

StartAnimation()

void SWindow::StartAnimation

(

IAnimation *

animation

)

Starts an animation for the window.

Parameters

animation

Pointer to the animation object.

Start the specified animation now.

Parameters

animation

the animation to start now

Definition at line 2549 of file Swnd.cpp.

SubscribeEvent()

BOOL SWindow::SubscribeEvent	(	DWORD	evtId,
		const IEvtSlot *	pSlot )

Subscribes to an event.

Parameters

evtId	Event ID.
pSlot	Event slot.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3562 of file Swnd.cpp.

SwndFromPoint() [1/2]

SWND SWindow::SwndFromPoint ( CPoint & pt, BOOL bIncludeMsgTransparent = false ) const

virtual

Get window from point.

SwndFromPoint

Parameters

pt	Point coordinates
bIncludeMsgTransparent	Include message transparency

Returns

SWND Window handle

Reimplemented in SFrame.

Definition at line 1051 of file Swnd.cpp.

SwndFromPoint() [2/2]

SWND SWindow::SwndFromPoint	(	POINT *	pt,
		BOOL	bIncludeMsgTransparent = FALSE )

Retrieves the window handle at a specified point.

Parameters

pt	Point to test.
bIncludeMsgTransparent	Flag to include message-transparent windows.

Returns

Window handle at the specified point.

SwndProc()

BOOL SWindow::SwndProc	(	UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam,
		LRESULT *	lResult )

Processes a window message.

Parameters

uMsg	Message identifier.
wParam	Additional message-specific information.
lParam	Additional message-specific information.
lResult	Pointer to receive the result of the message processing.

Returns

TRUE if the message was handled, FALSE otherwise.

Definition at line 3592 of file Swnd.cpp.

TestMainThread()

void SWindow::TestMainThread ( )

protected

Tests if the current thread is the main UI thread.

Definition at line 345 of file Swnd.cpp.

tr()

SStringW SWindow::tr ( const SStringW & strSrc ) const

virtual

Translation function.

tr

Parameters

strSrc

Source string

Returns

SStringW Translated string

Definition at line 940 of file Swnd.cpp.

TransformPoint()

void SWindow::TransformPoint

(

CPoint &

pt

)

const

Transforms a point based on the current window's transformation matrix.

TransformPoint

Parameters

CPoint

&pt – Point to transform.

Returns

void

Describe Applies the transformation matrix to the point.

Definition at line 1377 of file Swnd.cpp.

TransformPointEx()

void SWindow::TransformPointEx

(

CPoint &

pt

)

const

Extends the transformation of a point.

TransformPointEx

Parameters

CPoint

&pt – Point to transform.

Returns

void

Describe Provides additional transformations beyond the basic TransformPoint.

Definition at line 1395 of file Swnd.cpp.

UnlockUpdate()

void SWindow::UnlockUpdate

(

)

Unlocks updates to the window.

Definition at line 1497 of file Swnd.cpp.

UnregisterDragDrop()

BOOL SWindow::UnregisterDragDrop

(

)

Unregisters a drop target for the window.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3666 of file Swnd.cpp.

UnsubscribeEvent()

BOOL SWindow::UnsubscribeEvent	(	DWORD	evtId,
		const IEvtSlot *	pSlot )

Unsubscribes from an event.

Parameters

evtId	Event ID.
pSlot	Event slot.

Returns

TRUE if successful, FALSE otherwise.

Definition at line 3567 of file Swnd.cpp.

Update()

void SWindow::Update

(

BOOL

bForce = FALSE

)

Updates the window.

Parameters

bForce

Flag to force the update.

Definition at line 1430 of file Swnd.cpp.

UpdateCacheMode()

void SWindow::UpdateCacheMode ( )

protected

Updates the cache mode for the window.

Definition at line 2866 of file Swnd.cpp.

UpdateChildrenPosition()

void SWindow::UpdateChildrenPosition

(

)

Updates the position of child windows.

Definition at line 2189 of file Swnd.cpp.

UpdateLayout()

void SWindow::UpdateLayout

(

)

Updates the layout of the window.

Definition at line 2251 of file Swnd.cpp.

UpdateToolTip()

BOOL SWindow::UpdateToolTip ( CPoint pt, SwndToolTipInfo & tipInfo )

virtual

Handle tooltip updates.

OnUpdateToolTip

Reimplemented in SMCListView, STabCtrl, STabPage, STileView, and STreeView.

Definition at line 277 of file Swnd.cpp.

Friends And Related Symbol Documentation

FocusSearch

friend class FocusSearch

friend

Definition at line 293 of file SWnd.h.

SGridLayout

friend class SGridLayout

friend

Definition at line 294 of file SWnd.h.

SHostProxy

friend class SHostProxy

friend

Definition at line 297 of file SWnd.h.

SHostWnd

friend class SHostWnd

friend

Definition at line 291 of file SWnd.h.

SLinearLayout

friend class SLinearLayout

friend

Definition at line 295 of file SWnd.h.

SouiLayout

friend class SouiLayout

friend

Definition at line 296 of file SWnd.h.

SWindowRepos

friend class SWindowRepos

friend

Definition at line 290 of file SWnd.h.

SwndContainerImpl

friend class SwndContainerImpl

friend

Definition at line 292 of file SWnd.h.

SwndLayoutBuilder

friend class SwndLayoutBuilder

friend

Definition at line 289 of file SWnd.h.

Member Data Documentation

m_animation

SAutoRefPtr<IAnimation> SWindow::m_animation

protected

Animation object.

Definition at line 2630 of file SWnd.h.

m_animationHandler

SAnimationHandler SWindow::m_animationHandler

protected

Animation handler for the window.

Definition at line 2631 of file SWnd.h.

m_attrStorage

SAutoRefPtr<IAttrStorage> SWindow::m_attrStorage

protected

Attribute storage object.

Definition at line 2646 of file SWnd.h.

m_bCacheDirty

BOOL SWindow::m_bCacheDirty

protected

Indicates if the cache is dirty.

Definition at line 2612 of file SWnd.h.

m_bCacheDraw

BOOL SWindow::m_bCacheDraw

protected

Indicates if the window content is cached.

Definition at line 2611 of file SWnd.h.

m_bClipClient

BOOL SWindow::m_bClipClient

protected

Flag indicating if client area clipping is enabled.

Definition at line 2607 of file SWnd.h.

m_bDisable

BOOL SWindow::m_bDisable

protected

Disabled state of the window.

Definition at line 2605 of file SWnd.h.

m_bDisplay

BOOL SWindow::m_bDisplay

protected

Indicates if the window occupies space when hidden.

Definition at line 2606 of file SWnd.h.

m_bDrawFocusRect

BOOL SWindow::m_bDrawFocusRect

protected

Indicates if the default focus rectangle should be drawn.

Definition at line 2610 of file SWnd.h.

m_bFloat

BOOL SWindow::m_bFloat

protected

Indicates if the window position is fixed.

Definition at line 2578 of file SWnd.h.

m_bFocusable

BOOL SWindow::m_bFocusable

protected

Indicates if the window can receive focus.

Definition at line 2609 of file SWnd.h.

m_bHoverAware

BOOL SWindow::m_bHoverAware

protected

Hover-aware state flag.

Definition at line 2615 of file SWnd.h.

m_bLayeredWindow

BOOL SWindow::m_bLayeredWindow

protected

Indicates if the window is layered.

Definition at line 2613 of file SWnd.h.

m_bMsgHandled

BOOL SWindow::m_bMsgHandled

protected

Message handled flag.

Definition at line 2616 of file SWnd.h.

m_bMsgTransparent

BOOL SWindow::m_bMsgTransparent

protected

Message transparency flag. TRUE means no message processing.

Definition at line 2608 of file SWnd.h.

m_bVisible

BOOL SWindow::m_bVisible

protected

Visibility state of the window.

Definition at line 2604 of file SWnd.h.

m_cachedRT

SAutoRefPtr<IRenderTarget> SWindow::m_cachedRT

protected

Cached render target for the window.

Definition at line 2619 of file SWnd.h.

m_caret

SAutoRefPtr<ICaret> SWindow::m_caret

protected

Caret object.

Definition at line 2647 of file SWnd.h.

m_clipPath

SAutoRefPtr<IPathS> SWindow::m_clipPath

protected

Clipping path for the window.

Definition at line 2621 of file SWnd.h.

m_clipRgn

SAutoRefPtr<IRegionS> SWindow::m_clipRgn

protected

Clipping region for the window.

Definition at line 2620 of file SWnd.h.

m_crColorize

COLORREF SWindow::m_crColorize

protected

Colorization value for the window.

Definition at line 2628 of file SWnd.h.

m_dwState

BOOL SWindow::m_dwState

protected

State of the window during rendering.

Definition at line 2603 of file SWnd.h.

m_evtSet

SEventSet SWindow::m_evtSet

protected

Event set for the window.

Definition at line 2581 of file SWnd.h.

m_funSwndProc

FunSwndProc SWindow::m_funSwndProc

protected

Custom window procedure.

Definition at line 2649 of file SWnd.h.

m_isAnimating

bool SWindow::m_isAnimating

protected

Flag indicating if the window is currently animating.

Definition at line 2633 of file SWnd.h.

m_isDestroying

bool SWindow::m_isDestroying

protected

Flag indicating if the window is being destroyed.

Definition at line 2634 of file SWnd.h.

m_isLoading

BOOL SWindow::m_isLoading

protected

Loading state flag.

Definition at line 2614 of file SWnd.h.

m_layoutDirty

LayoutDirtyType SWindow::m_layoutDirty

protected

Layout dirty state.

Definition at line 2618 of file SWnd.h.

m_nChildrenCount

UINT SWindow::m_nChildrenCount

protected

Number of child windows.

Definition at line 2592 of file SWnd.h.

m_nMaxWidth

SLayoutSize SWindow::m_nMaxWidth

protected

Maximum width of the window when calculating size automatically.

Definition at line 2626 of file SWnd.h.

m_nUpdateLockCnt

int SWindow::m_nUpdateLockCnt

protected

Update lock count. Prevents Invalidate messages to the host when locked.

Definition at line 2601 of file SWnd.h.

m_pBgSkin

SAutoRefPtr<ISkinObj> SWindow::m_pBgSkin

protected

Background skin object.

Definition at line 2622 of file SWnd.h.

m_pContainer

ISwndContainer* SWindow::m_pContainer

protected

Pointer to the container object.

Definition at line 2580 of file SWnd.h.

m_pCurMsg

SWNDMSG* SWindow::m_pCurMsg

protected

Pointer to the current message being processed.

Definition at line 2594 of file SWnd.h.

m_pFirstChild

SWindow* SWindow::m_pFirstChild

protected

Pointer to the first child window.

Definition at line 2588 of file SWnd.h.

m_pGetRTData

PGETRTDATA SWindow::m_pGetRTData

protected

Pointer to GETRT data.

Definition at line 2644 of file SWnd.h.

m_pLastChild

SWindow* SWindow::m_pLastChild

protected

Pointer to the last child window.

Definition at line 2589 of file SWnd.h.

m_pLayout

SAutoRefPtr<ILayout> SWindow::m_pLayout

protected

Pointer to the layout object.

Definition at line 2583 of file SWnd.h.

m_pLayoutParam

SAutoRefPtr<ILayoutParam> SWindow::m_pLayoutParam

protected

Pointer to the layout parameter object.

Definition at line 2584 of file SWnd.h.

m_pNcSkin

SAutoRefPtr<ISkinObj> SWindow::m_pNcSkin

protected

Non-client area skin object.

Definition at line 2623 of file SWnd.h.

m_pNextSibling

SWindow* SWindow::m_pNextSibling

protected

Pointer to the next sibling window.

Definition at line 2590 of file SWnd.h.

m_pOwner

SWindow* SWindow::m_pOwner

protected

Pointer to the owner window.

Definition at line 2586 of file SWnd.h.

m_pParent

SWindow* SWindow::m_pParent

protected

Pointer to the parent window.

Definition at line 2587 of file SWnd.h.

m_pPrevSibling

SWindow* SWindow::m_pPrevSibling

protected

Pointer to the previous sibling window.

Definition at line 2591 of file SWnd.h.

m_strText

STrText SWindow::m_strText

protected

Window text.

Definition at line 2597 of file SWnd.h.

m_strToolTipText

STrText SWindow::m_strToolTipText

protected

Tooltip text for the window.

Definition at line 2598 of file SWnd.h.

m_strTrCtx

SStringW SWindow::m_strTrCtx

protected

Translation context. If empty, uses the container's translation context.

Definition at line 2599 of file SWnd.h.

m_style

SwndStyle SWindow::m_style

protected

Window style, a collection of window attributes.

Definition at line 2596 of file SWnd.h.

m_swnd

SWND SWindow::m_swnd

protected

Member variables representing various properties of the window.

Window handle.

Definition at line 2577 of file SWnd.h.

m_transform

STransformation SWindow::m_transform

protected

Transformation object.

Definition at line 2632 of file SWnd.h.

m_uData

ULONG_PTR SWindow::m_uData

protected

User data for the window.

Definition at line 2624 of file SWnd.h.

m_uZorder

UINT SWindow::m_uZorder

protected

Z-order of the window.

Definition at line 2600 of file SWnd.h.

---

The documentation for this class was generated from the following files:

• SOUI/include/core/SWnd.h
• SOUI/src/core/Swnd.cpp
